> >>SLP-1.7÷2.5-11 SIRIO

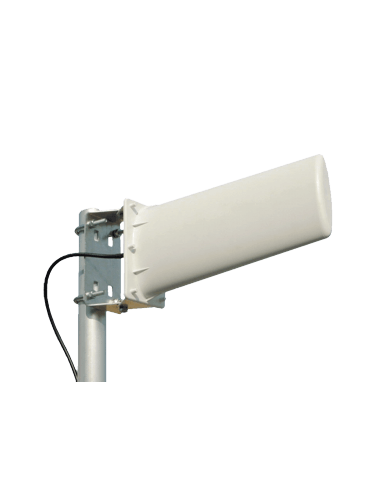

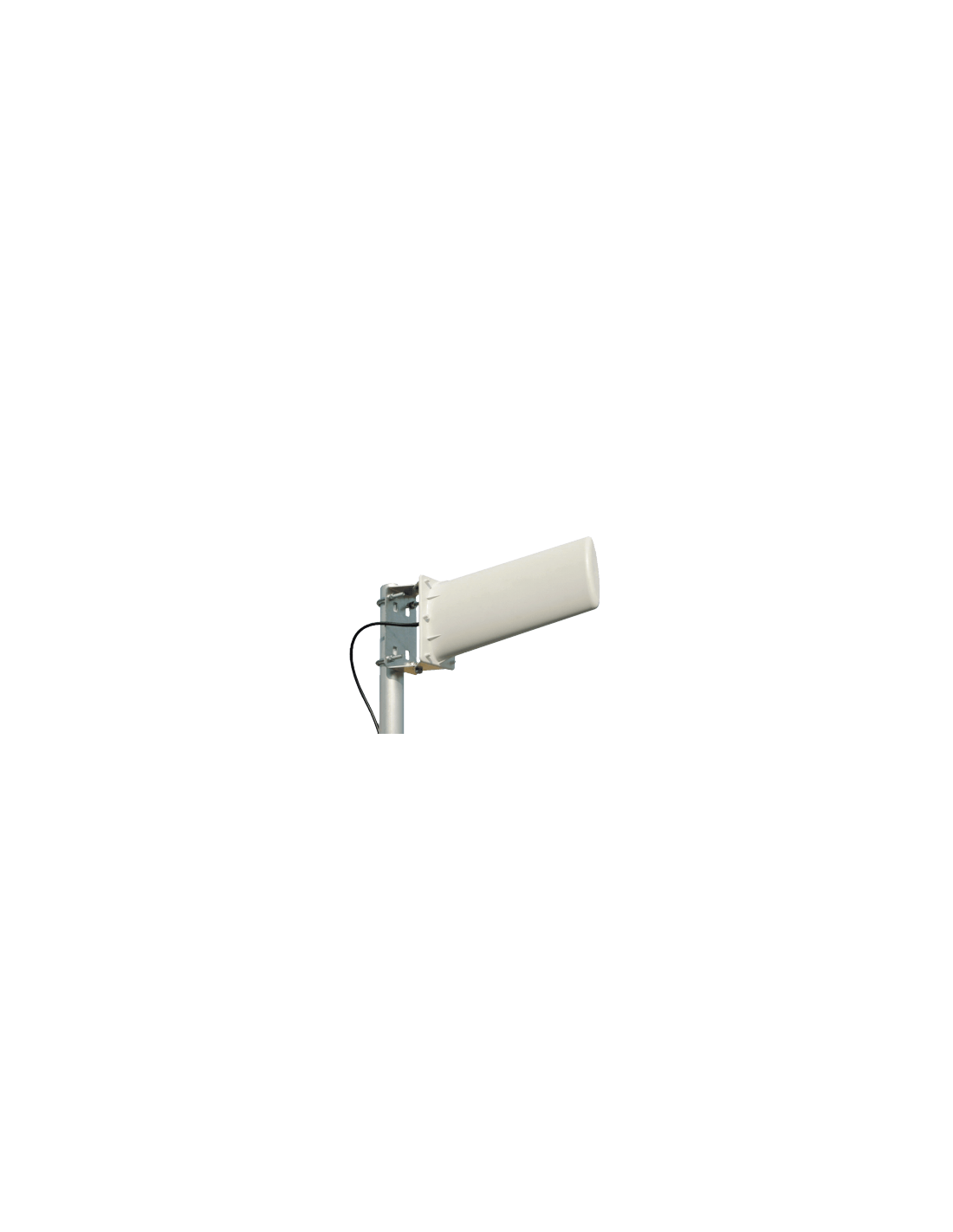

SLP-1.7÷2.5-11 SIRIO View larger

SLP-1.7÷2.5-11 SIRIO

VS 000915

New product

BASE  ANTENNA 1700-2500 MHz /

GSM-1800, 3G-UMTS, WiFi-2.4GHz, DEC /

345 x 135 x 73 mm

- No tuning required -

More details

70,00 € tax incl.

More info

Electrical Data:
Type: Log periodic
Radiation: Directional
Polarization: Linear vertical
Frequency range: 1700-2500 MHz No tuning required
Systems: GSM-1800, 3G-UMTS, WiFi-2.4GHz, DECT
Gain: 9 dBd – 11.1 dBi
Max Power: 50 W (CW)
Grounding protection: DC-Ground
Connector: SMA-female
Mechanical Data:
Materials: Aluminium, Brass, Stainless steel, Thermoplastic UV stabilized
Dimensions (approx): 345 x 135 x 73 mm / 1.13 x 0.44 x 0.24 ft
Weight (approx): 400 gr / 0.88 lb
Mounting type: On-Mast, On-Wall

Related Products

Download

PRODUCT MANUAL SLP-1.7÷2.5-11

Download (794.16k)
