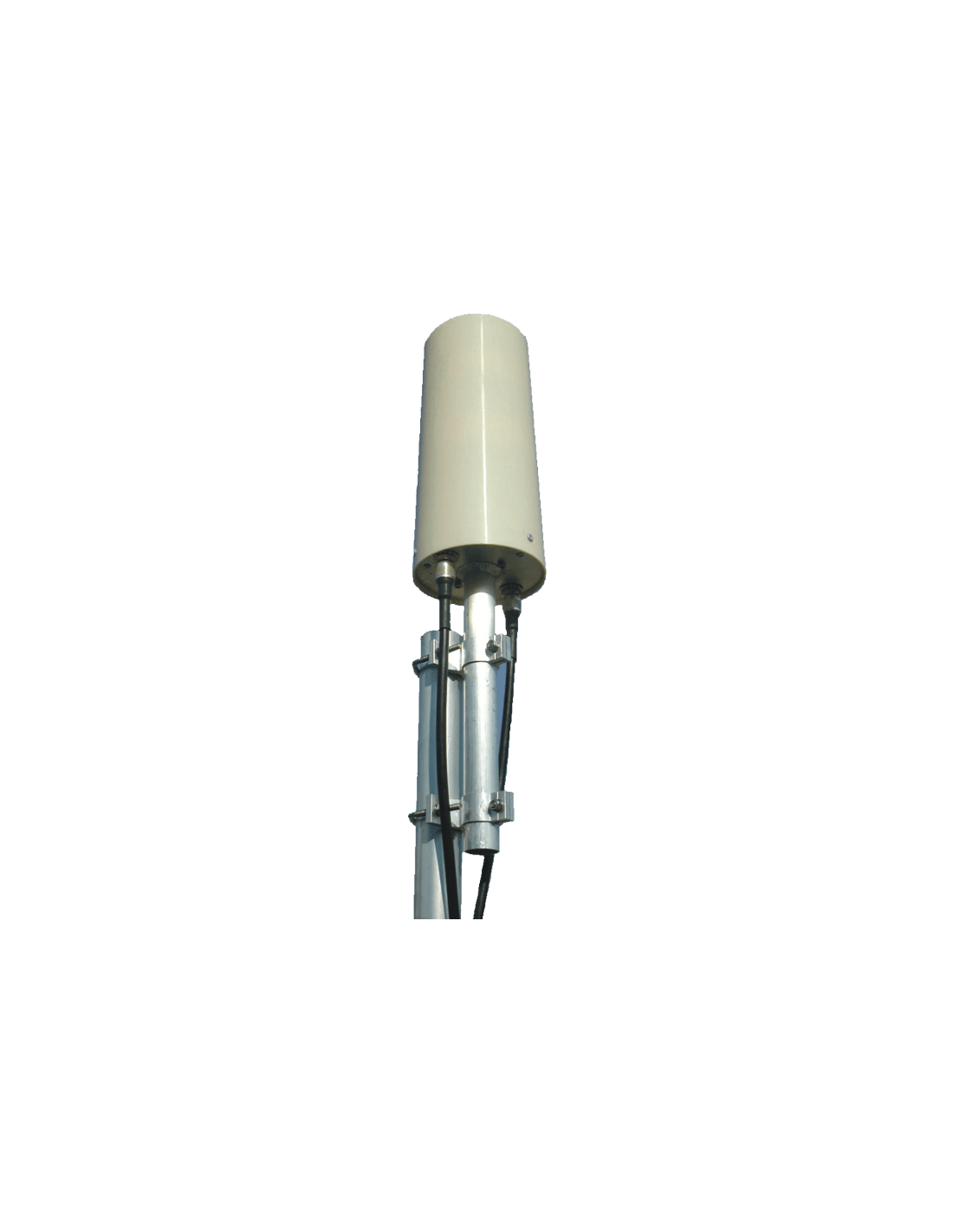

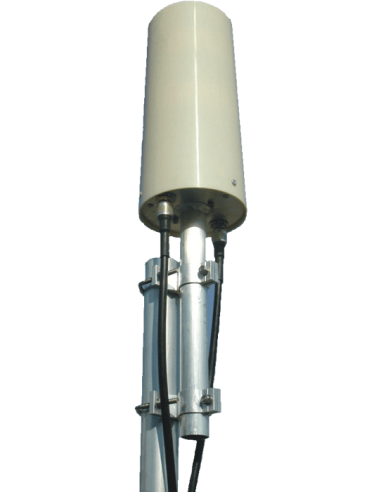

> >>SMS-2.4×2-8 SIRIO
SMS-2.4×2-8 SIRIO View larger

SMS-2.4×2-8 SIRIO

New product

BASE ANTENNA WLAN

2.4-2.485 GHz @ SWR ≤ 1.5 /

2 separate /

600 x Ø136 mm

More details

145,00 € tax incl.

More info

Electrical Data:
Type: Multi sector array
Radiation: Directional
Polarization: Linear vertical
Frequency range: 2.4-2.485 GHz @ SWR ≤ 1.5 No tuning required
Systems: WiFi-2.4GHz
Gain: 5.3 dBd – 7.4 dBi
Max Power: 20 W (CW)
Grounding protection: DC-Ground
Connector: N-female
Mechanical Data:
Materials: Aluminium, Stainless steel, Thermoplastic UV stabilized, PCB
Dimensions (approx): 600 x Ø136 mm / 1.97 x Ø0.45 ft
Weight (approx): 1150 gr / 2.54 lb
Mounting type: On-Mast

Download

PRODUCT MANUAL SMS-2.4×2-8

Download (751.3k)
