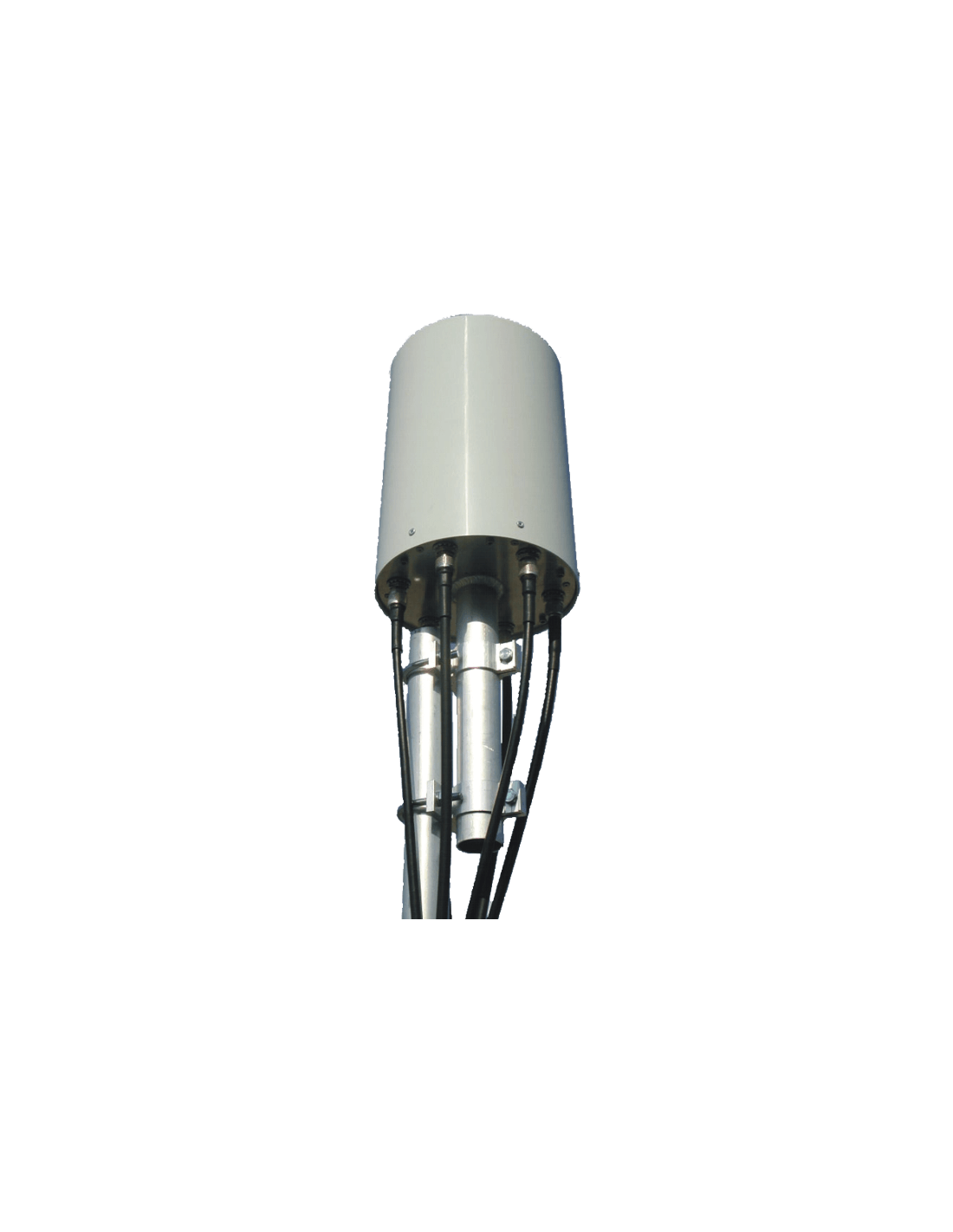

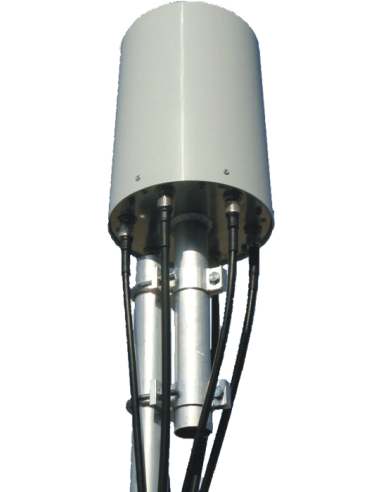

SMS-2.4×6-12  SIRIO View larger

SMS-2.4×6-12 SIRIO

New product

BASE ANTENNA WLAN

2.4-2.485 GHz @ SWR ≤ 1.5 /

6 separate /

600 x Ø216 mm

More details

298,00 € tax incl.

More info

Type: Multi sector array
Radiation: Directional
Polarization: Linear vertical
Frequency range: 2.4-2.485 GHz @ SWR ≤ 1.5 No tuning required
Systems: WiFi-2.4GHz
Gain: 9.9 dBd – 12 dBi
Max Power: 20 W (CW)
Grounding protection: DC-Ground
Connector: N-female
Mechanical Data:
Materials: Aluminium, Stainless steel, Thermoplastic UV stabilized, PCB
Dimensions (approx): 600 x Ø216 mm / 1.97 x Ø0.71 ft
Weight (approx): 3150 gr / 6.94 lb
Mounting type: On-Mast
