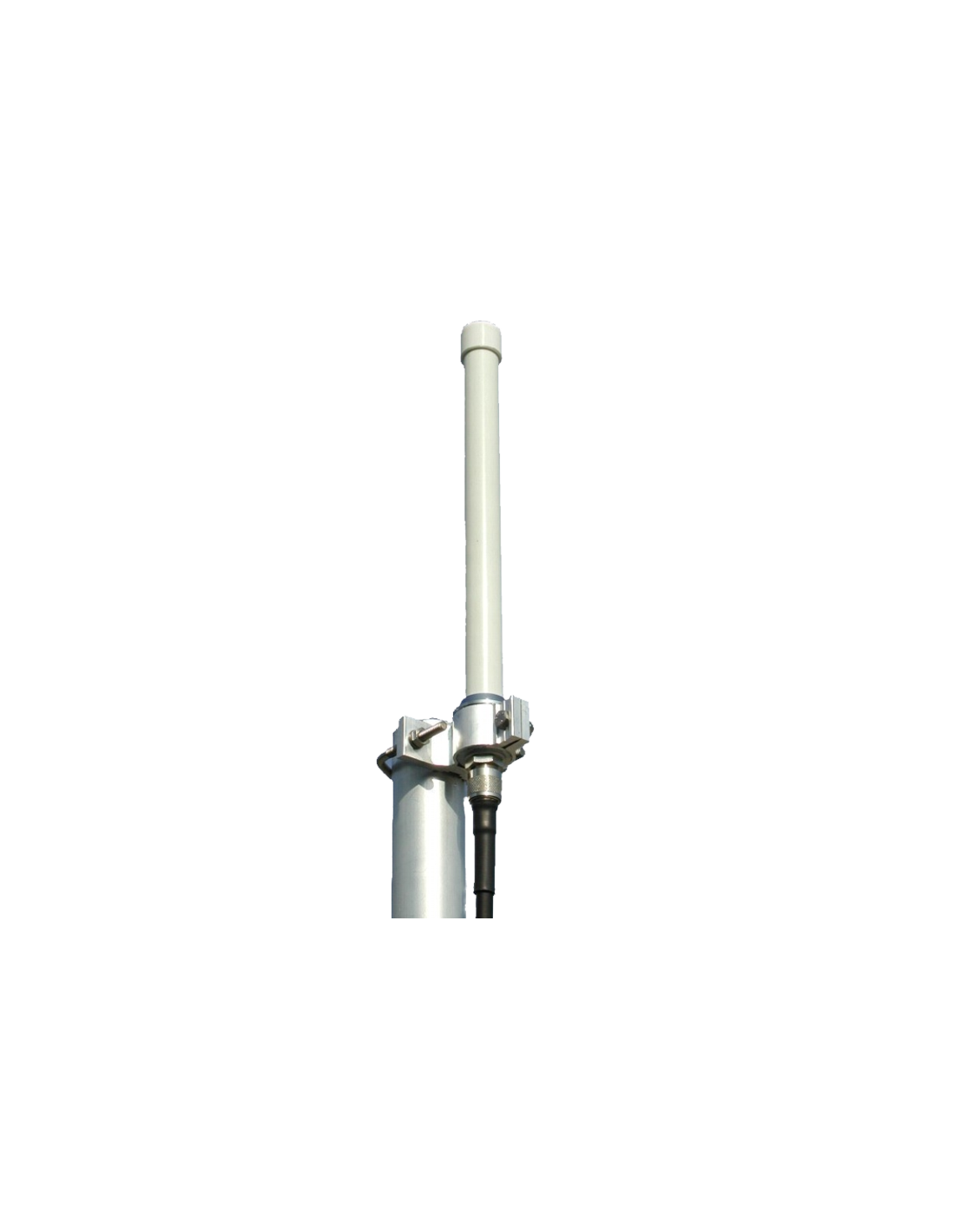

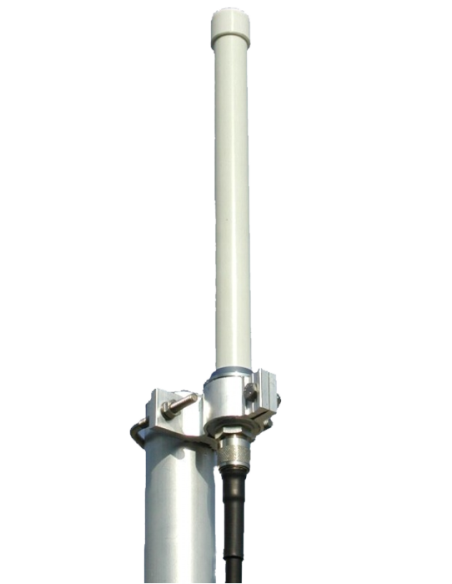

SCO-2.4-6 MARINER SIRIO

VS 002145

New product

MARINER ANTENNA

More details

82,00 € tax incl.

More info

Features:

- Marine antenna, Omnidirectional
- Mono-band, High-gain
- DC-ground protection
- High quality PCB radiator protected by fiberglass tube
- For WLAN system





Electrical Data
-
Type: 3x1/2λ dipole array
-
Frequency range: 2.3-2.5 MHz for WLAN system
-
Impedance: 50Ω
-
Radiation (H-plane): 360° omnidirectional
-
Radiation (E-plane): beamwidth @ -3 dB = 22°
-
Radiation angle: 0°
-
Polarization: linear vertical
-
Gain: 3.9 dBd - 6 dBi
-
SWR in bandwidth: ≤ 1.5
-
Max. power (CW) @30°C: 20 Watts
-
Grounding protection: All metal part are DC-grounded, the inner conductor shows a DC-short
-
Cable Type / Lenght: RG 58 / 5.5m
-

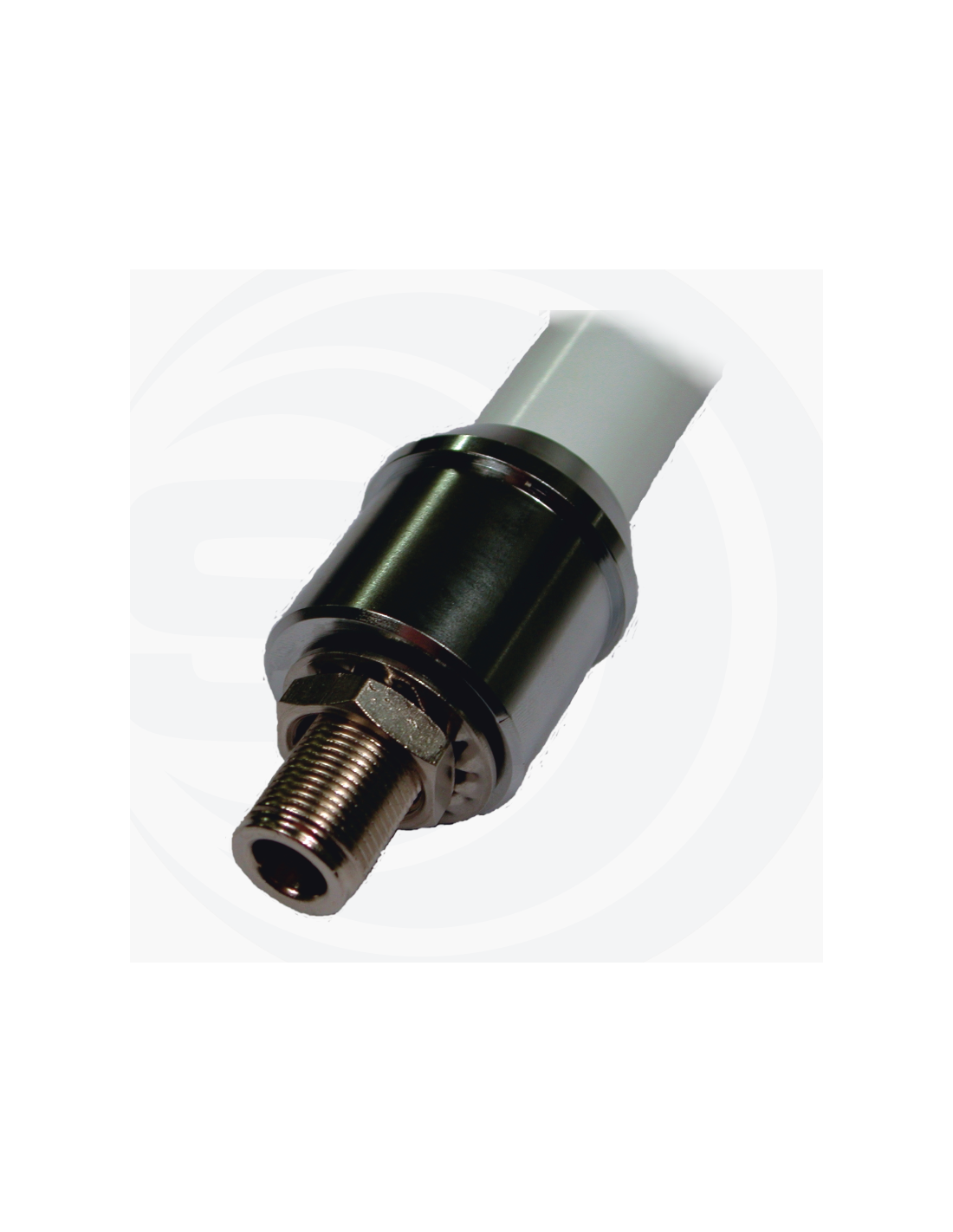

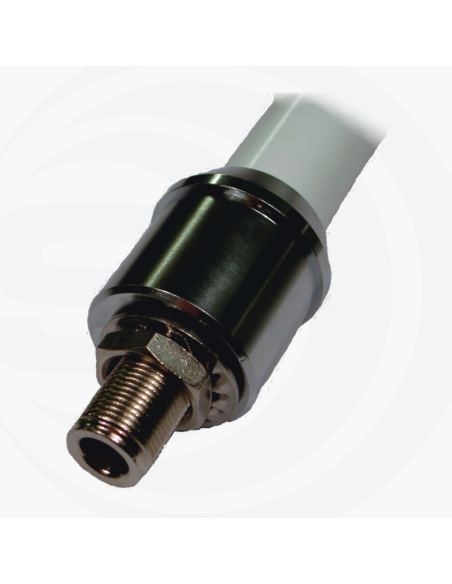

Connector: SMA male, other type on request

Mechanical Data
-
Materials: Stainless Steel, Chromed Brass
-
Radome Material: White Fiberglass
-
Height (approx.): 340 mm
-
Weight (approx.): 470 gr
-
Operating temperature: -40° C to +80°
