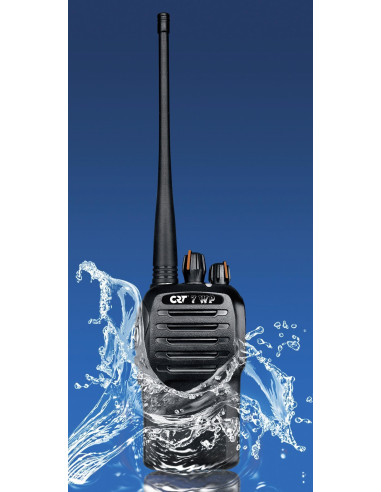

CRT 7WP PMR VHF COM

Reference: PM 000435

Condition: New product

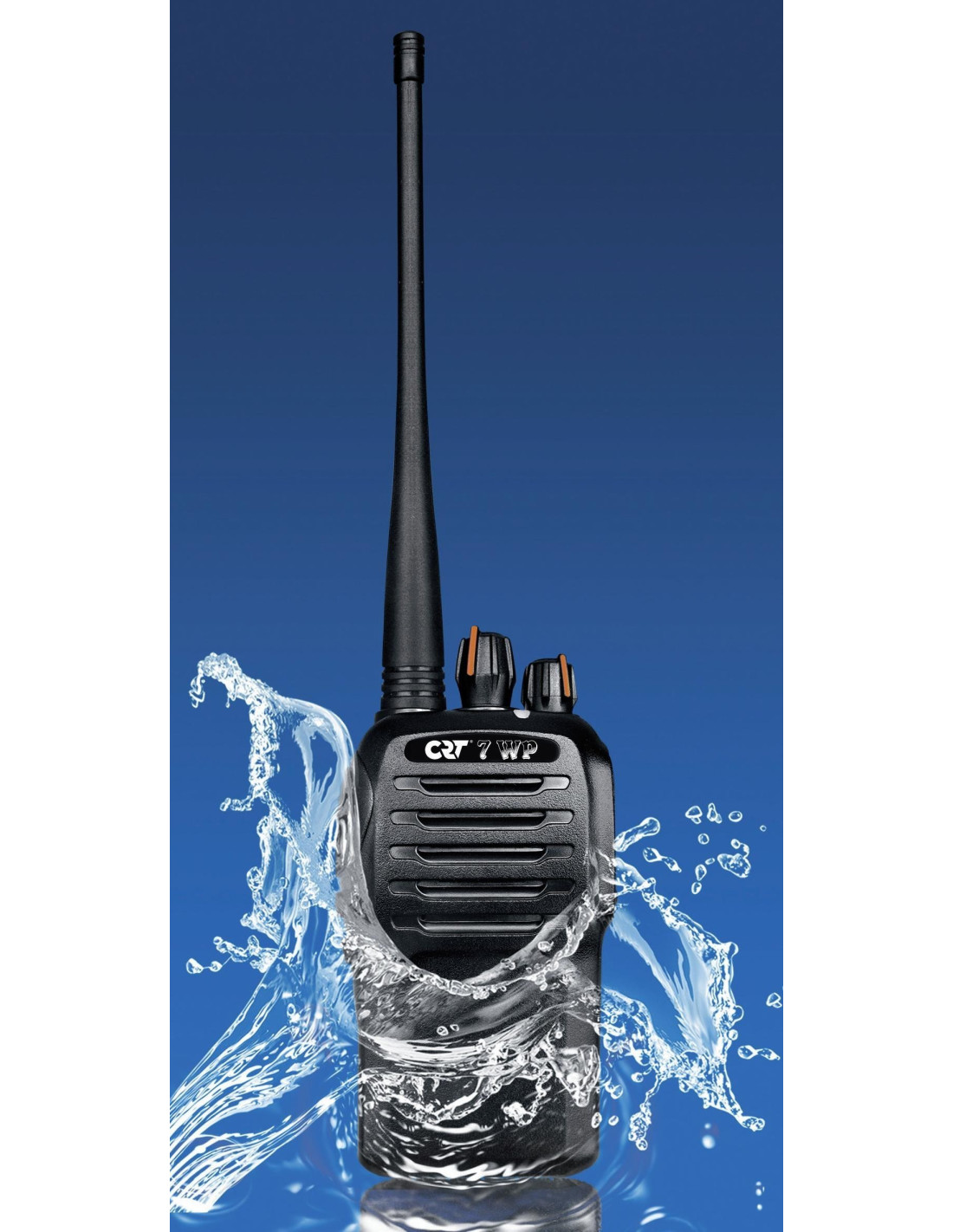

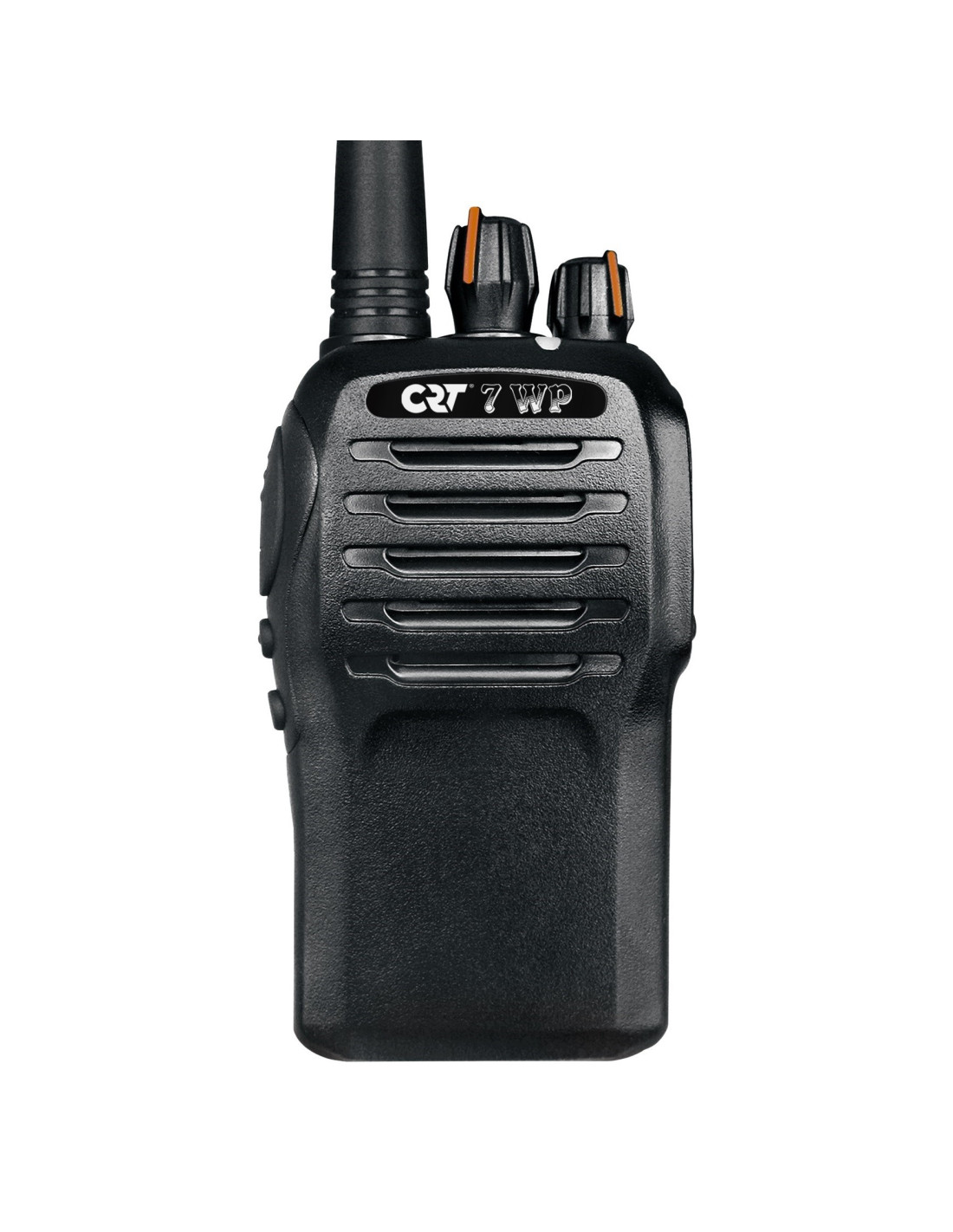

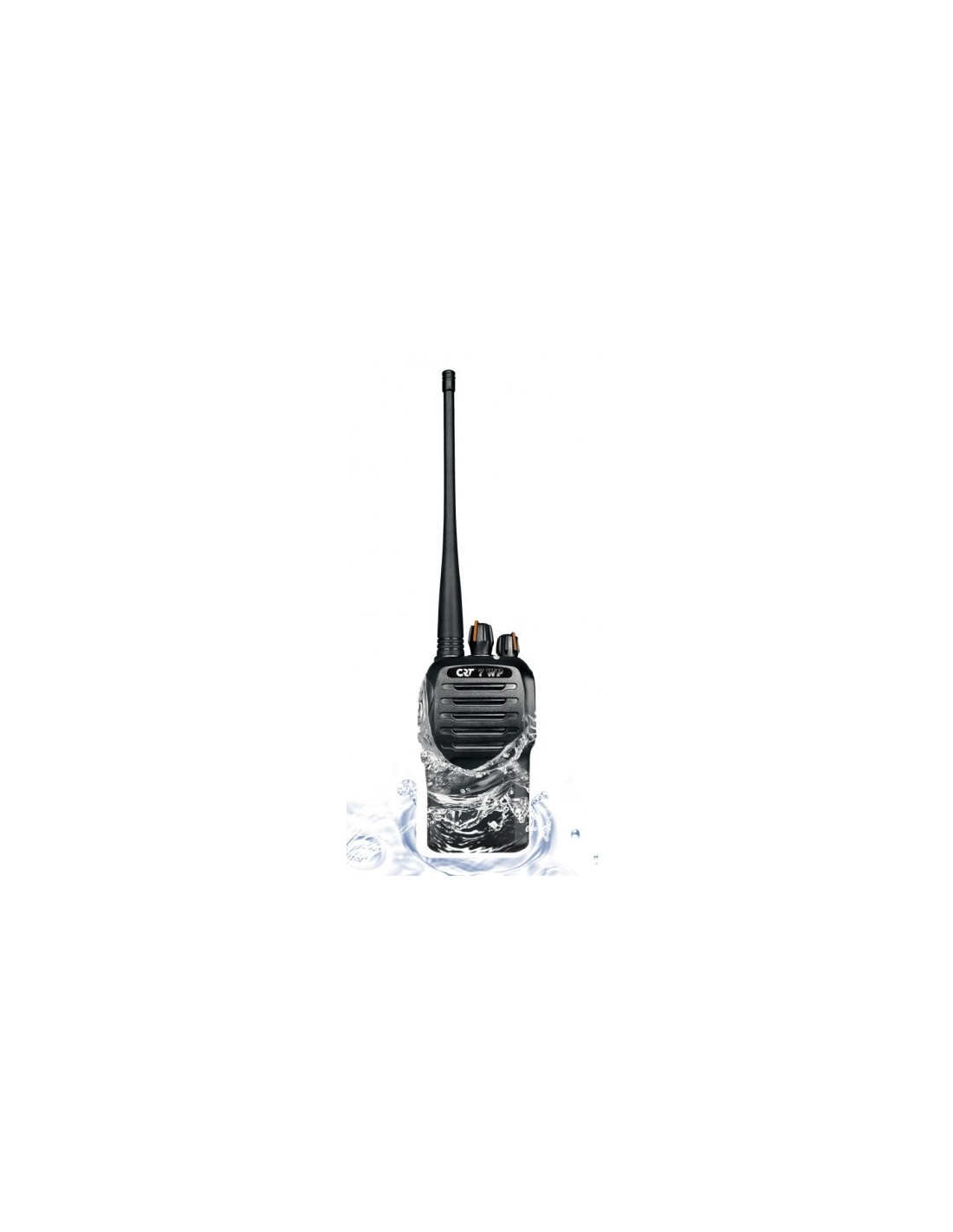

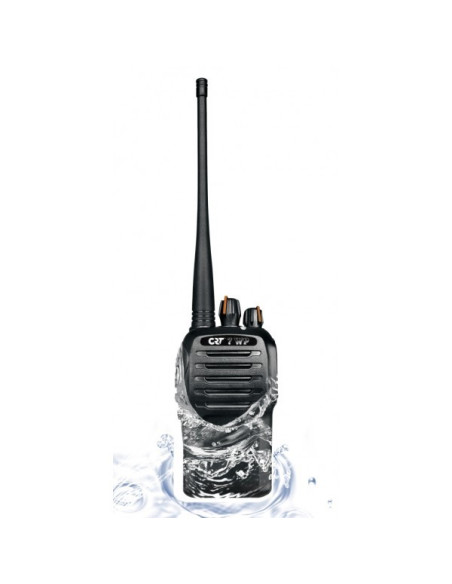

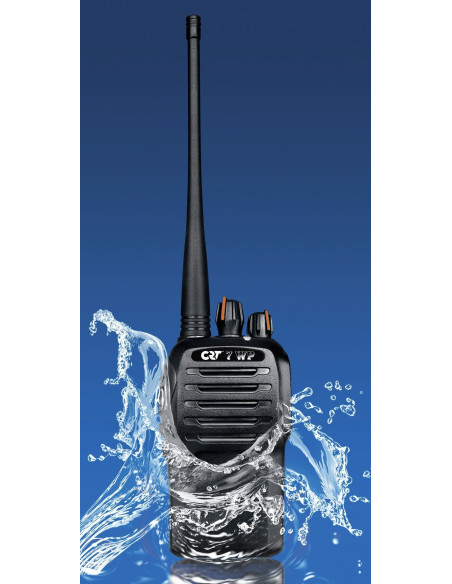

TALKY WALKY PMR VHF COM IP67

(Frequency FFVL possible 143.9875Mhz)

*PROFESSIONAL TALKY LEGAL*

IP67 Report n° TW1011029

2.15.0.0

More details

Product Videos

Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

Data sheet

Norm	USE SUBJECT TO A PAY LICENSE (ARCEP)
IP67 Waterproof	Full protection to intrusion of solids and liquids; completely sealed (can be accidentally immersed for 30 min in a water 1m) Report n° TW1011029
Frequency range	VHF COM 136 - 174 mHz (Fréquences FFVL possible 143.9875Mhz)
Power	0.5 Watts / 1.5 Watts / 5 Watts ERP
Range	Estimated from 5 to 5 km depending on ground configuration
Input voltage	7.4 Volts DC
Memories	128 channels programming 136 - 174 mHz following your assigned frequencies (must be programmed by a professional)
Channel spacing	12.5kHz / 20kHz / 25kHz
Bandwidth	12.5kHz(narrow band) / 20kHz(middle band) / 25kHz (wide band)
Step of increment	5kHz / 6.25kHz
SCRAMBLER	Yes : encryption method (speech privacy)
SQUELCH	Yes : elimination of background noise (squelch levels setup, squelch off/temporary squelch off)
AUDIO OUTPUT	1000 mW / 10%
CTCSS / DCS (encoder/decoder)	50 CTCSS / 232 DCS : sub-audio code to activate repeater like selective tone
PTT / ID	Yes : to program a sequence of different tones for each caller
VOX function	Yes : this feature triggers your microphone sound (hands free)
TOT function	Yes : time out timer
SCAN function	Yes : automatic search of busy channels
COMPANDER function	Yes : TX with a clear voice
WHISPER function	Yes : increased sensitivity of the microphone
TX/OFF function	Yes : forbidding emission
BCLO function	Yes : busy Channel Lock
REVERSE function	Yes : the current channel RX frequency will be switched to TX frequency
TALK AROUND function	Yes : switch RX/TX frequencies and CTCSS/DCS code to avoid using repetear
Various functions	Priority scan setup + channel selector knob lockout + Battery Save (possible setting) + voice prompt (channel, level : squelch, battery capacity, power) + channel scan skip + temporary deletion of the interfering channel ect ...
Bonus	High strength metal frame Aluminum
Structure	ABS case and aluminum chassis injected
Options	Programming cable
Programmable by software	Oui -- prix final selon programmation demandée par client --
Battery	Li-ion 1600 mAh (high capacity)
Connection	CRT K type
Antenna	15 cm / SMA-Female

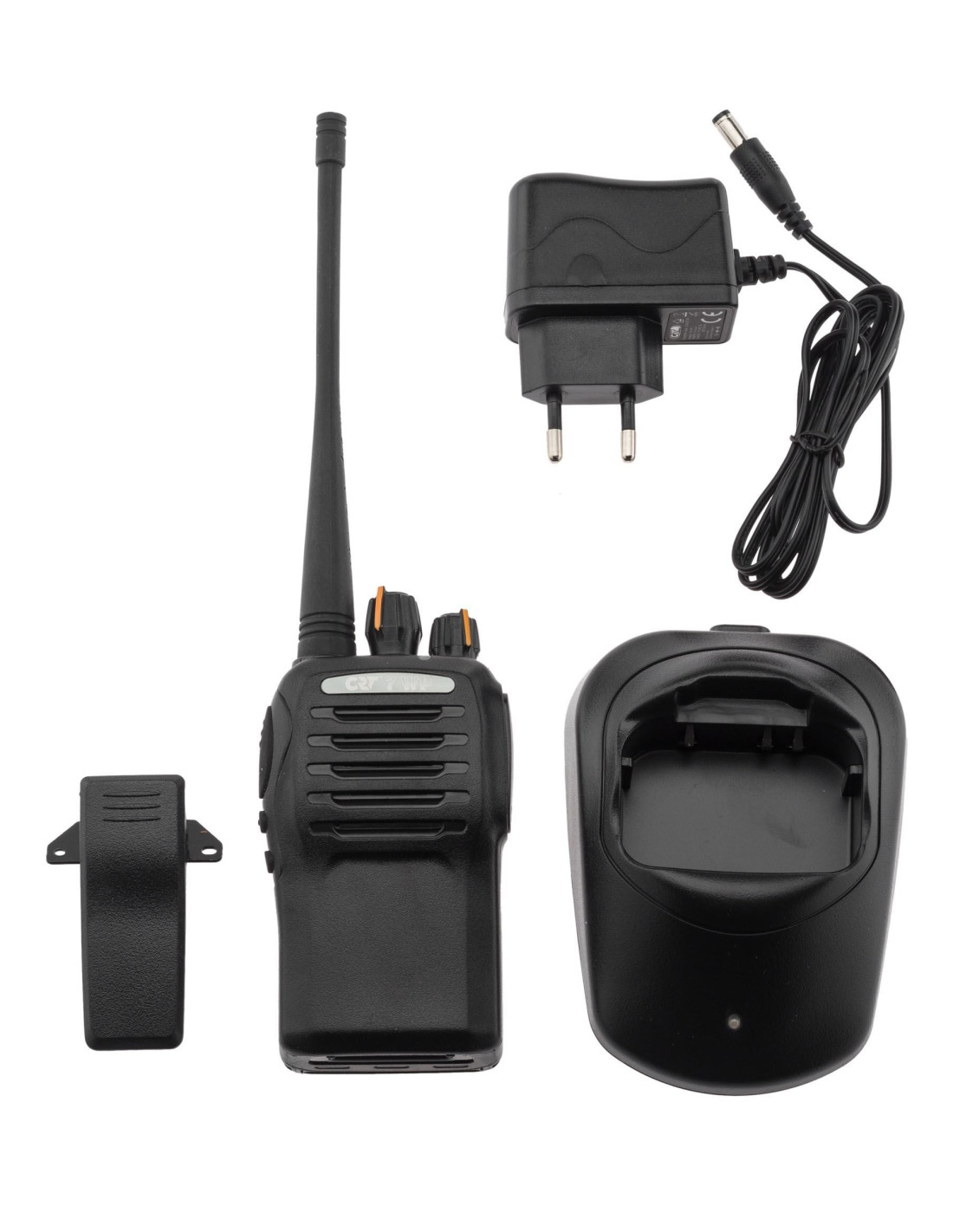

Deliver with	Desktop charger, battery, antenna, strap for neck, belt clip
Size	260 x 60 x 35 mm (with antenna and battery)
Weight	208 gr (with antenna and battery)
Guaranty	2 years
