HP 2070 R USA SIRIO

VS 002735

New product

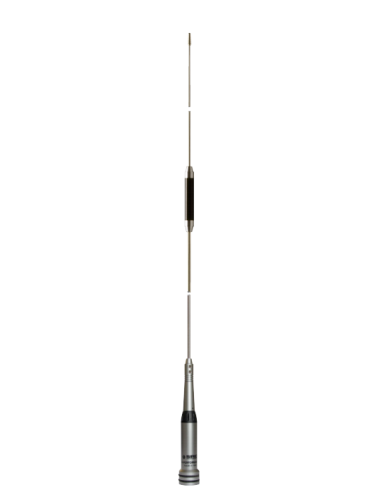

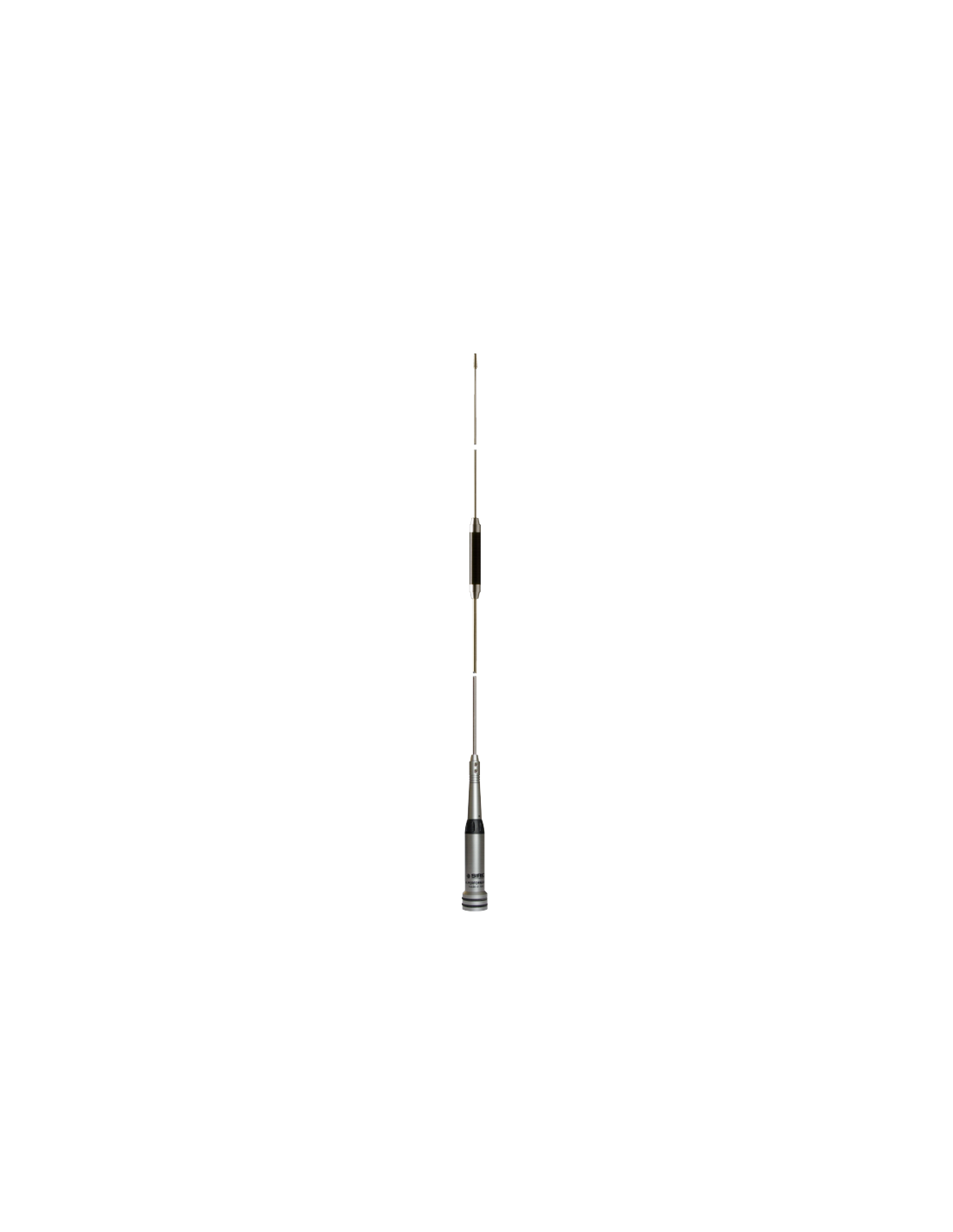

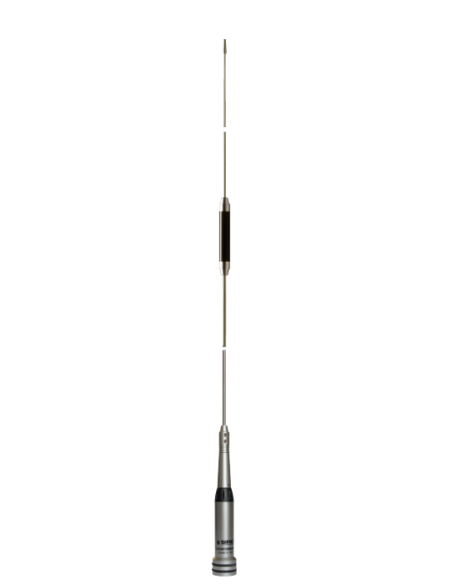

DUALBAND MOBILE ANTENNA

VHF: 143-149MHz 1/2λ /

UHF: 440-450MHz 2x 5/8λ Colinear /

Version for USA ham band (146 & 445 MHz) /

1000 mm

More details

55,00 € tax incl.

More info

Electrical Data:
Type: VHF: 1/2 λ
UHF: 2 x 5/8 λ Colinear
Radiation: Omnidirectional
Polarization: Linear vertical
Frequency range: VHF: 143-149 MHz
UHF: 440-450 MHz
Systems: 2m-HAM, 70cm-HAM, ORBCOMM M2M, TETRA
Gain: VHF 0.6 dB UHF 4.6 dB ref. to a λ/4 whip
Max Power: VHF: 150 W (CW)
UHF: 100 W (CW)
Grounding protection: DC-Ground

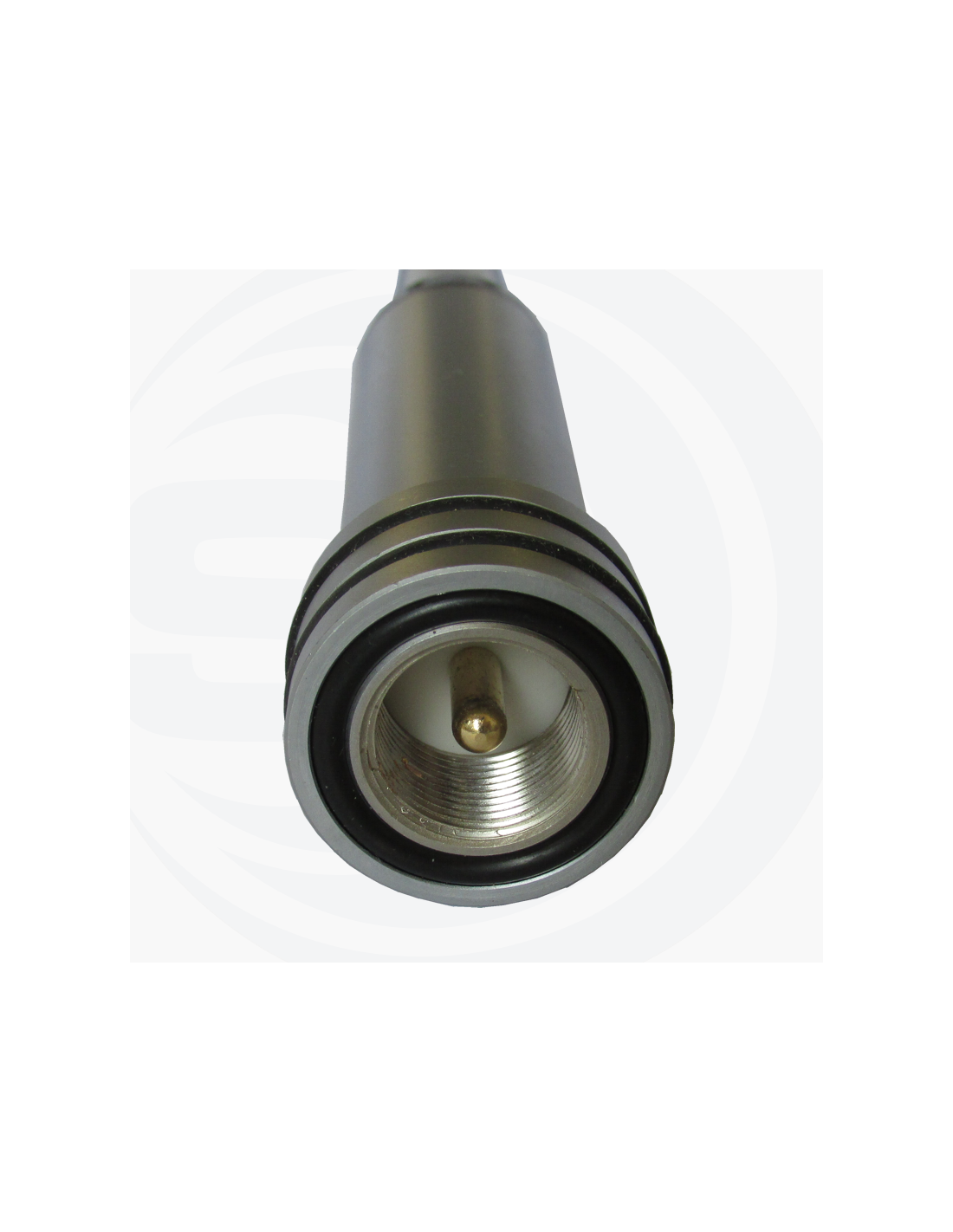

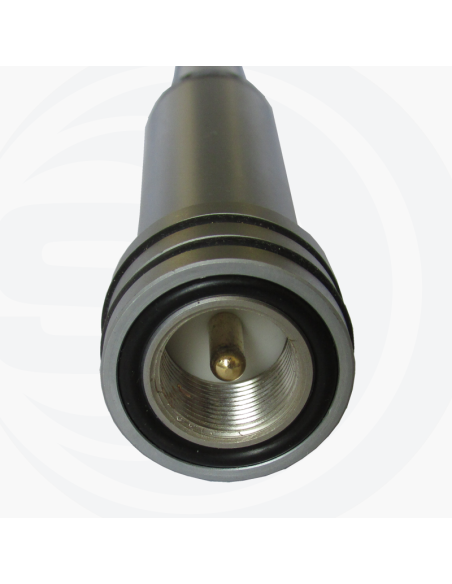

Connector: UHF-male (PL-259)
Mechanical Data:
Materials: Brass, Stainless Steel 17/7 PH, Nylon
Height (approx):
1000 mm / 3.28 ft
Weight (approx):
300 gr / 0.66 lb

Related Products

Download

PRODUCT MANUAL HP 2070 R USA

Download (1.63M)
