VS 002535
Features:
– Unique LED PCB that ligth up when transmit
– CB & 10m Mobile antennas
– Very High power handling capability
– Tunable from 27 to 30 MHz
– Protection from static discharges DC-Ground
– 17/7 PH tapered stainless steel whip
– Whip detachable for car-wash

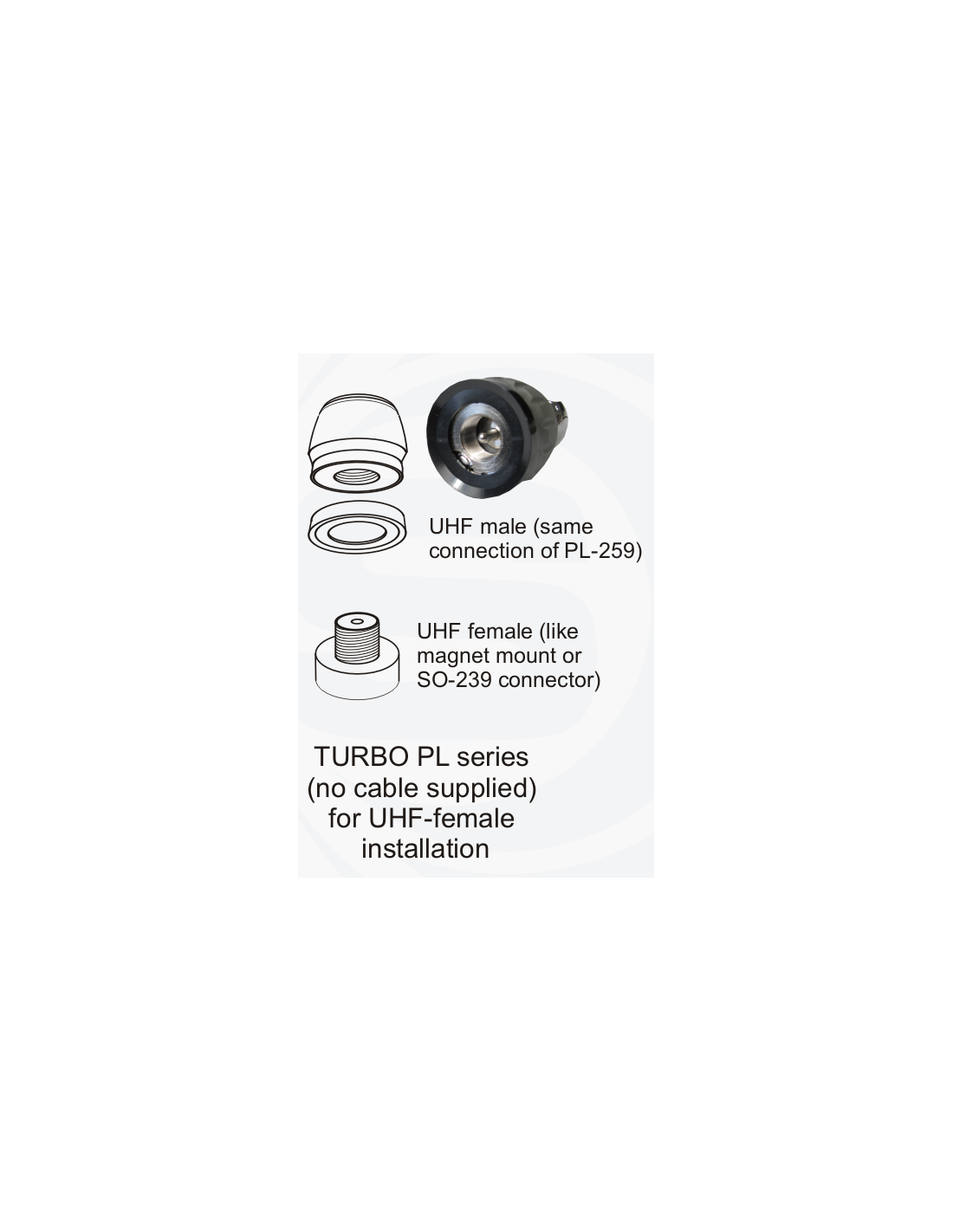

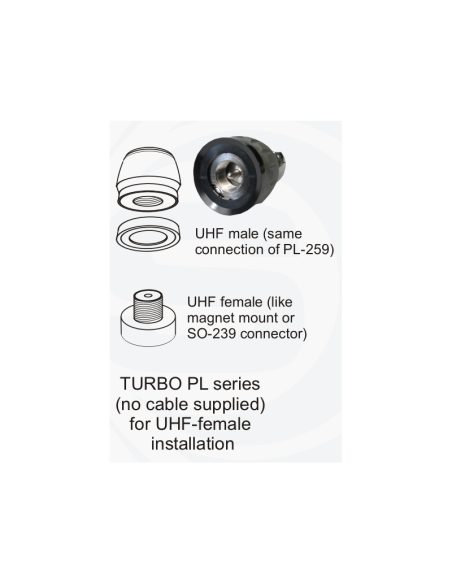

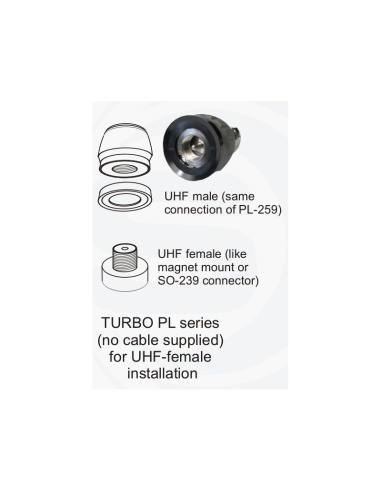

– Suitable for magnetic mount installation
– Hi-power cable available (for hole mounting only)
Electrical Data:
| Type: | Base loaded |
| Radiation: | Omnidirectional |
| Polarization: | Linear vertical |
| Frequency range: | 27 … 30 MHz Tunable |
| Systems: | CB 27MHz, 10m-HAM |
| Bandwidth: | ≥ 2MHz @ SWR ≤ 2 |

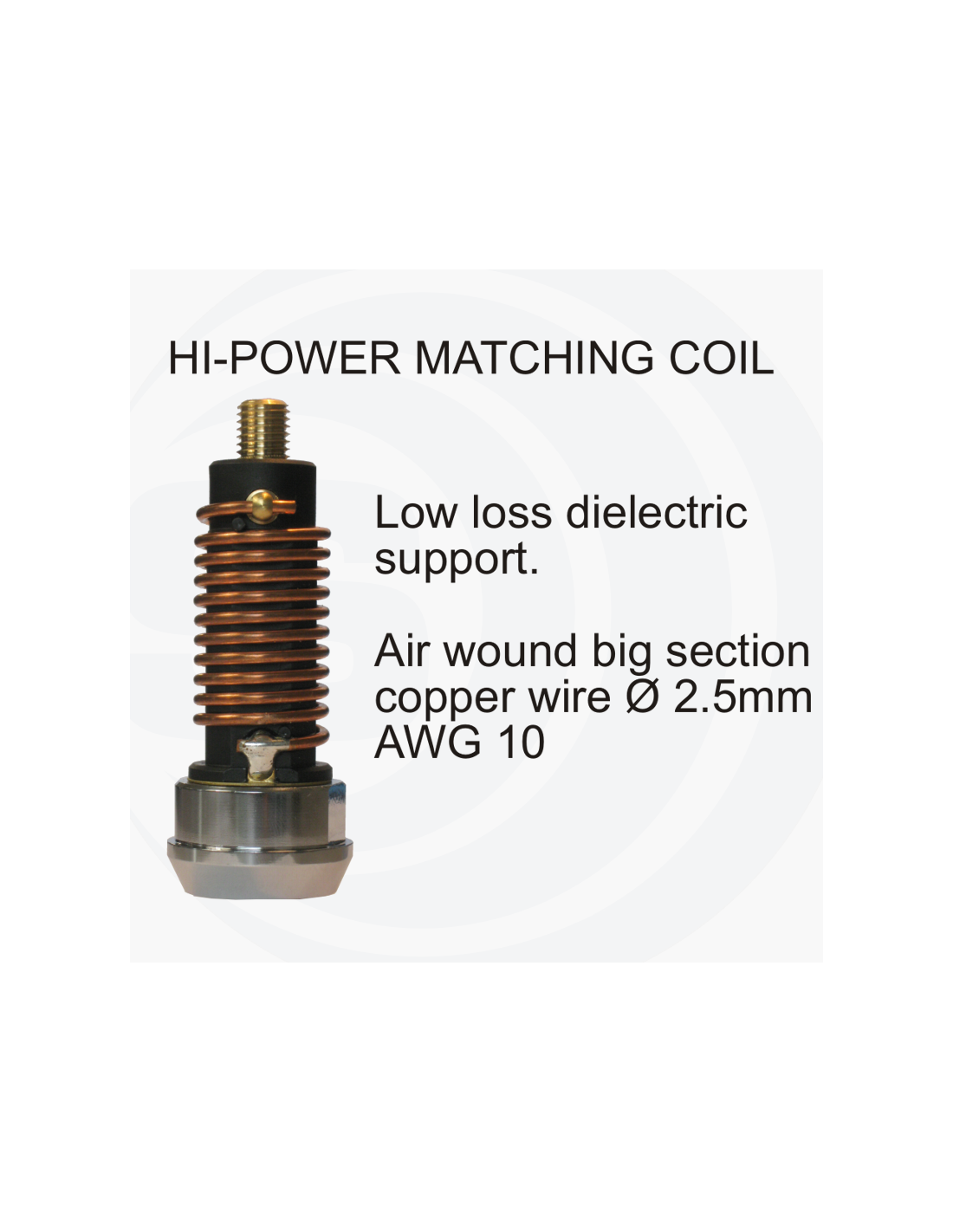

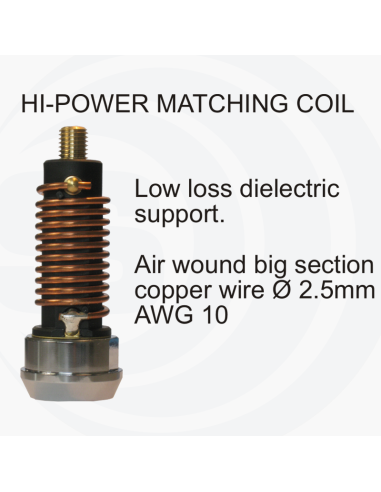

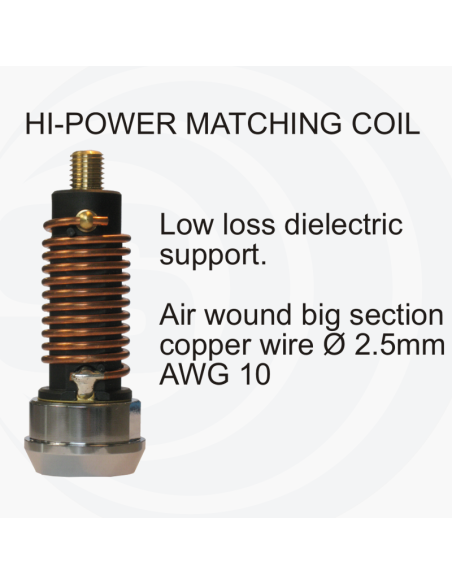

| Max Power: | 1500 Watts (CW) continuous 5000 Watts (CW) short time |
| Grounding protection: | DC-Ground |
| Cable lenght / type: |
|
| Connector: |
|
Mechanical Data:
| Materials: | Copper, Chromed brass, Stainless Steel 17/7 PH, Thermoplastic UV stabilized |
| Height (approx): | 1965 mm / 6.45 ft |
| Weight (approx): | 650 gr / 1.43 lb |
| Mounting type: |
|
