VS 000630
Features:
| - | CB & 10m Mobile antennas |
| - | Very High power handling capability |
| - | Tunable from 27 to 28.5 MHz |
| - | Protection from static discharges DC-Ground |
| - | 17/7 PH tapered stainless steel whip |
| - | Whip detachable for car-wash |
| - | Suitable for magnetic mount installation |
|
|
Electrical Data:
| Type: | Base loaded |
| Radiation: | Omnidirectional |
| Polarization: | Linear vertical |
| Frequency range: | 27 … 30 MHz Tunable |
| Systems: | CB 27MHz, 10m-HAM |
| Bandwidth: | ≥ 2MHz @ SWR ≤ 2 |
| Max Power: | 1500 Watts (CW) continuous 5000 Watts (CW) short time |
| Grounding protection: | DC-Ground |
| Cable lenght / type: |
|

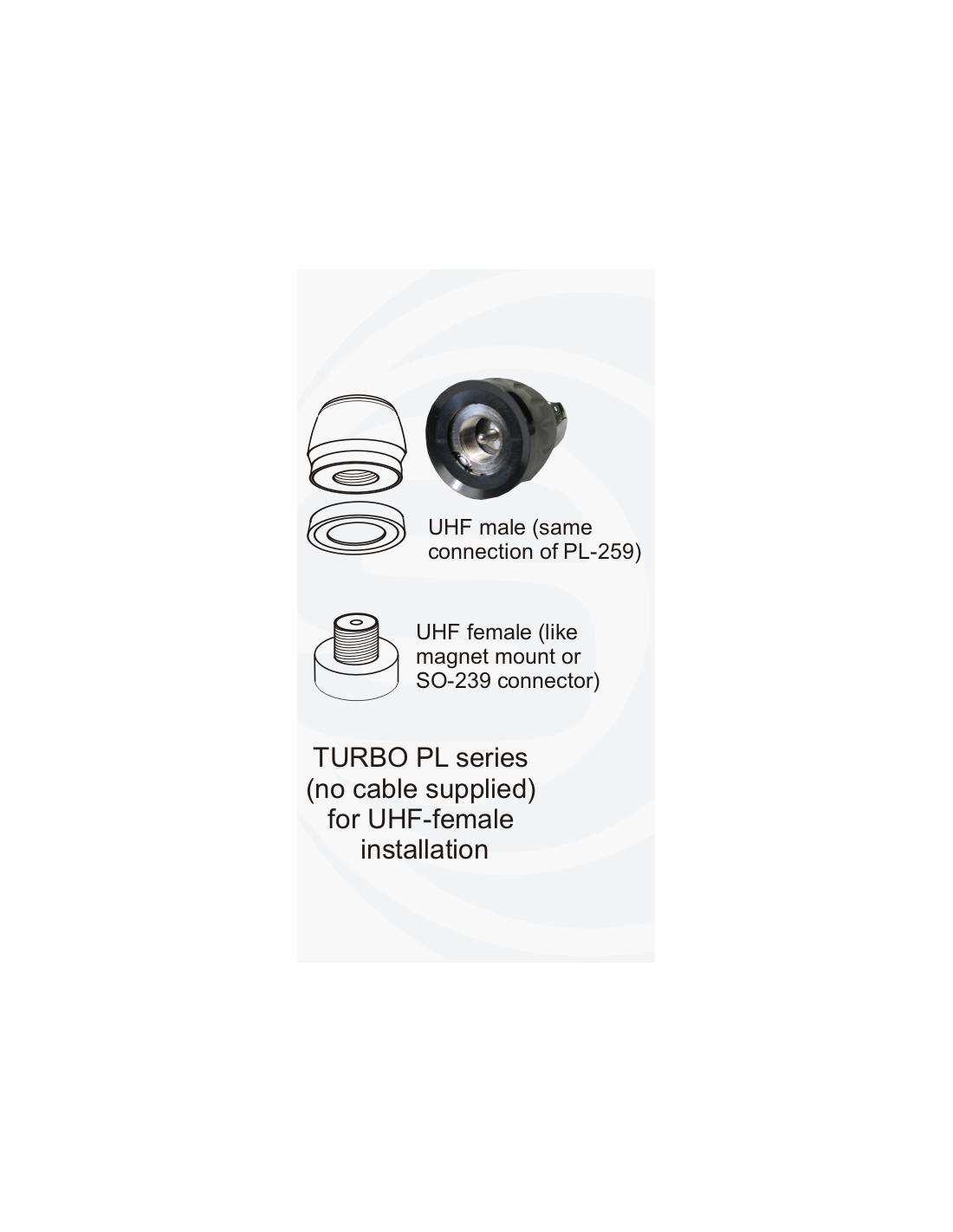

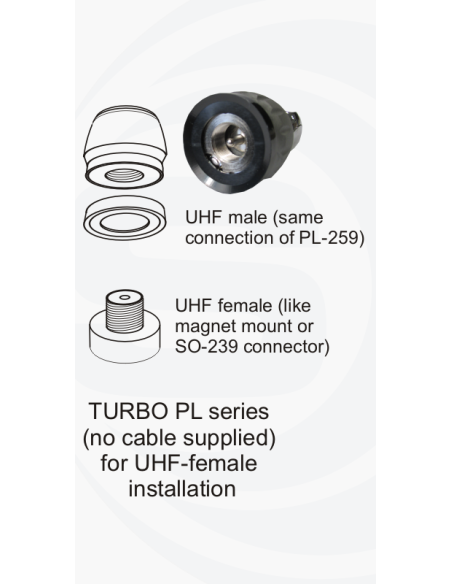

| Connector: |
|
Mechanical Data:
| Materials: | Copper, Chromed brass, Stainless Steel 17/7 PH, Thermoplastic UV stabilized |
| Height (approx): | 1965 mm / 6.45 ft |
| Weight (approx): | 650 gr / 1.43 lb |
| Mounting type: |
|
