HP 2070 SIRIO

VS 000540

New product

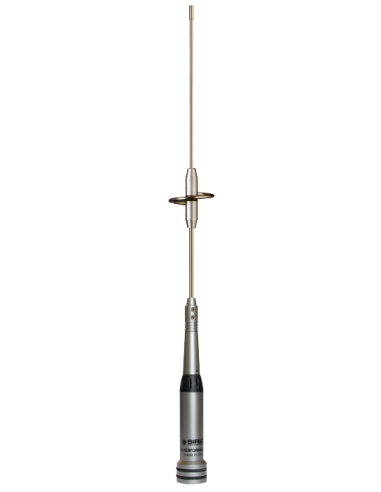

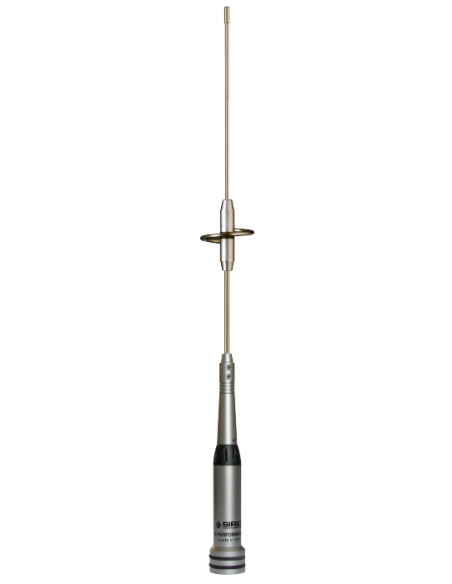

DUALBAND MOBILE ANTENNA

VHF: 141-149 MHz 1/4λ /

UHF: 422-447 MHz 5/8λ /

445 mm

More details

50,00 € tax incl.

More info

Features:

- Mobile antenna, Dual-band, Omnidirectional
- VHF band Unity-gain,UHF band Low-gain
- Protection from static discharges DC-Ground
- 17/7 PH stainless steel cylindrical whip
- 90° tiltable whip and detachable for car-washes access
- Wide range of optional mounting bases available





Electrical Data
-
Type: VHF 1/4 λ, UHF 5/8 λ
-
Frequency range @ SWR ≤2: VHF 141-149 MHz, UHF 422-447 MHz
-
Impedance: 50Ω
-
Radiation (H-plane): 360° omnidirectional
-
Polarization: linear vertical
-
Gain: VHF 0 dB, UHF 2 dB ref. to a λ /4 whip
-
Max Power (CW) @ 30°C: VHF 150 Watts, UHF 100 Watts
-
Grounding protection: all metal parts are DC-grounded, the inner conductor is coupled capacitively
-

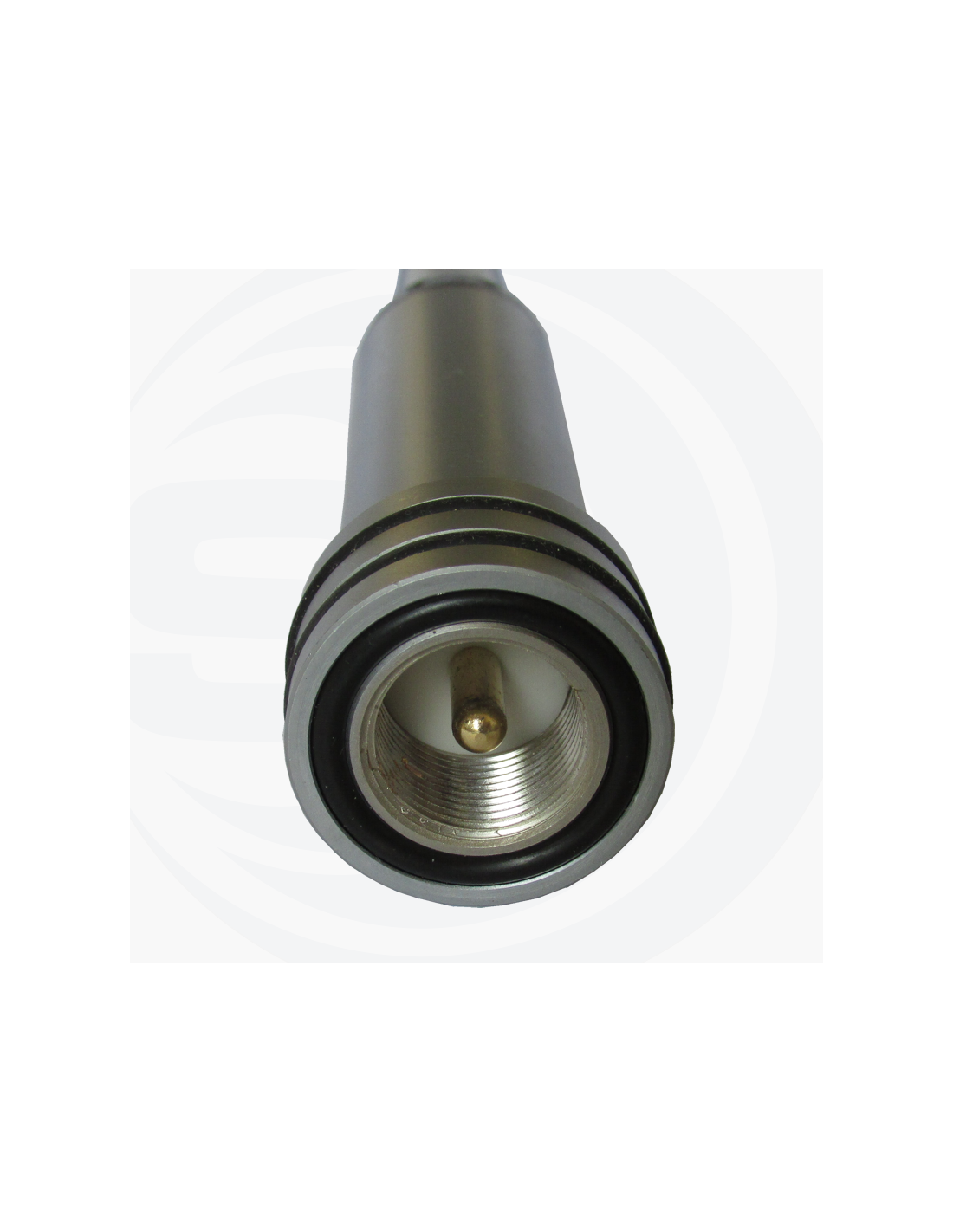

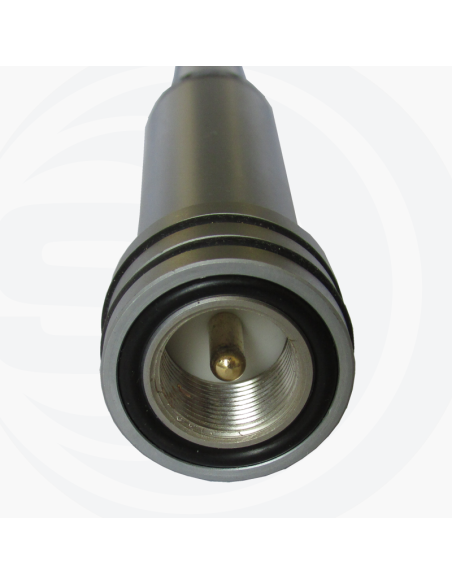

Connector: UHF-male (PL 259)


Mechanical Data
-
Materials: Stainless Steel 17/7 PH, Chromed Brass, Nylon
-
Height (approx.): 445 mm
-
Weight (approx.): 270 gr

Related Products

Download

PRODUCT MANUAL HP 2070

Download (1.63M)
