CRT 2M HAM

TX_000022

New product

  •  VHF MOBILE RADIO
  • 144-146Mhz
  • 60W

More details

175,00 € tax incl.

Data sheet

Norm AMATEUR RADIO (restriction : in emission use with amator radio certificate obligatory)
Mode FM ( Wide/Narrow )
Frequency range RX/TX : 144 - 146 mHz
Power LOW : 10W / MIDDLE : 25W / HIGHT : 60W
Input voltage 13.8 Volts DC
Memories 200 channels + 1 channel priority call
Channel spacing 12.5 kHz / 20 kHz / 25 kHz
Step of increment 5 / 6.25 / 8.33 / 10 / 12.5 / 15 / 20 / 25 / 30 / 50 kHz
SCRAMBLER Yes : encryption method (speech privacy) option
SQUELCH Yes : elimination of background noise
CTCSS / DCS (encoder/decoder) 50 CTCSS / 1024 DCS : sub-audio code to activate repeater like selective tone
DTMF (encoder) Yes : tones selected to activate repeater, internet gateway and other items
ANY CODE Yes : ID code + selective call
TOT function Yes : time out timer
SCAN function Yes : automatic search of busy channels
COMPANDER function Yes : TX with a clear voice
TX/OFF function Yes : forbidding emission
BCLO function Yes : busy Channel Lock
REVERSE function Yes : the current channel RX frequency will be switched to TX frequency
TALK AROUND function Yes : switch RX/TX frequencies and CTCSS/DCS code to avoid using repetear
ALARM function Yes : the transceiver will sound alarm beep, meanwhile, it start transmitting and send the alarm beep to companions or systems
APO function Yes : automatic power off (programmable)
Various functions Keyboard lock + channel name édit
Bonus Burglar alarm + data plug

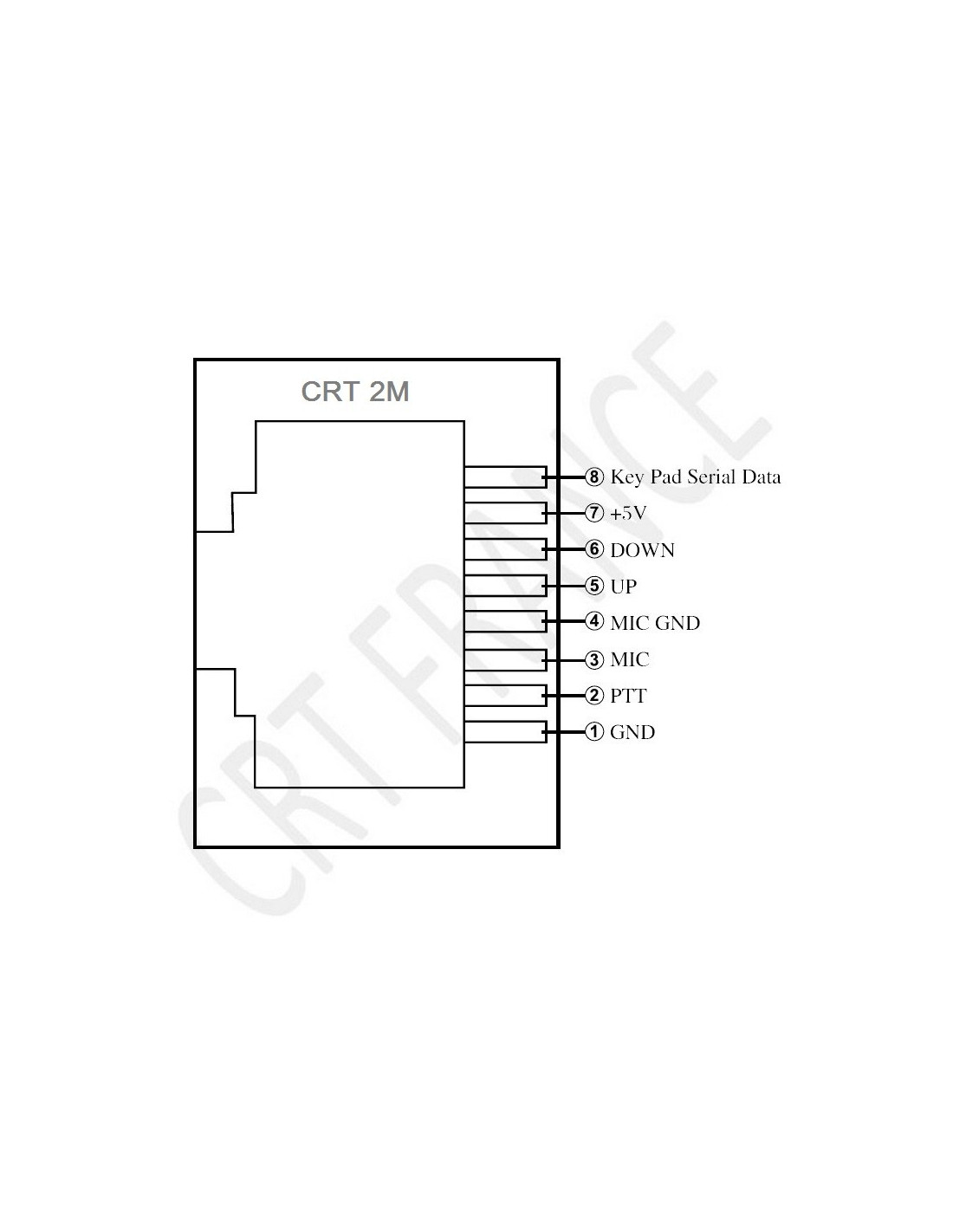

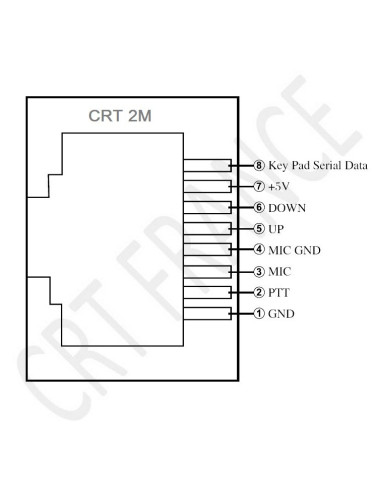

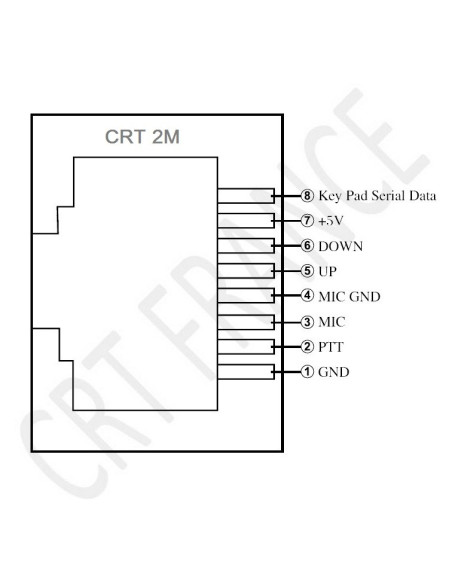

Mike UP/DOWN selection + multifunction keys + DTMF inclused
Display LCD display (adjustable brightness)
Level display Power supply voltage + various function ...

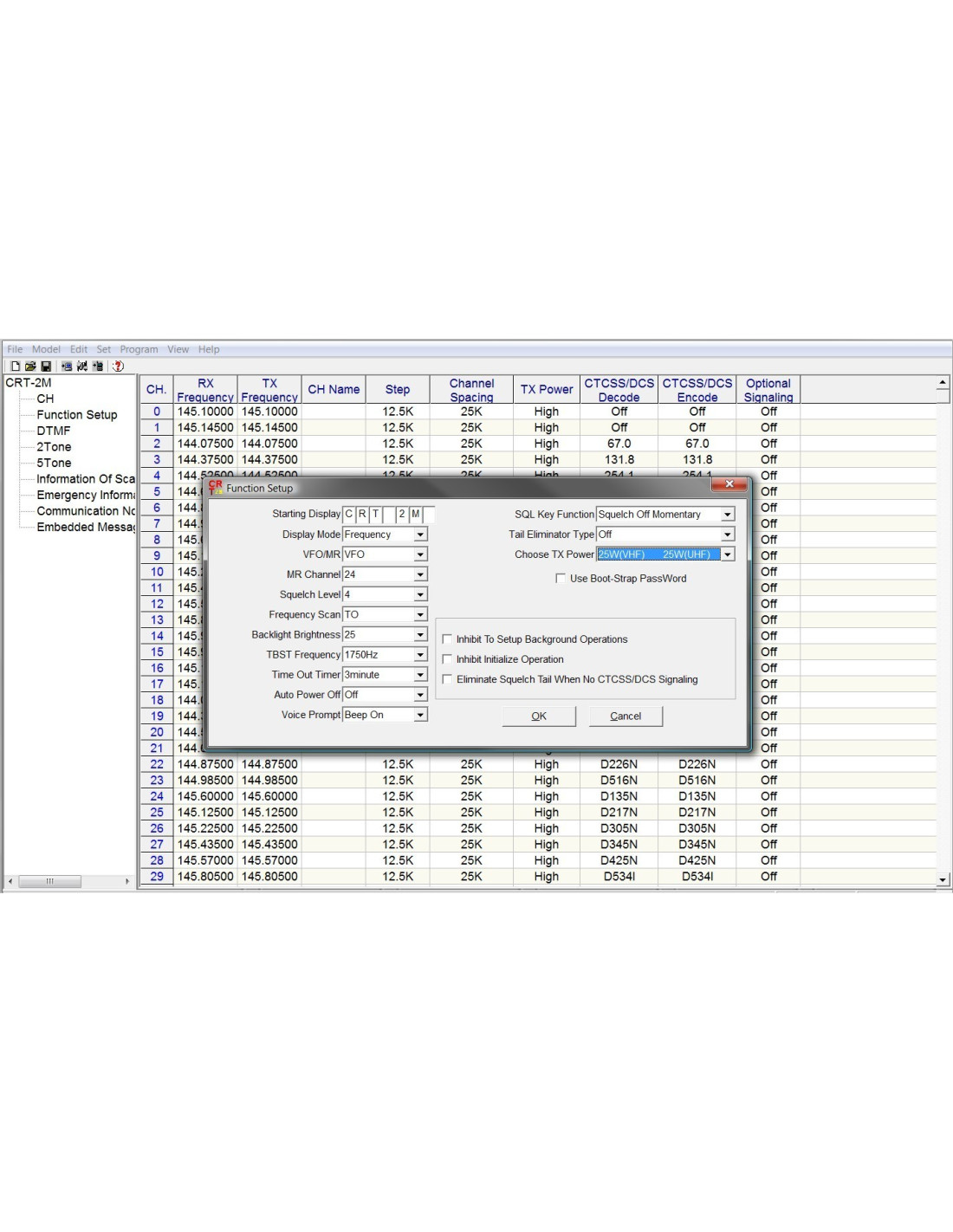

Options Programming cable + software + clone by cable
Programmable by software Yes
Includ Detachable power cable + fixing bracket + screws + manual in French&English
Size 140 x 41 x 190 mm
Weight 1.2 kgs
Guaranty 2 years
