CRT SS 6900 V BLUE V8 NRC BOARD INCLUDED
- AM/FM/USB/CW/PA
- 28-29.7 mHz
- 12W AM/ 40W FM/ 35W SS
- LARGE LCD frequency display
- VOX
- CTCSS/DCS
- RX compander
- TX Noise Gate
- RX Noise Gate (NRC board included)

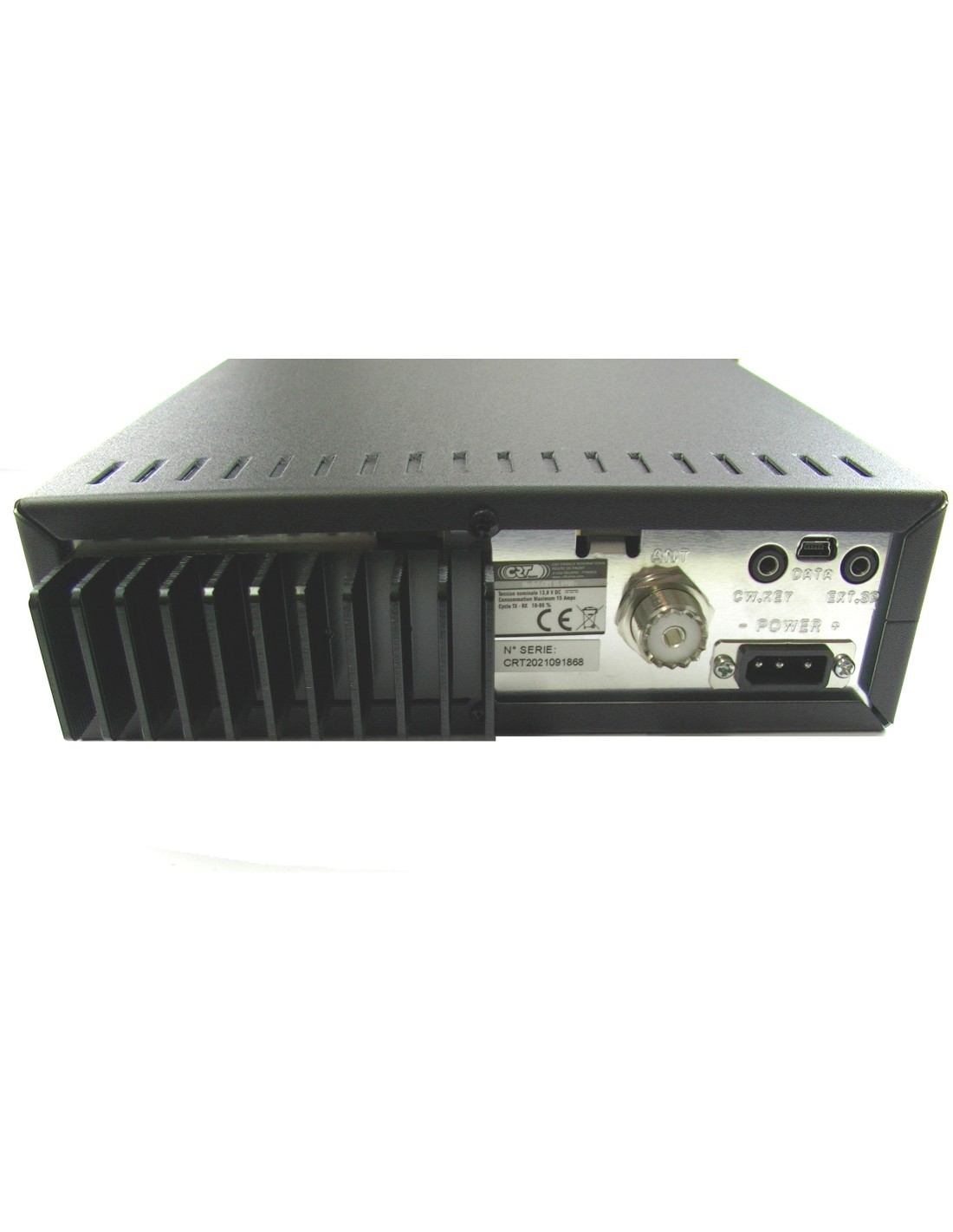

- Program cable connector on the backside of the radio
- Extra ventilation
- With step 5kHZ
- NEW : function DIMMER
2.15.1.0
- Norm
- AMATEUR RADIO (restriction : in emission use with amator radio certificate obligatory)
- Mode
- AM / FM / USB / LSB / CW / PA
- Frequency range
- 28 - 29.7 mHz
- Power
- 12 Watts AM / 40 Watts FM / 35 Watts BLU (adjust level power AM/FM/SSB)
- Input voltage
- 13.8V DC
- Step of increment
- 10Hz / 100Hz / 1kHz / 5kHz /10kHz
- S-METER
- Yes
- SWR METER
- Yes : protection with forbidding TX if TOS to high
- CLARIFIER
- Yes : (multifunction) clarifies the voice in SSB
- SQUELCH
- Yes : elimination of background noise (level adjustment in AM/FM/BLU)
- ROGER BEEP
- Yes : TX beep end
- RF GAIN
- Yes : adjust sensibility on RX
- MICRO GAIN
- Yes : (via menu) adjusts the gain of increasing or decreasing the audio power
- CTCSS / DCS (encoder/decoder)
- 38 CTCSS / 104 DCS : digital and analog code to activate repeater like selective tone
- Filters NB/ANL
- Yes : noise filters
- Filters NB/HI CUT
- Yes : noise filters
- NRC filter function
- Yes : RX noise reduction - particularly effective in SSB
- DOUBLE WATCH function
- Yes
- VOX function
- Yes : this feature triggers your microphone sound (hands free)
- TOT function
- Yes : time out timer
- SCAN function
- Yes : automatic search of busy channels
- COMPANDER function
- Yes : TX with a clear voice
- RESET function
- Yes: in the event of a malfunction or incorrect handling, it is possible to restore the factory settings or reset the functions
- Function DIMMER
- Yes : to adjust dimmer/brightness of front panel - 3levels - MENU 2
- Various functions
- Emergency call + Adjust echo (delay&repeat) + Keyboard lock + (+)10 Khz function + CW tone + Protection against to high input voltage&to unfavorable SWR + Squelch level protection + TX Noise Gate
- Bonus
- Microphone type selection : electret or dynamic
- Mike

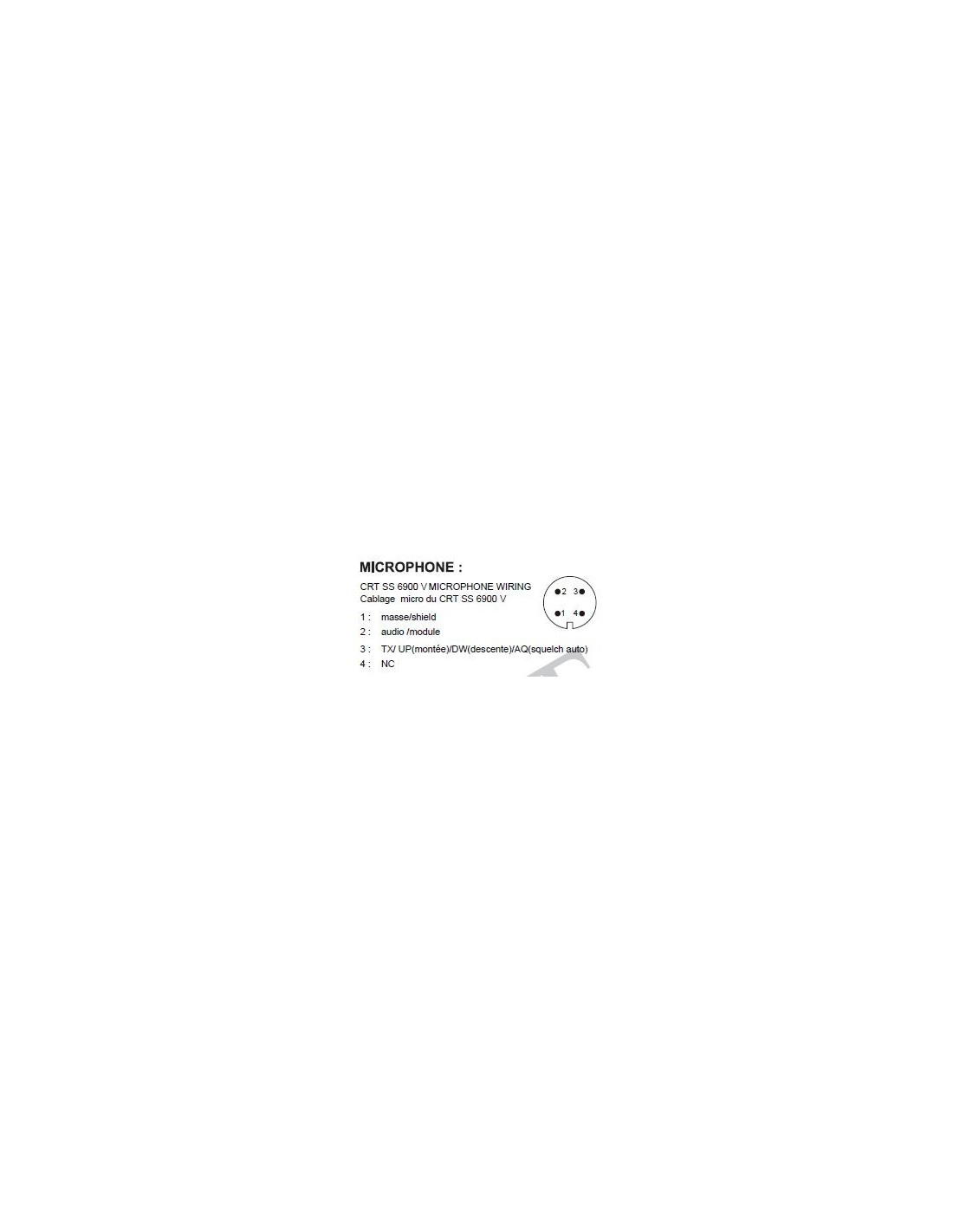

- Dynamic type - UP/DOWN selection + 4 pins plug in front pannel with automatic squelch
- Display
- Display LCD and channel blue + Blue retro lighting
- Level display
- Blue frequencies meter 7 digits + TX frequencies, SWR, power level …
- Options

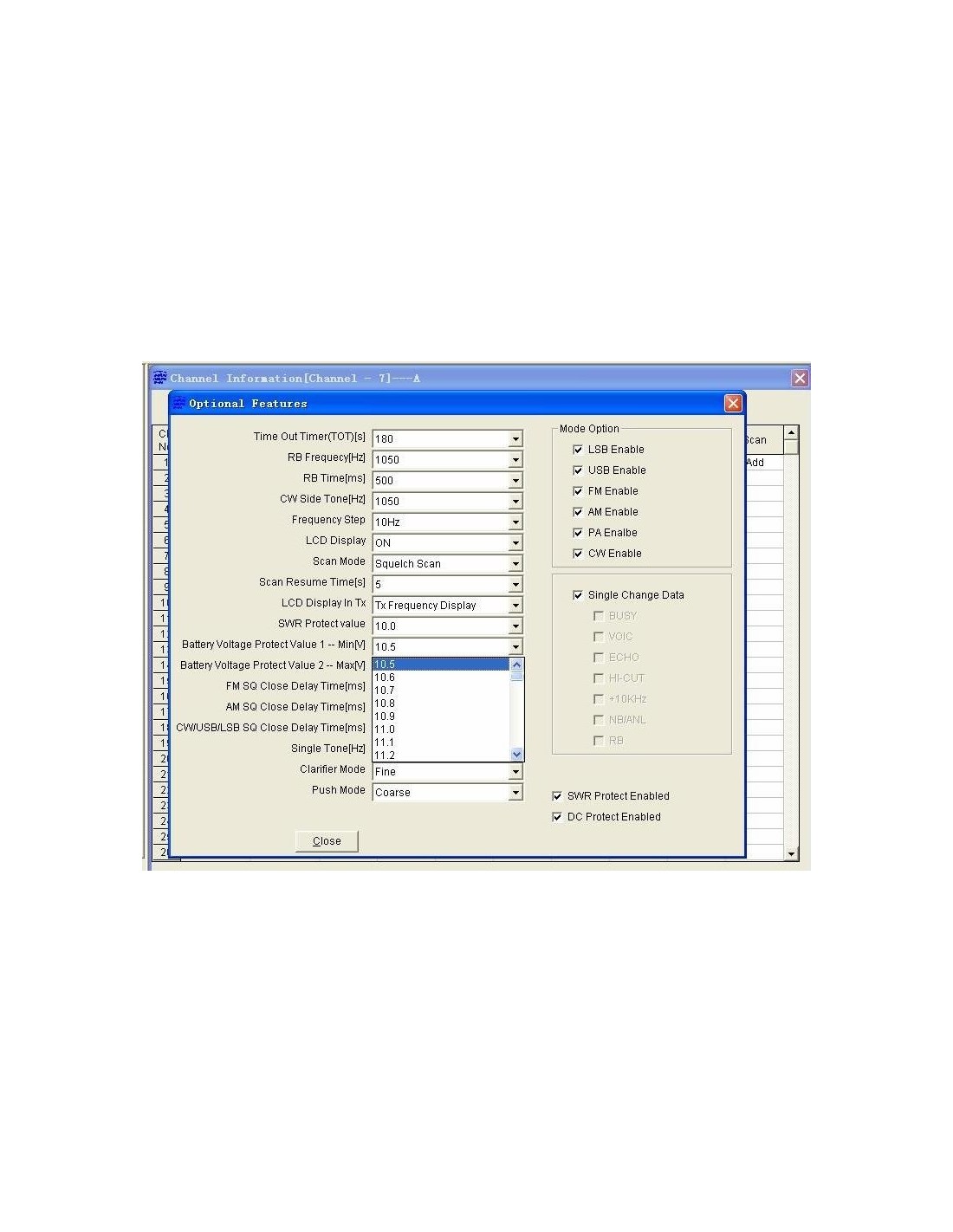

- Programming cable + software
- Programmable by software
- Yes - Connector on the back of the radio without the need to open
- Includ
- Detachable power cable + fixing bracket + screws + microphone holder + manual in French&English
- Size
- 28 x 26 x 6 cm
- Weight
- 1.85 kgs
- Guaranty
- 2 years
TX 000225
NEWS :
- VOX function
- CTCSS/DCS codes
- RX Compander
- TX Noise Gate
- RX Noise Gate (NRC board included)
- Microphone type selection : electret or dynamic
- Program cable connector on the backside of the radio
- Extra ventilation holes ont the top and bottom cover
- With step 5kHz
- Function DIMMER
