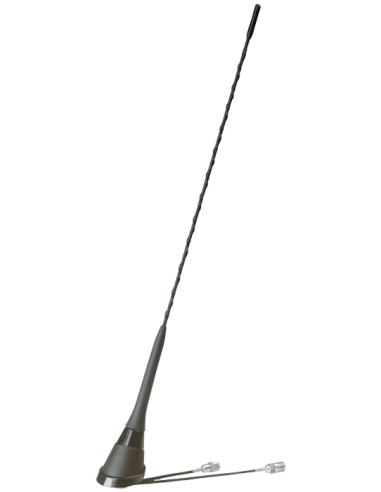

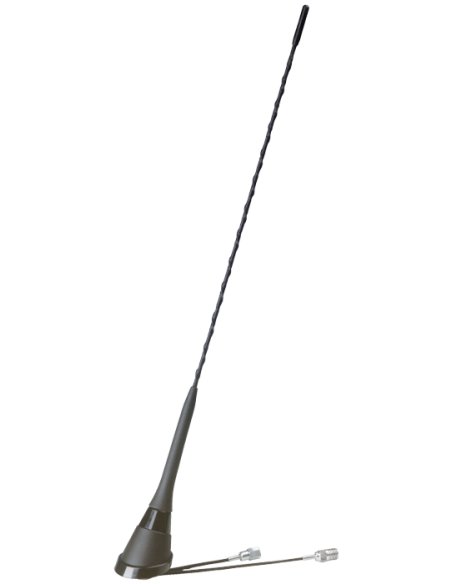

CELLFLEX AM-FM 900/1800 SIRIO

View larger

CELLFLEX AM-FM 900/1800 SIRIO

Reference: VS 000243

Condition: New product

MOBILE ANTENNA

Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

More info

Features:

-	Mobile antenna, Multi-band
-	Unity-gain, Omnidirectional
-	Flexible whip, detachable for car-washes access

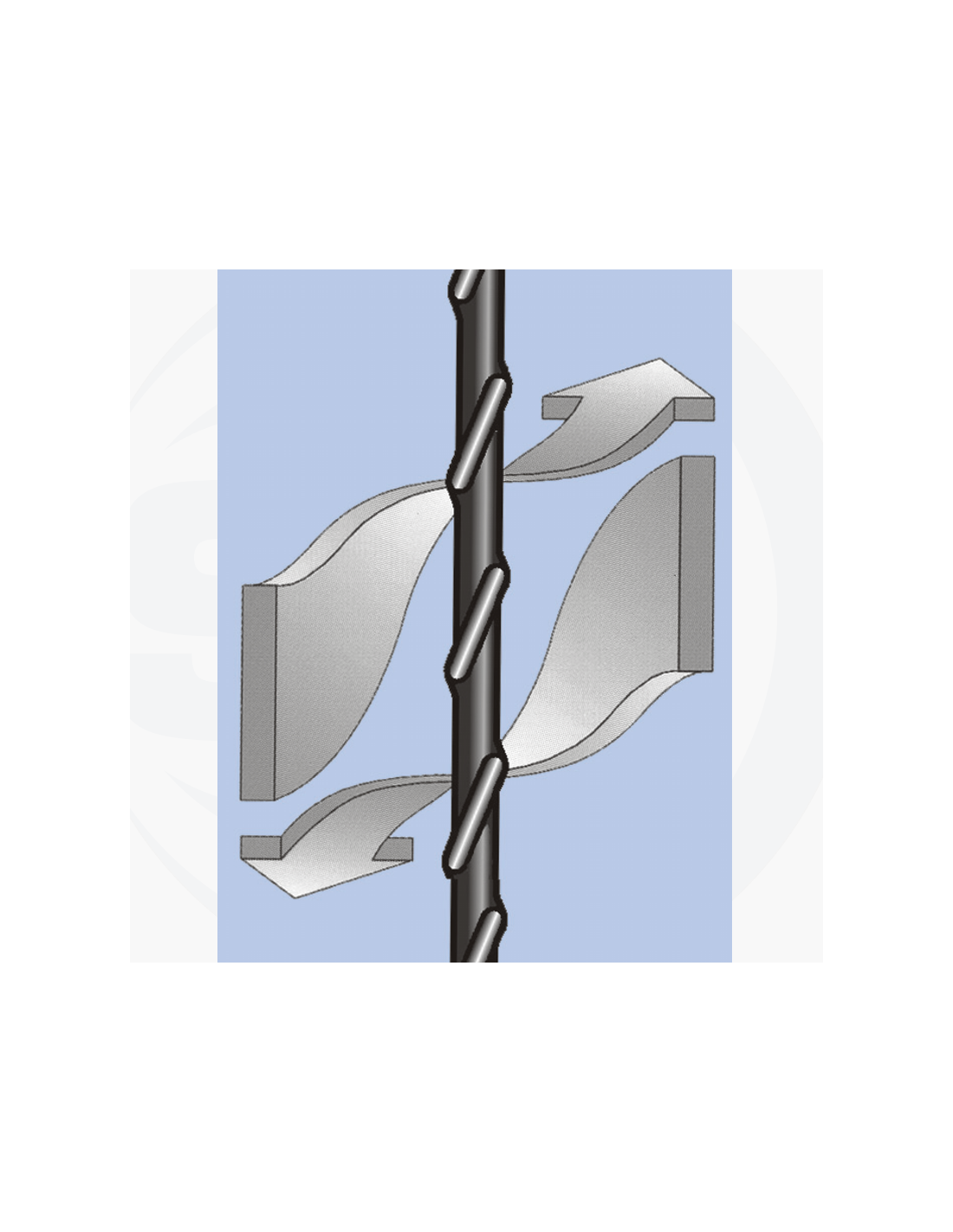

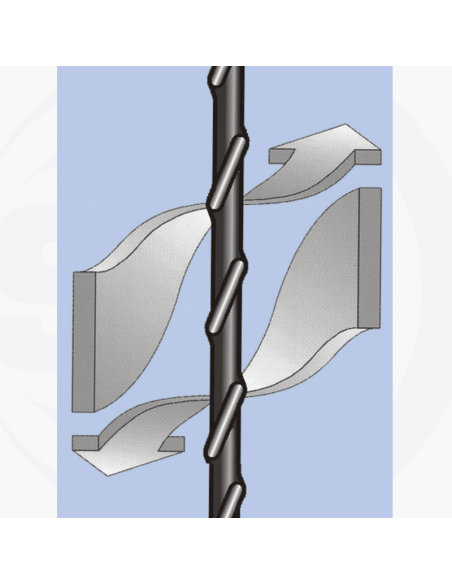

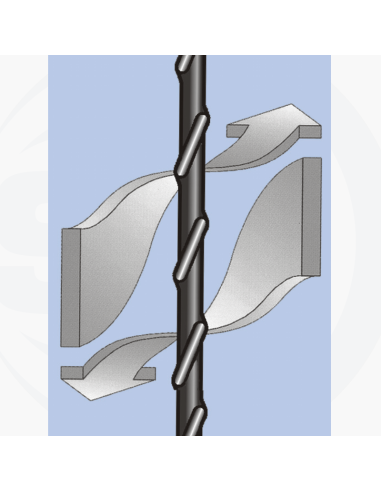

-	Anti-noise system whip
-	For AM-FM radio, GSM 900 & 1800 systems

Electrical Data
-	Type: FM: 1/4 λ helical loaded 900 MHz ,1800 MHz bands: 1/4 λ
-	Frequency range: AM 0.15-1.6 MHz, FM 87.5-108 MHz 870-960 MHz for GSM 900 and TACS systems 1.71-1.88 GHz fo GSM 1800 system
-	Impedance: AM-FM band: 150Ω 900 / 1800 MHz bands: 50Ω
-	Radiation (H-plane): 360° omnidirectional
-	Polarization: linear vertical
-	Gain: 0 dB ref. to a λ /4 whip
-	Decoupling AM-FM plug / Phone plug: ≥ 30 dB
-	SWR in bandwidth: 900 MHz band: ≤ 1.6 1800 MHz band: ≤ 1.8
-	Max Power (CW) @ 30°C: 20 Watts
-	Cable Length / Type / Connector: AM-FM band: 165 mm / RG316 / M10x0.75-male 900/1800 bands: 120 mm / RG316 / FME-male

Mechanical Data
-	Materials: Nylon, Chromed Brass, Copper, Aluminum
-	Height (approx.): 450 mm
-	Weight (approx.): 100 gr
-	Mounting hole: Ø 18 or square 15 mm
-	Mounting depth: 12 mm
