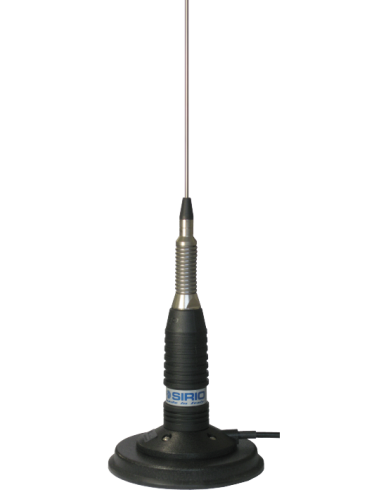

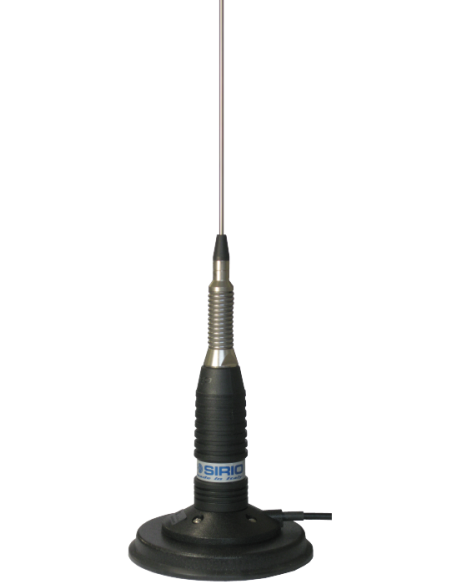

ML 145 MAG SIRIO

Name: ML 145 MAG SIRIO
Brand: SIRIO
SKU: VS 000240
Price: 57 EUR
Availability: InStock

MAGNETIC MOBILE ANTENNA /

27...28.5 MHz Tunable /

CB 27MHz /

1420mm

€57.00 Tax included

Reference VS 000240

Features:

-	CB Mobile antenna
-	Tunable from 27 to 28.5 MHz
-	Protection from static discharges DC-Ground
-	17/7 PH tapered stainless steel whip
-	Supplied with a strong stainless steel spring
-	Wide range of optional mounting bases available

Electrical Data
-	Type: base loaded
-	Frequency range: 27 ... 28.5 MHz
-	Impedance: 50 Ω
-	Polarization: linear vertical
-	Bandwidth @ SWR ≤ 2: ≥ 1340 KHz (120 channel)
-	SWR @ res. freq.: ≤ 1.2
-	Max. power: 300 Watts (CW) continuous 900 Watts (CW) short time
-	Connector: UHF-male (PL 259)
-	Cable lenght / Type: 3.6 m / RG 58

Mechanical Data
-	Materials: Brass, Copper, Nylon, Stainless Steel
-	Height (approx.): 1420 mm
-	Weight (approx.): 1250 gr

PRODUCT MANUAL ML 145
