TRIFLEX 27 / AM-FM / GSM 900 (without cable) SIRIO

VS 001060

New product

MOBILE ANTENNA

More details

60,00 € tax incl.

More info

Features:

- CB Mobile antenna, Multi-band

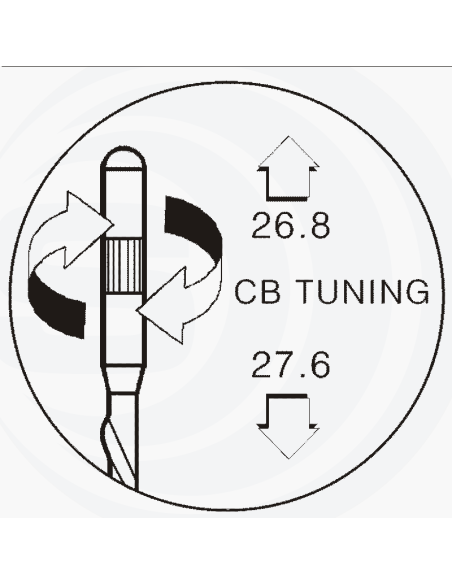

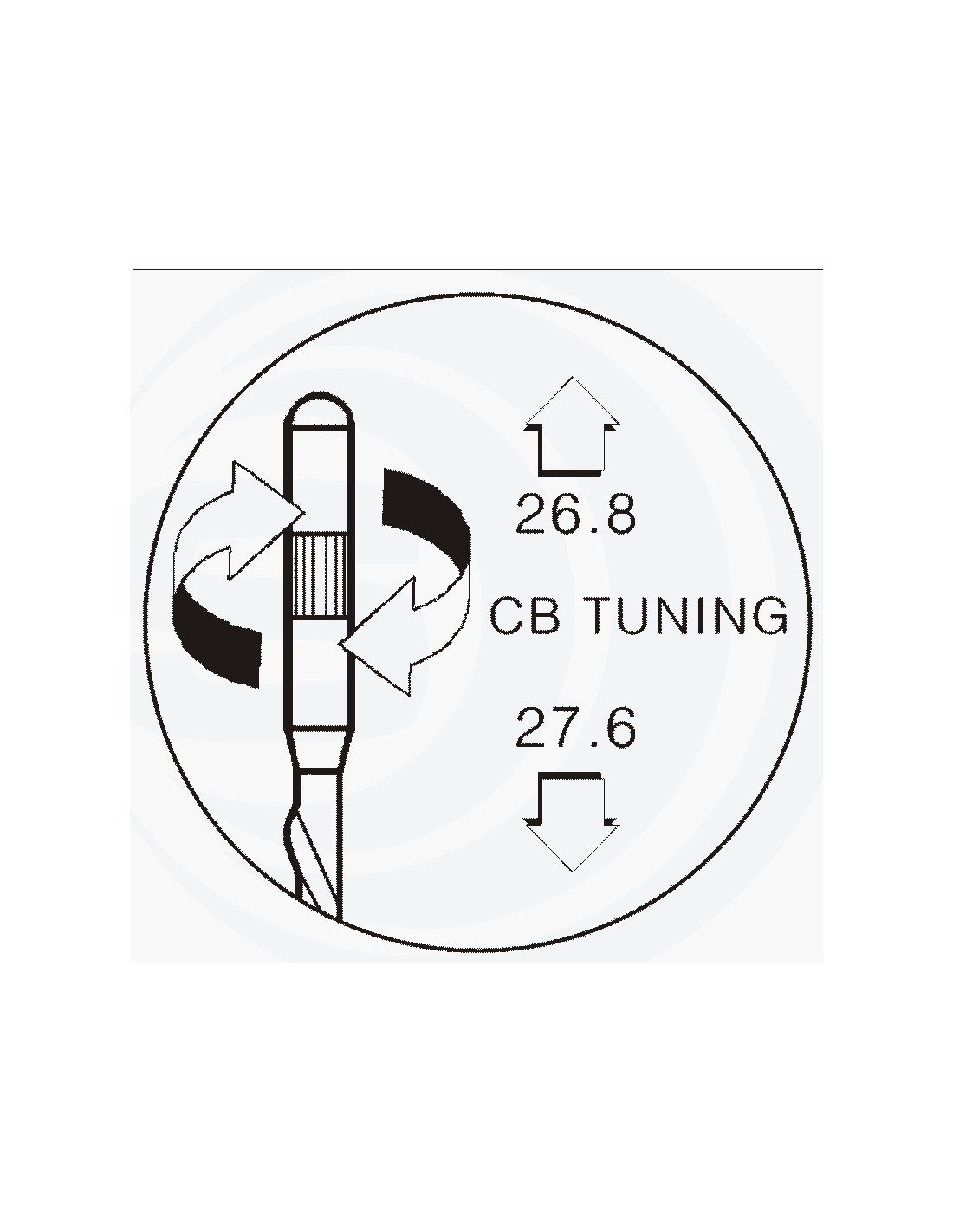

- CB frequency tunable by rotation of tuning cap
- Flexible whip, detachable for car-washes access
- For CB 27 MHz, AM-FM radio and GSM 900 MHz systems





Electrical Data
-
Type: CB 27 MHz band: 1/4 λ central loaded FM band: 1/4 λ helical loaded GSM 900 MHz band: 1/4 λ
-
Frequency range: CB 27 MHz band: tunable 26.8 .. 27.6 MHz by rotation of tuning cap AM-FM band: AM 0.15-1.6 MHz, FM 87.5-108 MHz GSM 900 MHz band: TX-band 880-915 MHz, RX-band 935-960 MHz
-
Impedance: AM-FM band: 150 Ω
CB and GSM bands: 50 Ω
-
Polarization: linear vertical
-
Bandwidth @ SWR ≤ 2: CB 27 MHz band: ≥ 440 KHz (40 channel) GSM 900 MHz band: ≥ 100 MHz
-
SWR @ res. freq.: ≤ 1.2
-
Max. power: CB 27 MHz band: 10 Watts GSM 900 MHz band: 20 Watts
-
WITHOUT CABLE


Mechanical Data
-
Materials: Nylon, Chromed Brass, Copper, Aluminum
-
Height (approx.): 500 mm
-
Weight (approx.): 120 gr
-
Mounting hole: Ø 18 mm or square 15mm
-
Mounting depth: 12 mm
