OMEGA 27 SIRIO

VS 000160

New product

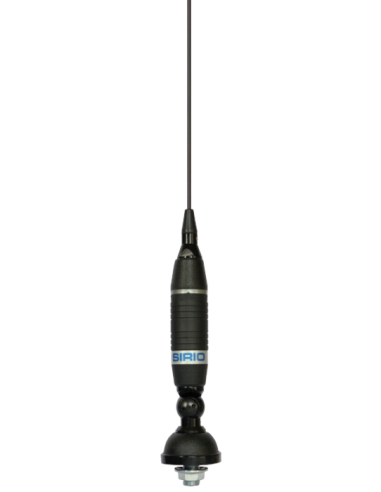

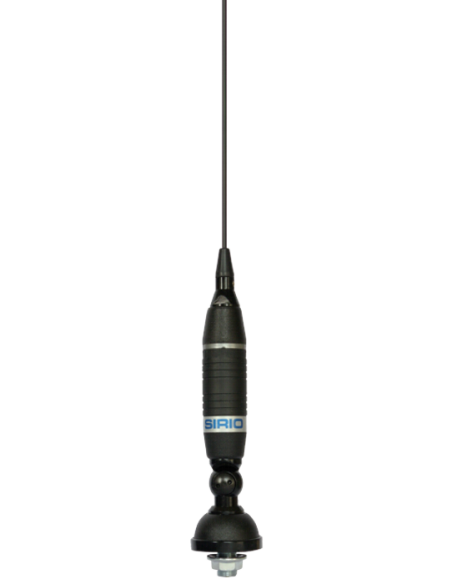

MOBILE ANTENNA

More details

44,00 € tax incl.

More info

Features:

- CB & 10m Mobile antenna
- Tunable from 27 to 28.5 MHz
- 17/7 PH tapered stainless steel whip
- 180° inclination and adjustable whip, detachable for car-wash
- Suitable for magnetic mount





Electrical Data
-
Type: base loaded
-
Frequency range: 27/ 28.5 MHz
-
Impedance: 50 Ω
-
Polarization: linear vertical
-

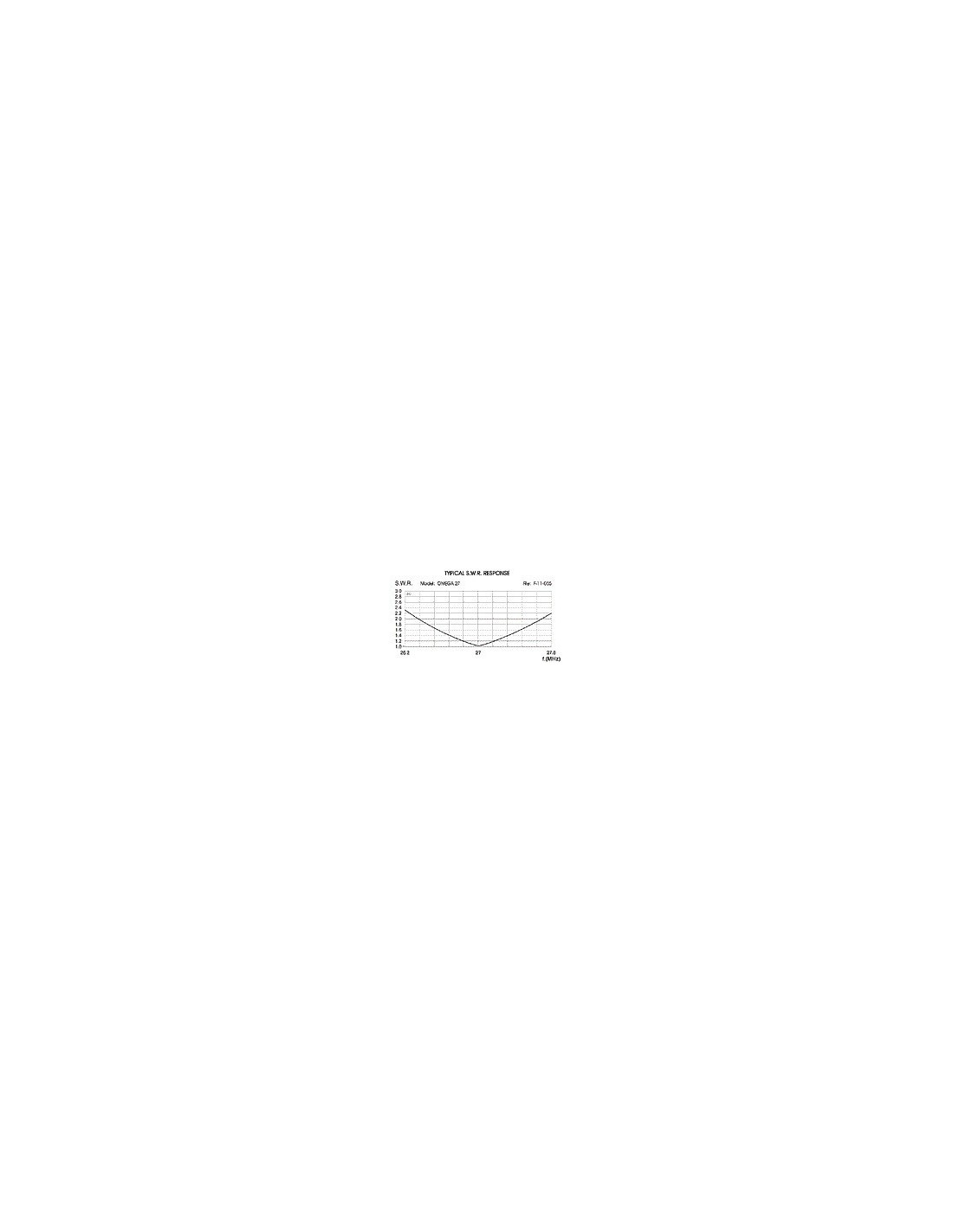

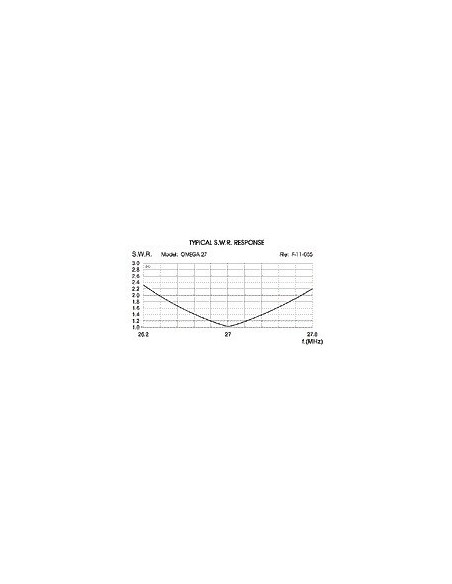

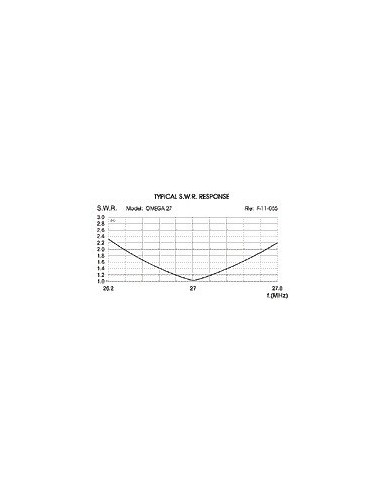

Bandwidth @ SWR ≤ 2: ≥ 1440 KHz (130 channel)
-
SWR @ res. freq.: ≤ 1.2
-
Max. power: 15 Watts (CW) continuous 150 Watts (CW) short time
-

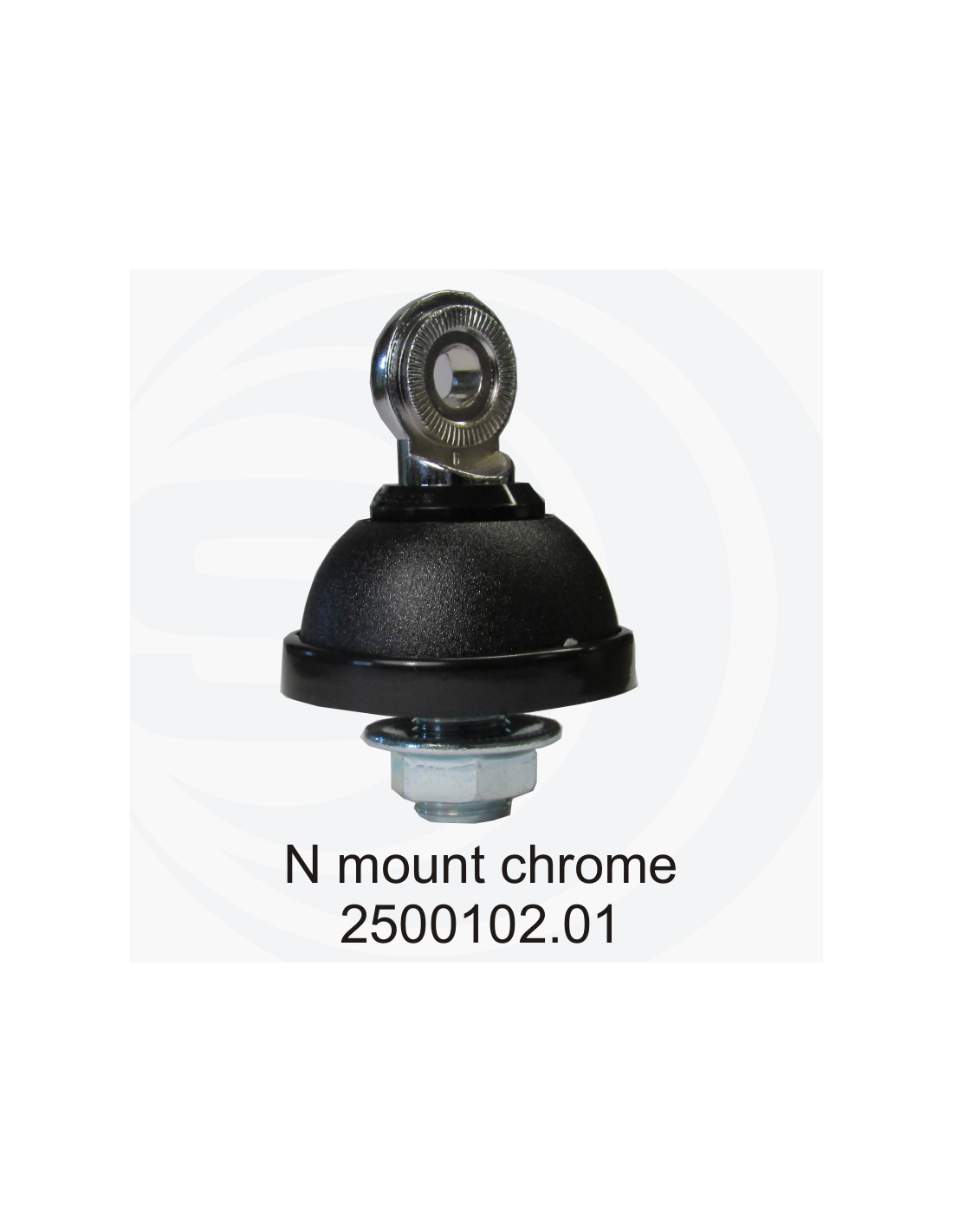

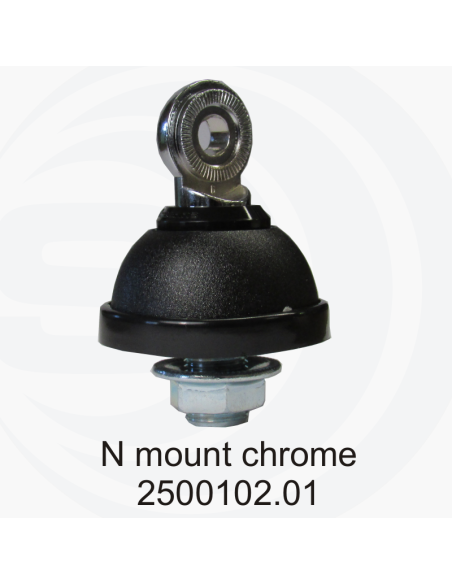

Standard mount: "N"
-
Cable lenght / Type: 4 m / RG 58 + FME + ADAPTATOR FME/PL

Mechanical Data
-
Materials: Brass, Copper, Nylon, Stainless Steel
-
Height (approx.): 945 mm
-
Weight (approx.): 390 gr
-
Mounting hole: Ø 12.5 mm.

Download

PRODUCT MANUAL OMEGA 27

Download (2.73M)
