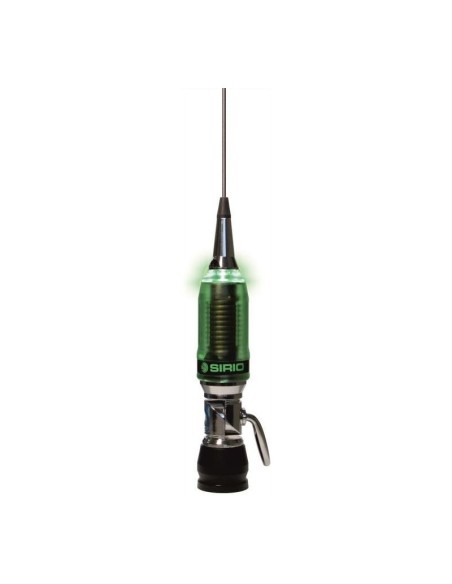

PERFORMER 5000 LED SIRIO

VS 002530

New product

MOBILE ANTENNA

More details

76,00 € tax incl.

More info

Features:

– Unique LED PCB that ligth up when transmit
– CB & 10m Mobile antennas
– Very High power handling capability
– Tunable from 27 to 30 MHz
– Protection from static discharges DC-Ground
– 17/7 PH tapered stainless steel whip
– Whip detachable for car-wash

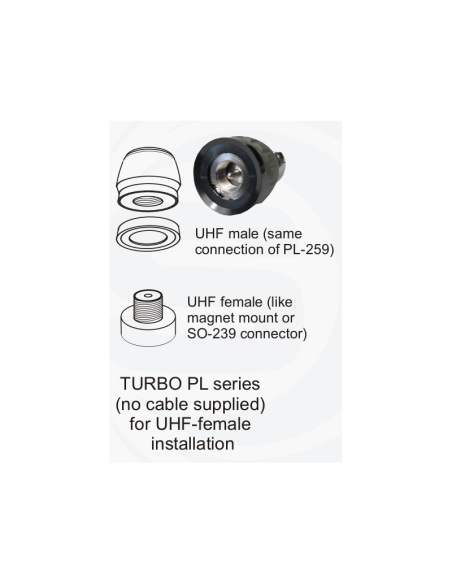

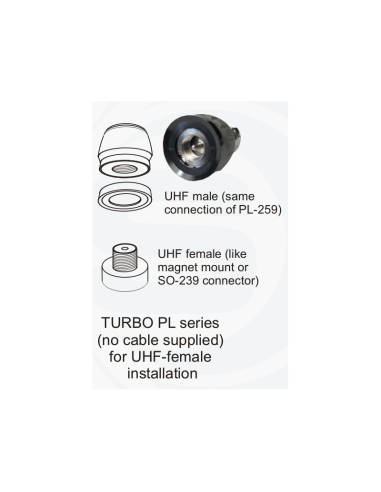

– Suitable for magnetic mount installation
– Hi-power cable available (for hole mounting only)

Electrical Data:

– Type: base loaded
– Frequency range: 27 … 30 MHz
– Bandwidth @ SWR ≤ 2: ≥ 2000 KHz (200 channel)
– Max. power:
1500 Watts (CW) continuous
5000 Watts (CW) Duty Cicle 5′ on – 5′ off

Mechanical Data:



– Mounting:: hole Ø 12.5mm / Ø 0.5 in
Standard: for power up to 600 Watts max: 4m / 13.1 ft RG58
Hi power: for power up to 2000 Watts max: 4m / 13.1 ft RG303 PTFE
– Height (approx.): 1965 mm / 77in
– Weight (approx.): 650 gr / 1.43 lb
