> >>>>MICRO 30 SIRIO
MICRO 30 SIRIO View larger

MICRO 30 SIRIO

VS 000122

New product

MOBILE CB ANTENNA

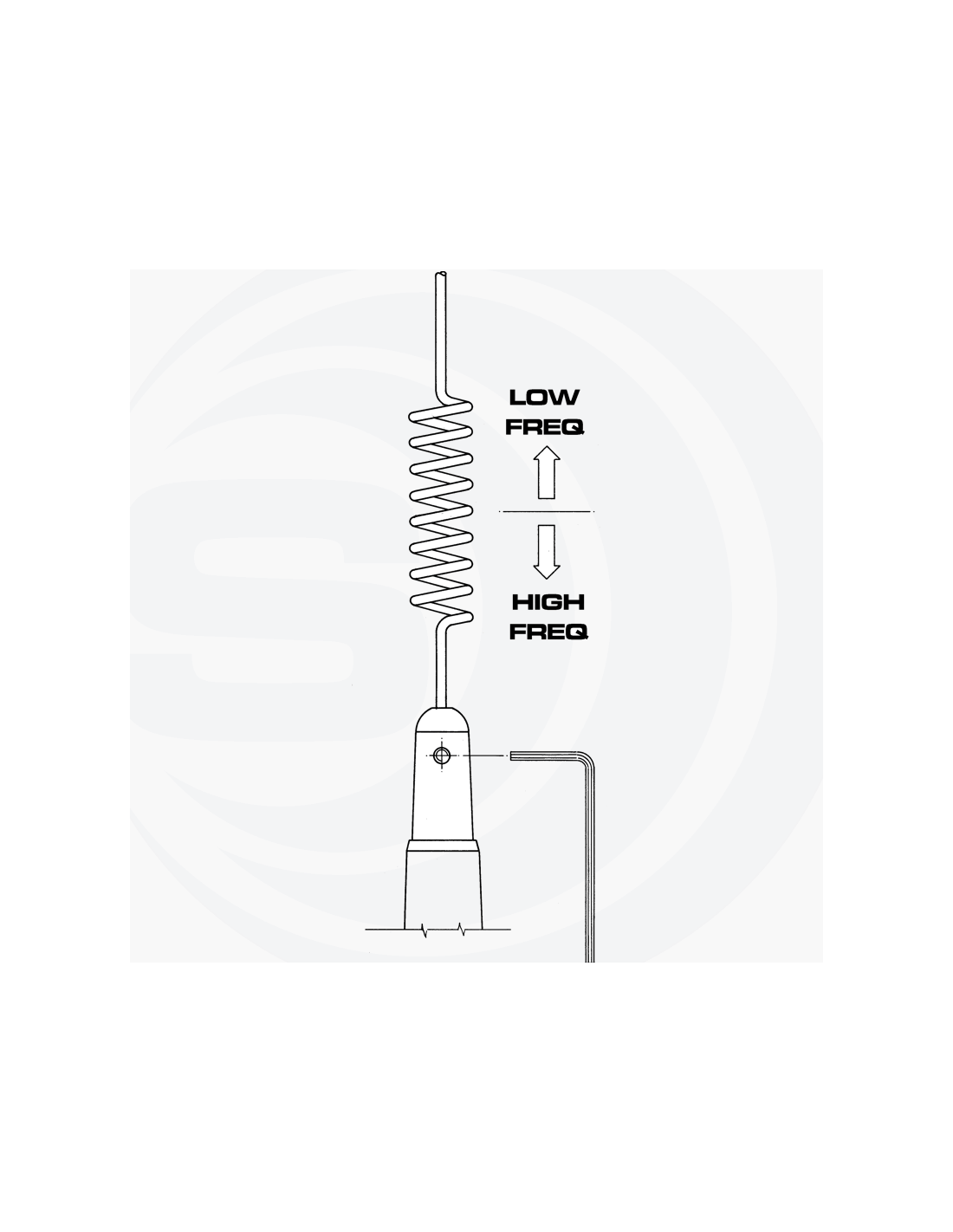

27…27.5 MHz Tunable /

325 mm

More details

This product is no longer in stock

25,00 € tax incl.

More info

Type: Base loaded
Radiation: Omnidirectional
Polarization: Linear vertical
Frequency range: 27 … 27.5 MHz Tunable
Systems: CB 27MHz
Bandwidth: ≥ 600KHz @ SWR ≤ 2
Max Power: 10 Watts (CW) continuous
30 Watts (CW) short time
Cable lenght / type:
4 m (13.12 ft) / RG58
Connector: Not supplied
Mechanical Data:
Materials: Copper, Stainless Steel 17/7 PH, Thermoplastic UV stabilized
Height (approx):
325 mm / 1.07 ft
Weight (approx):
80 gr / 0.18 lb
Mounting type:
Thru-Hole

Download

PRODUCT MANUAL MICRO 30

Download (166.12k)
