Features:
| - |
CB & 10m Mobile antennas |
| - |
Very High power handling capability |
| - |
Tunable from 27 to 28.5 MHz |
| - |
Protection from static discharges DC-Ground |
| - |
17/7 PH tapered stainless steel whip |
| - |
Whip detachable for car-wash |
| - |
Suitable for magnetic mount installation |
| Electrical Data |
| - |
Type: base loaded |
| - |
Frequency range: 27/28.5 MHz |
| - |
Impedance: 50 Ω |
| - |
Polarization: linear vertical |
| - |
SWR @ res. freq.: ≤ 1.2 |
| - |
Bandwidth @ SWR ≤ 2: ≥ 2000 KHz (200 channel) |
| - |
Max. power: 1500 Watts (CW) continuous 5000 Watts (CW) short time |
| |
|
| Mechanical Data |
| - |

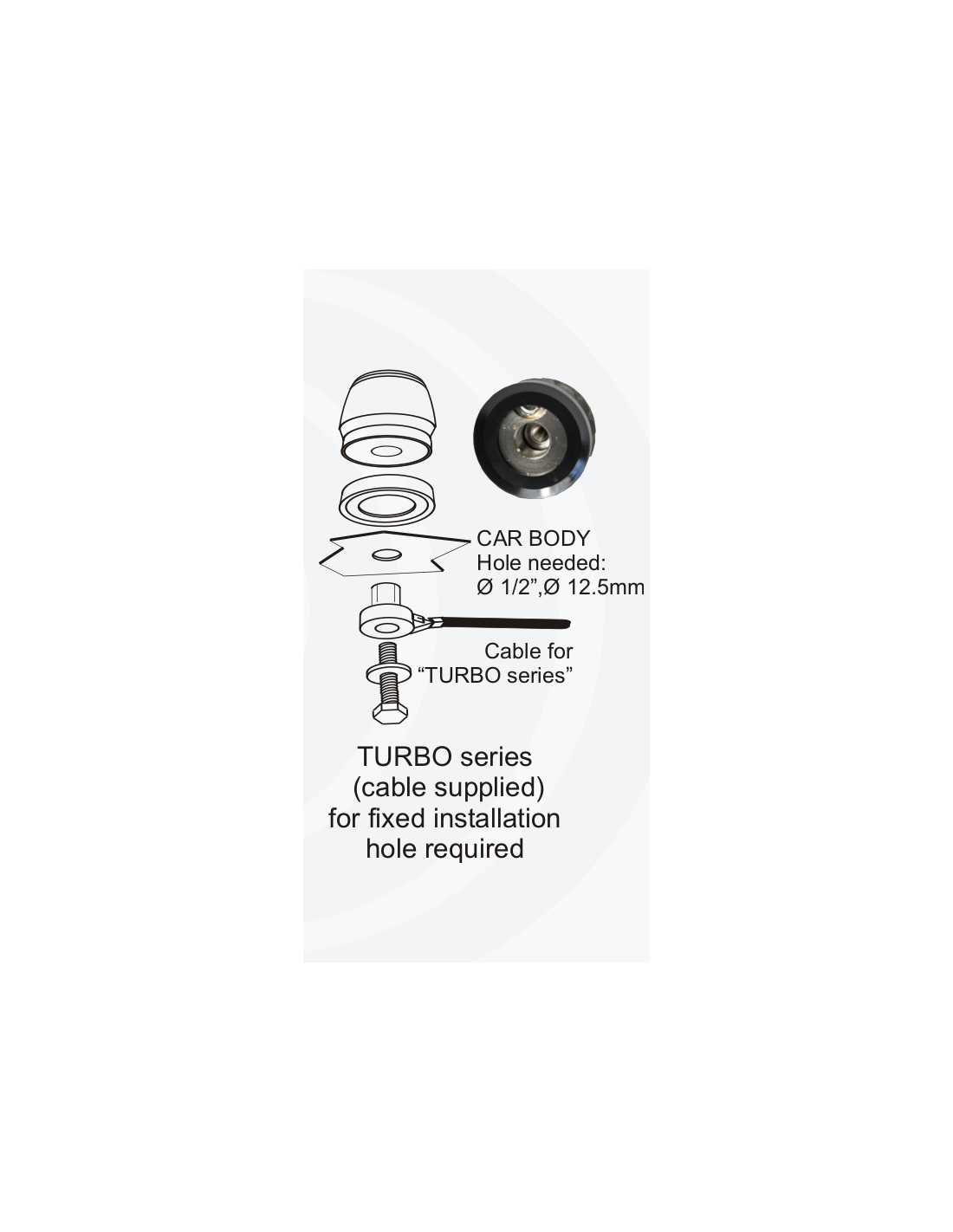

Mounting: TURBO-5000: hole Ø 12.5mm |
| - |
Cable lenght/Type: Standard: for power up to 600 Watts max: 4m RG58 Hi power: for power up to 2000 Watts max: 4m RG303 PTFE |
| - |
Height (approx.): 1965 mm |
| - |
Weight (approx.): 650 gr |
|
