Features:
| - |
CB & 10m Mobile antennas |
| - |
Tunable from 27 to 28.5 MHz |
| - |
Protection from static discharges DC-Ground |
| - |
TURBO 3000: 17/7 PH tapered stainless steel whip |
| - |
90° inclination and adjustable whip, detachable for car-wash |
| - |
Suitable for magnetic mount |
| - |
Glazed chromed surface, blue plastic parts |
| Electrical Data |
| - |

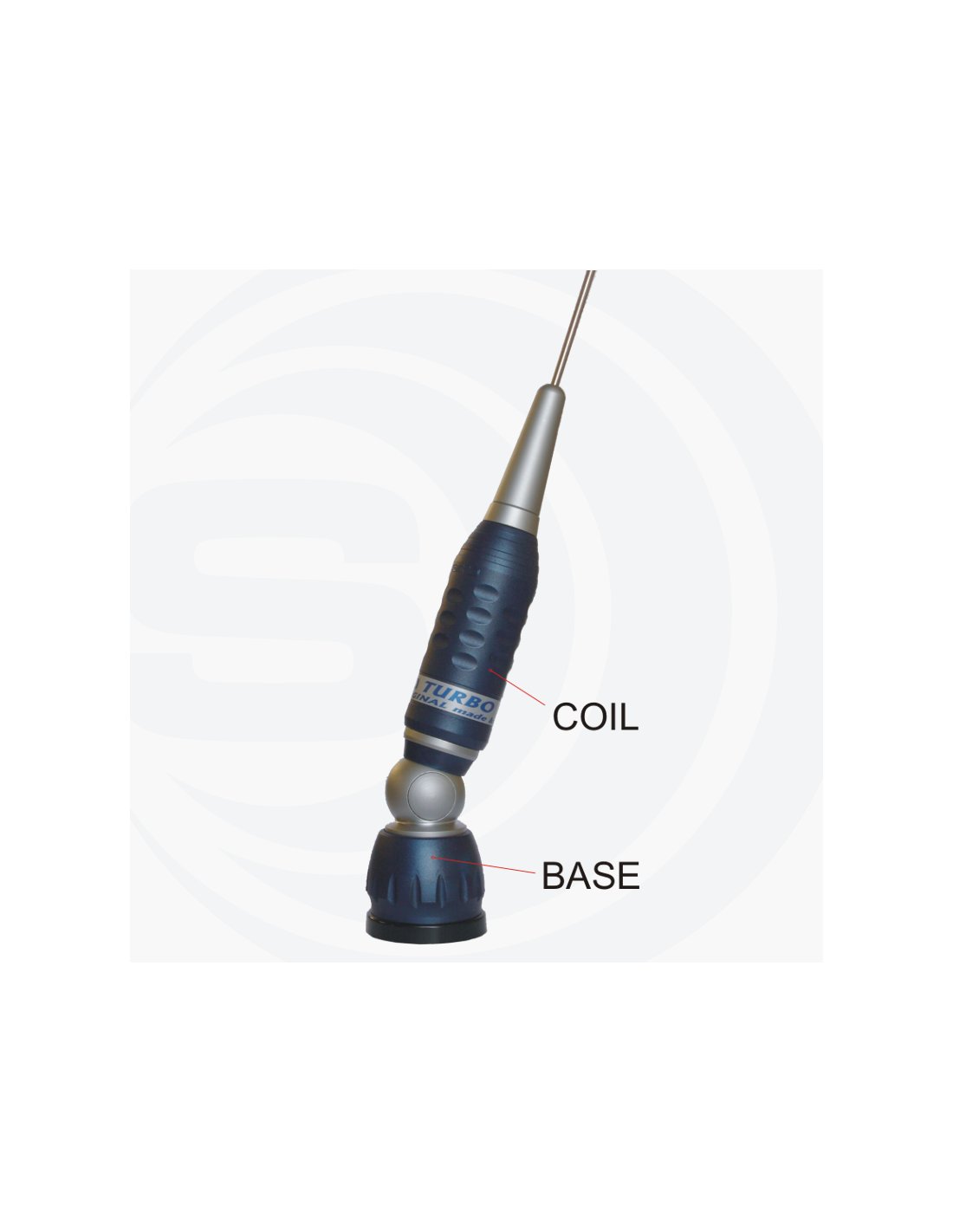

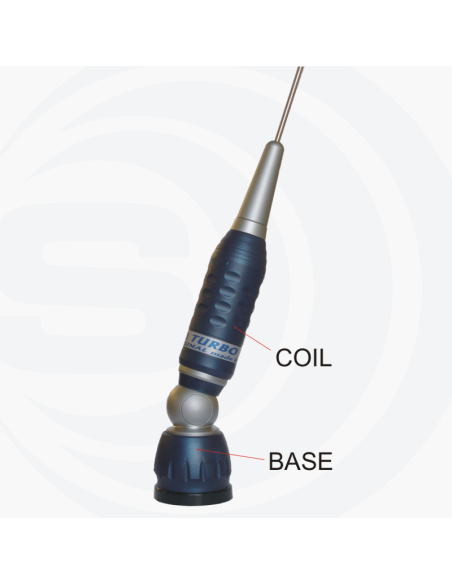

Type: base loaded |
| - |
Frequency range: 27/28.5 MHz |
| - |
Impedance: 50 Ω |
| - |
Polarization: linear vertical |
| - |
Bandwidth @ SWR ≤ 2: TURBO 3000: ≥ 1770 KHz (140 channel) |
| - |
SWR @ res. freq.: ≤ 1.2 |
| - |
Max. power: 200 Watts (CW) continuous 1000 Watts (CW) short time |
| - |

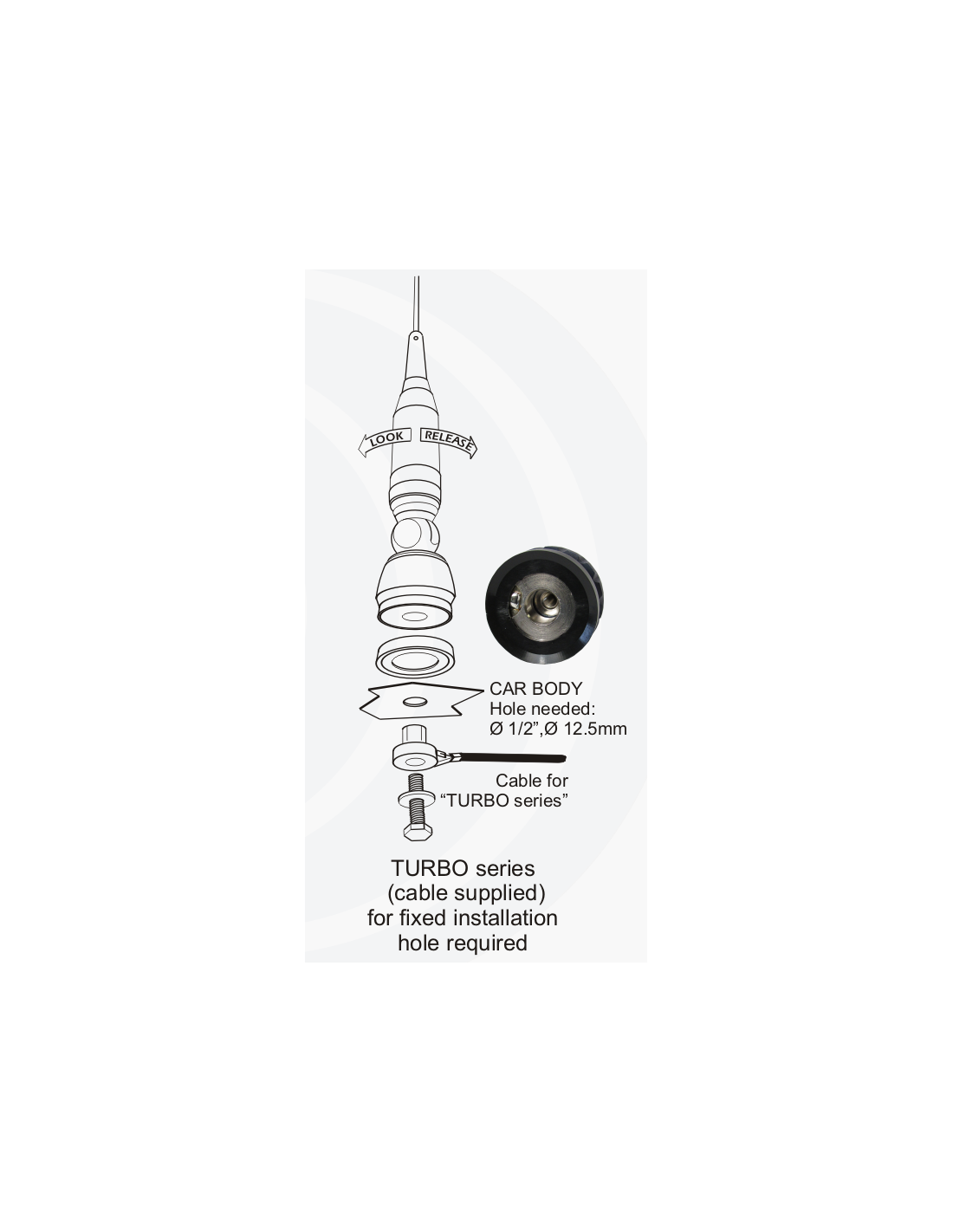

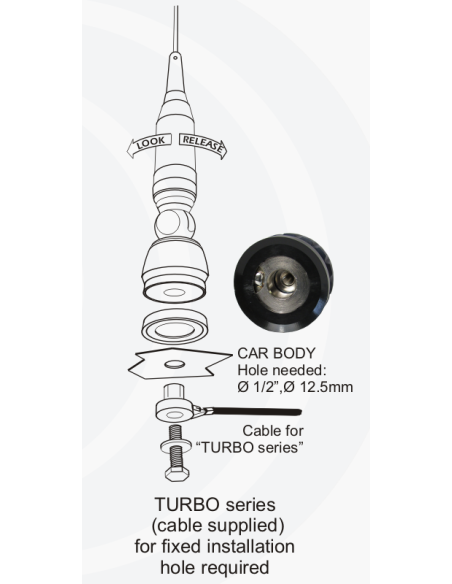

Mounting: TURBO series: hole Ø 12.5 mm |
| - |
Cable lenght / Type: TURBO series: 4 m / RG 58 |
| |
|
| Mechanical Data |
| - |
Materials: Brass, Copper, Nylon, Stainless Steel |
| - |
Height (approx.): TURBO 3000: 1710 mm |
| - |
Weight (approx.): TURBO 3000: 580 gr |
|
