View larger

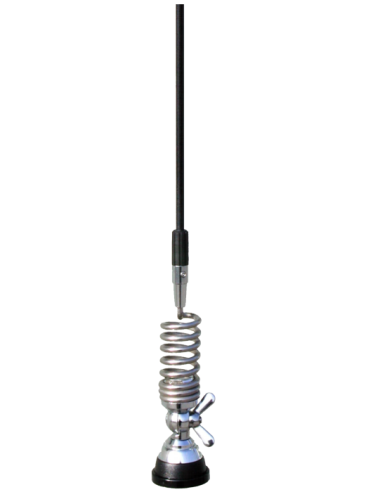

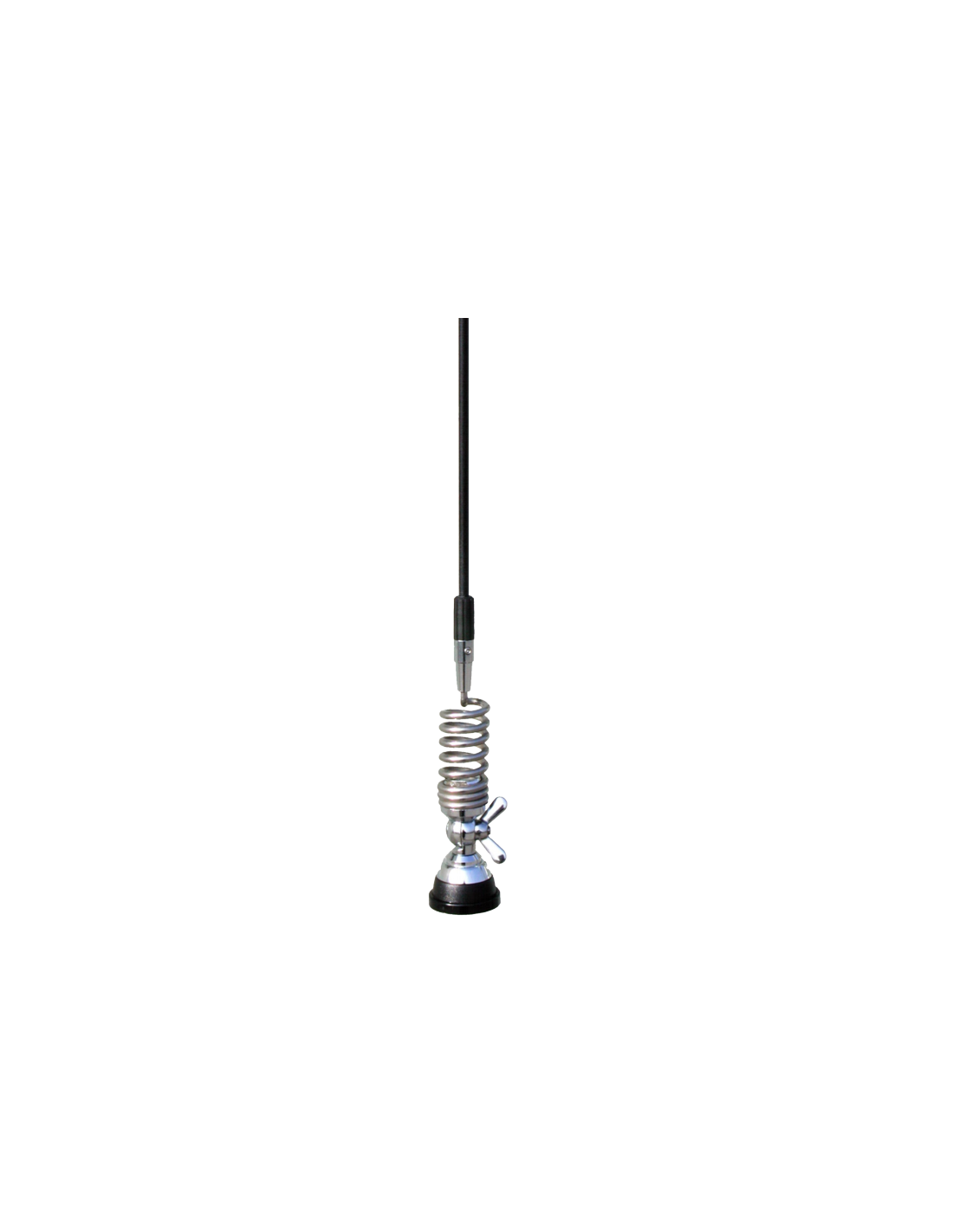

SM 48-140 S SIRIO

Reference: VS 002235

Condition: New product

DUALBAND MOBILE ANTENNA

VHF: 47.5…60.5 MHz LOW 1/4λ /

UHF: 140…175 MHz HIGH 5/8λ /

Tunable /

1340 mm

More details

Type:	LOW-VHF: 1/4 λ HIGH-VHF: 5/8 λ
Radiation:	Omnidirectional
Polarization:	Linear vertical
Frequency range:	47.5 … 60.5 MHz & 140…175 MHz Tunable
Systems:	6m-HAM, 2m-HAM, VHF Marine Band, ORBCOMM M2M, ISM-169MHz
Gain:	LOW-VHF: 0 dB ref. to a λ/4 whip HIGH-VHF: 2 dB ref. to a λ/4 whip
Max Power:	100 W (CW)
Cable lenght / type:	5 m (16.4 ft) / RG58
Connector:	Not supplied

Mechanical Data:

Materials:	Chromed brass, Stainless steel, Stainless Steel 17/7 PH, Fiberglass, Nylon
Height (approx):	1340 mm / 4.4 ft
Weight (approx):	550 gr / 1.21 lb
