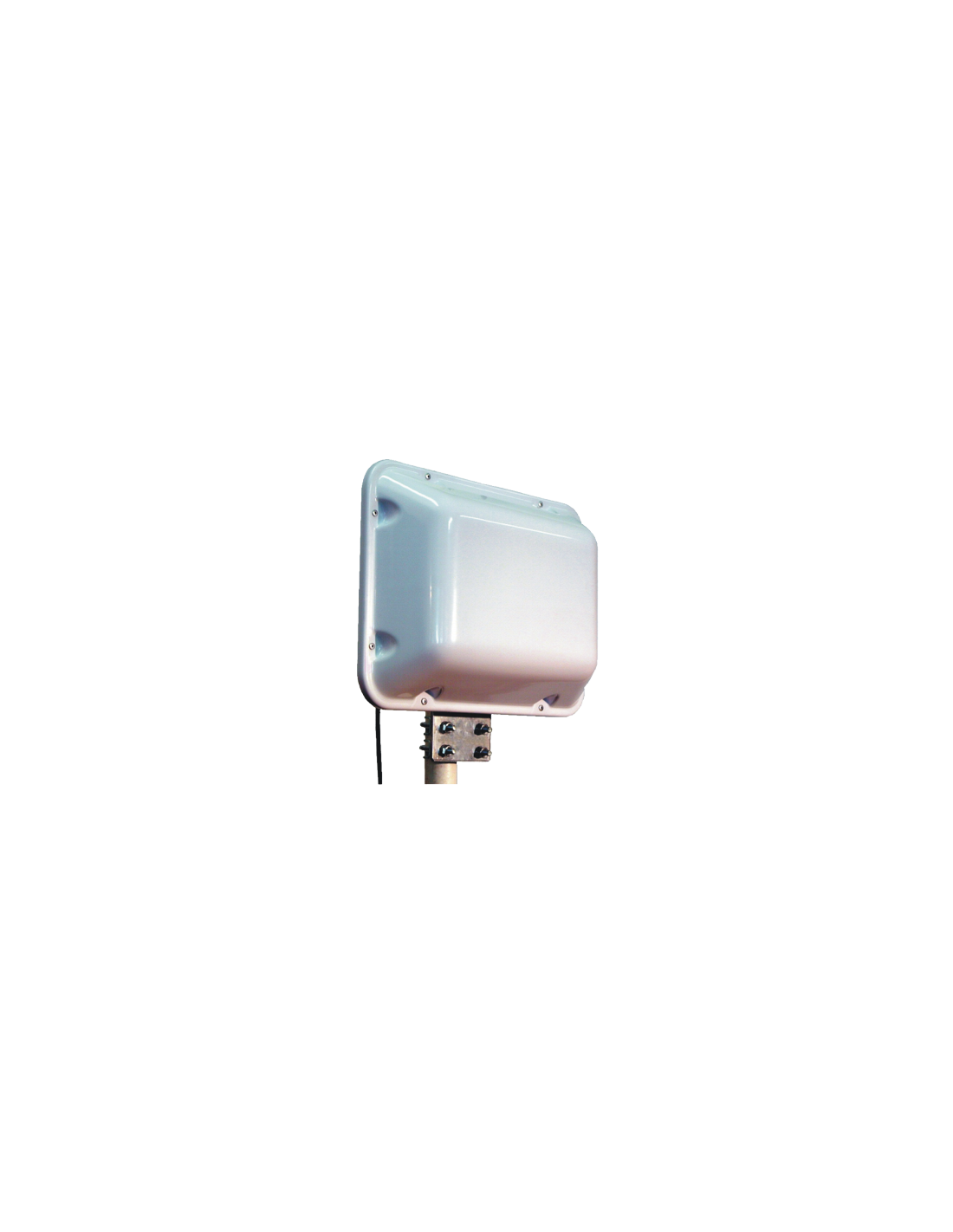

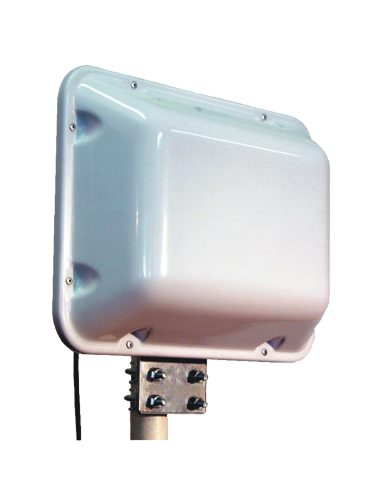

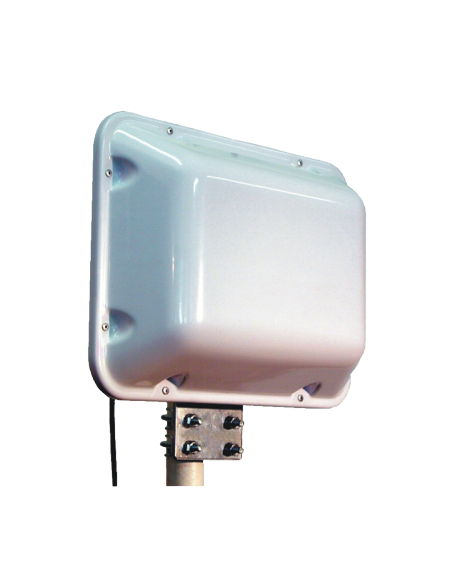

SPB-918-10MULTI/SMA Mâle SIRIO

Reference: VS 000830

Condition: New product

PANEL ANTENNA /

880-960 & 1700-2170 Mhz /

305 x 230 x 66 mm

More details

Electrical Data:

Type:	Panel
Radiation:	Directional
Polarization:	Linear vertical
Frequency range:	880-960 MHz & 1700-2170 MHz No tuning required
Systems:	GSM-900, GSM-1800, 2G-GSM/GPRS/EDGE, 3G-UMTS, ISM-915MHz, DECT
Gain:	7.3 dBd – 9.4 dBi @ 900 MHz 6.6 dBd – 8.7 dBi @ 1.8 GHz
Max Power:	20 W (CW)
Grounding protection:	DC-Ground
Cable lenght / type:	30 cm (11.81 in) / RG58
Connector:	SMA-male

Mechanical Data:

Materials:	Aluminium, Thermoplastic UV stabilized, PCB
Dimensions (approx):	305 x 230 x 66 mm / 1 x 0.75 x 0.22 ft
Weight (approx):	1100 gr / 2.43 lb
Mounting type:	On-Mast
