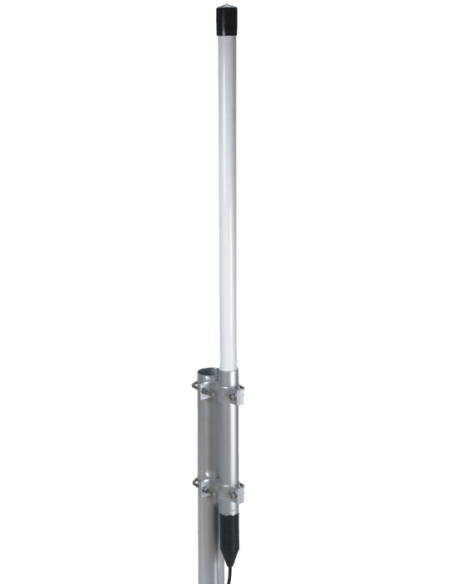

VS 001053
| Type: | 1/2 λ |
| Radiation: | Omnidirectional |
| Polarization: | Linear vertical |
| Frequency range: | 380-470 MHz @ SWR ≤1.5 No tuning required |
| Systems: | 70cm-HAM, TETRA, CDMA-450, LTE-450, ISM-433MHz |
| Gain: | 0 dBd – 2.15 dBi |
| Max Power: | 75 W (CW) |
| Grounding protection: | DC-Ground |
| Connector: | N-female |
Mechanical Data:
| Materials: | Anodized Aluminium, Brass, Stainless steel, Fiberglass, EPDM rubber |
| Height (approx): | 780 mm / 2.56 ft |
| Weight (approx): | 890 gr / 1.96 lb |

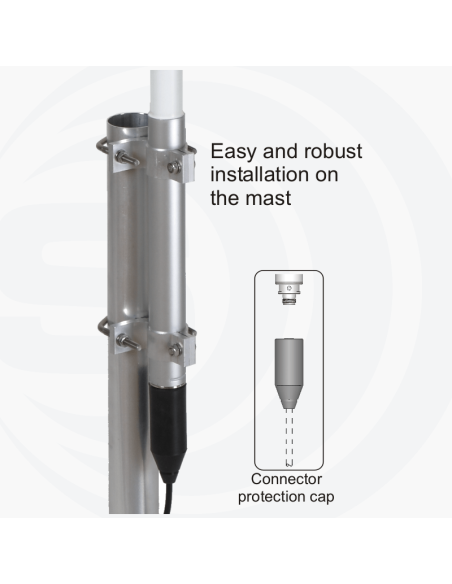

| Mounting type: | On-Mast |
