SMP-LTE 4G MIMO SIRIO

Reference: VS 002405

Condition: New product

PANEL ANTENNA CELLULAIRE

790-960 MHz & 1700-2700 MHz /

153 x 134 x 46 mm

More details

Electrical Data:

Type:	Mini Panel
Radiation:	Directional
Polarization:	Linear vertical
Frequency range:	790-960 MHz & 1700-2700 MHz No tuning required
Systems:	GSM-R, GSM-900, GSM-1800, 2G-GSM/GPRS/EDGE, 3G-UMTS, 4G-LTE, ISM-868MHz, WiFi-2.4GHz
Gain:	5 dBi @ 790-960 MHz 8 dBi @ 1.71-2.7 GHz
Max Power:	20 Watts @ 790-960 MHz 8 Watts @ 1.71-2.7 GHz
Cable lenght / type:	30 cm (11.81 in) / RG316 PTFE
Connector:	2 x SMA-male

Mechanical Data:

Materials:	Galvanized steel, Thermoplastic UV stabilized, PCB
Dimensions (approx):	153 x 134 x 46 mm / 0.5 x 0.44 x 0.15 ft
Weight (approx):	400 gr / 0.88 lb

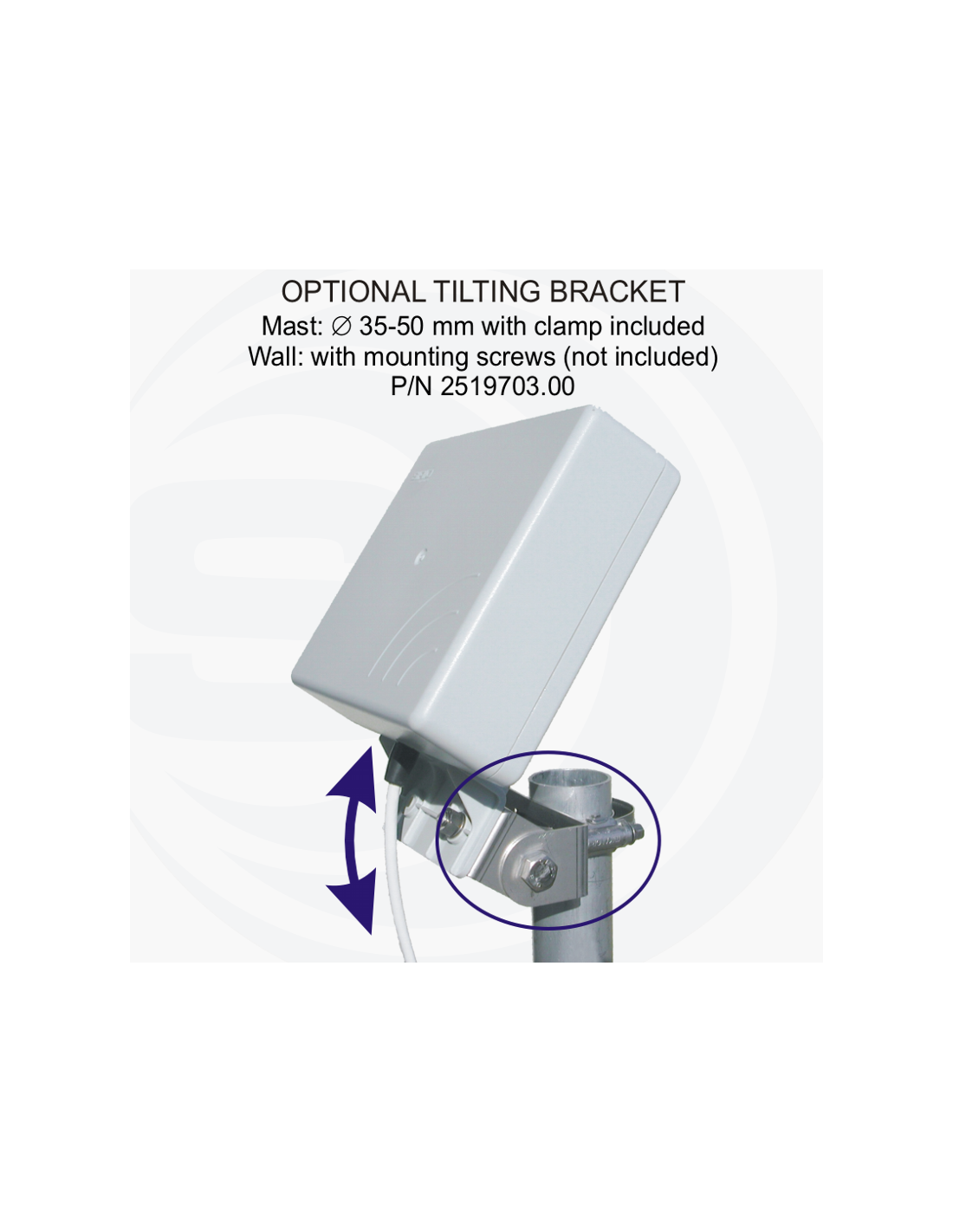

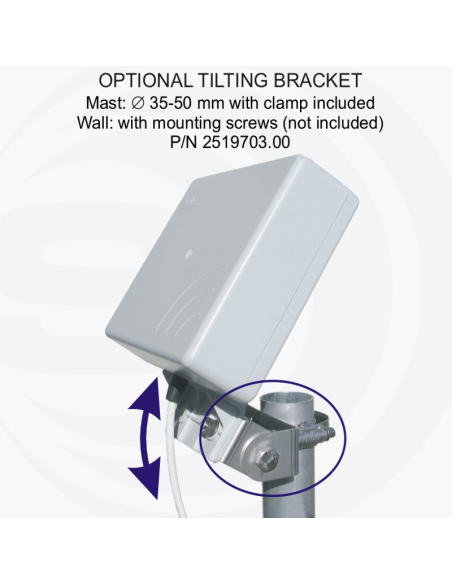

Mounting type:	On-Mast, On-Wall
