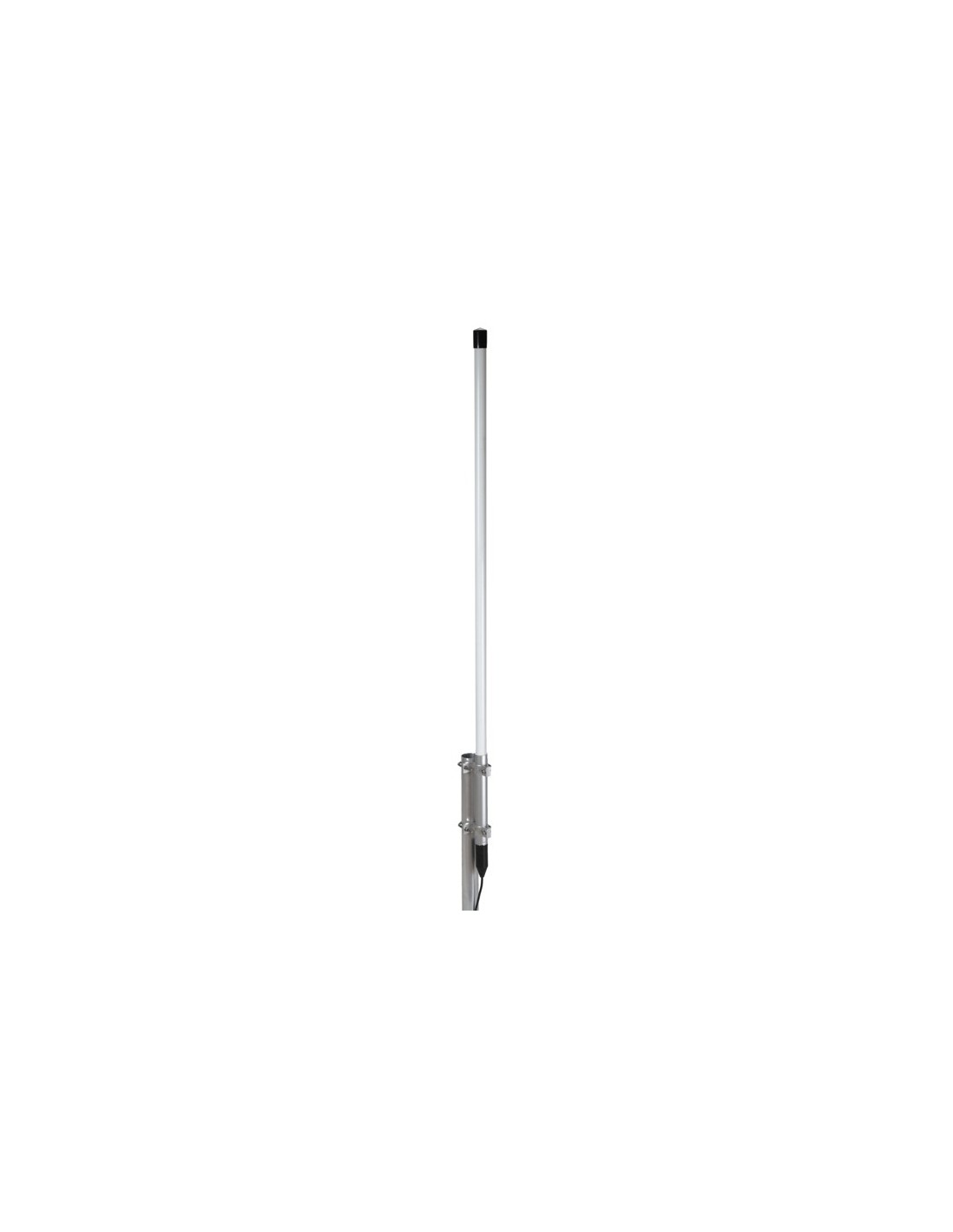

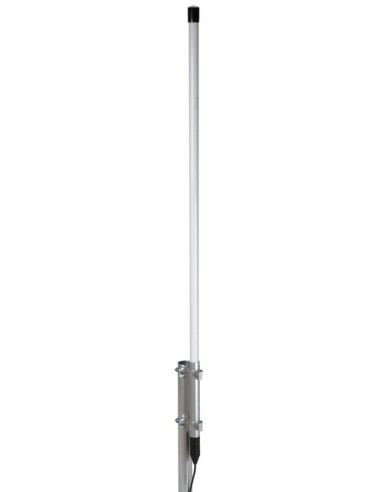

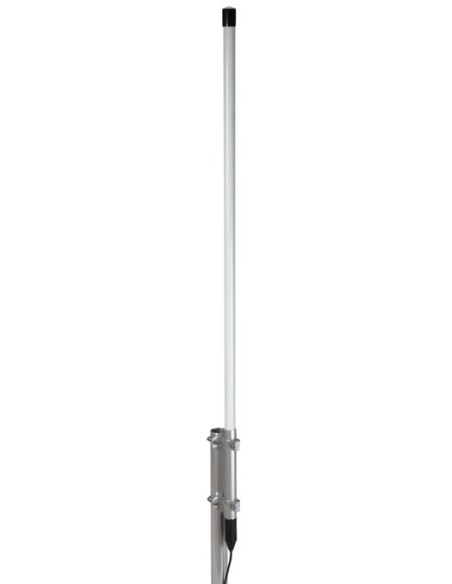

SPO-420-5 SIRIO

VS 002100

New product

BASE ANTENNA UHF

Colinear /

420-470 MHz @ SWR ≤1.5 /

1380 mm

More details

175,00 € tax incl.

More info

Type: Colinear
Radiation: Omnidirectional
Polarization: Linear vertical
Frequency range:
420-470 MHz @ SWR ≤1.5 No tuning required
Systems: 70cm-HAM, TETRA-350, TETRA, CDMA-450, LTE-450, ISM-433MHz
Gain: 3 dBd – 5.15 dB
Max Power: 75 W (CW)
Grounding protection: DC-Ground
Connector: N-female
Mechanical Data:
Materials: Anodized Aluminium, Brass, Stainless steel, Fiberglass, EPDM rubber
Height (approx): 1380 mm / 4.53 ft
Weight (approx):
1200 gr / 2.65 lb

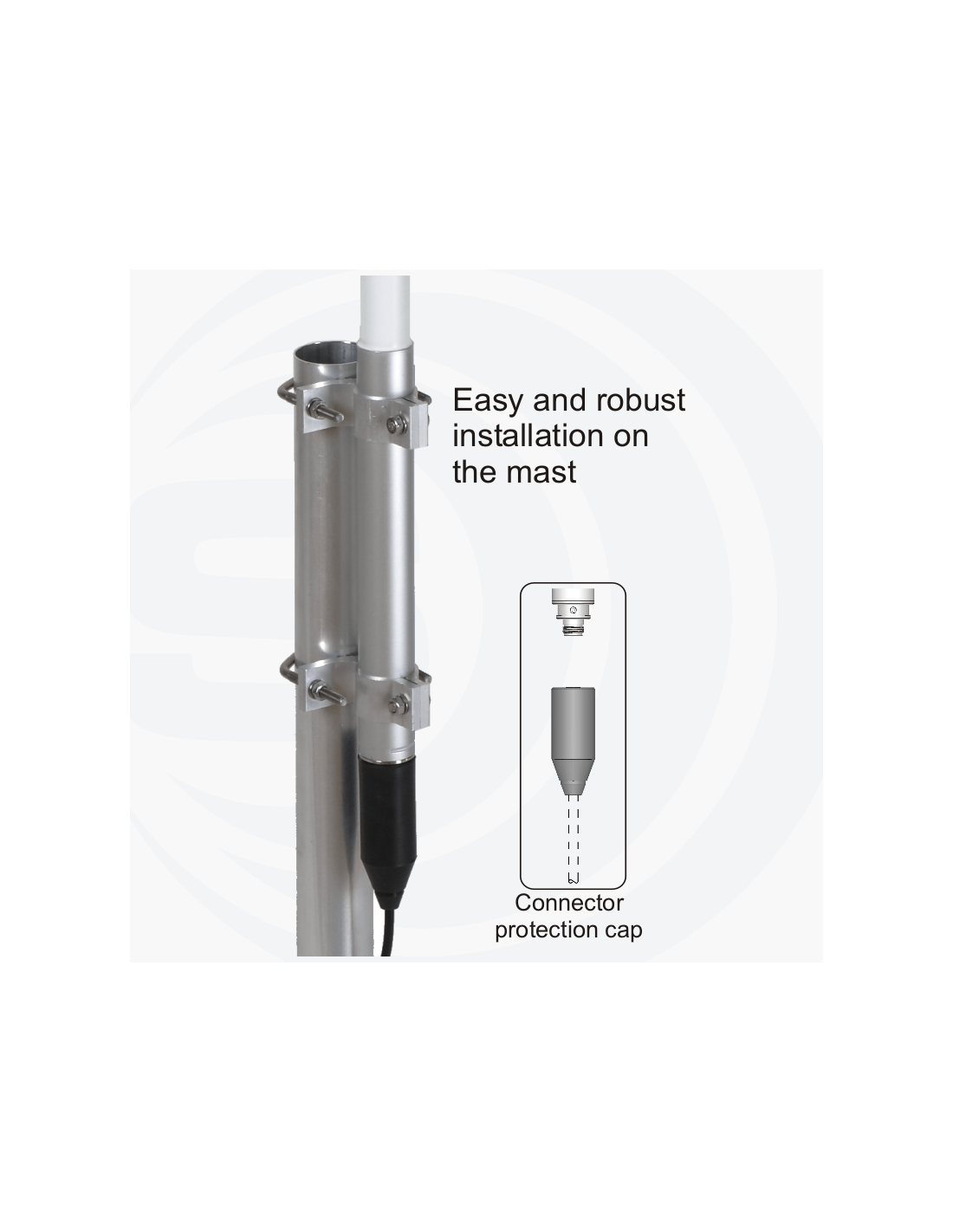

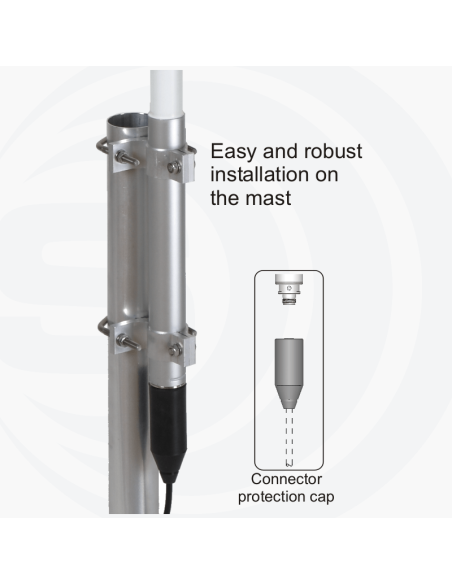

Mounting type: On-Mast

Related Products

Download

PRODUCT MANUAL SPO 420-5

Download (2.9M)
