WY 400-10N SIRIO

Reference: VS 000795

Condition: New product

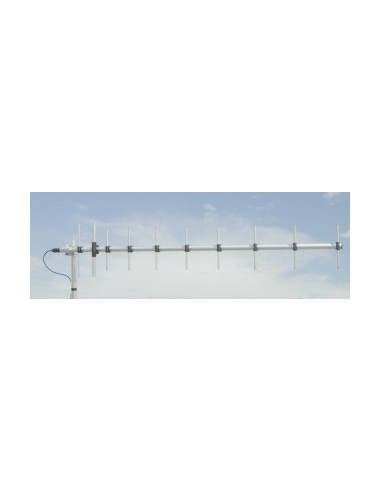

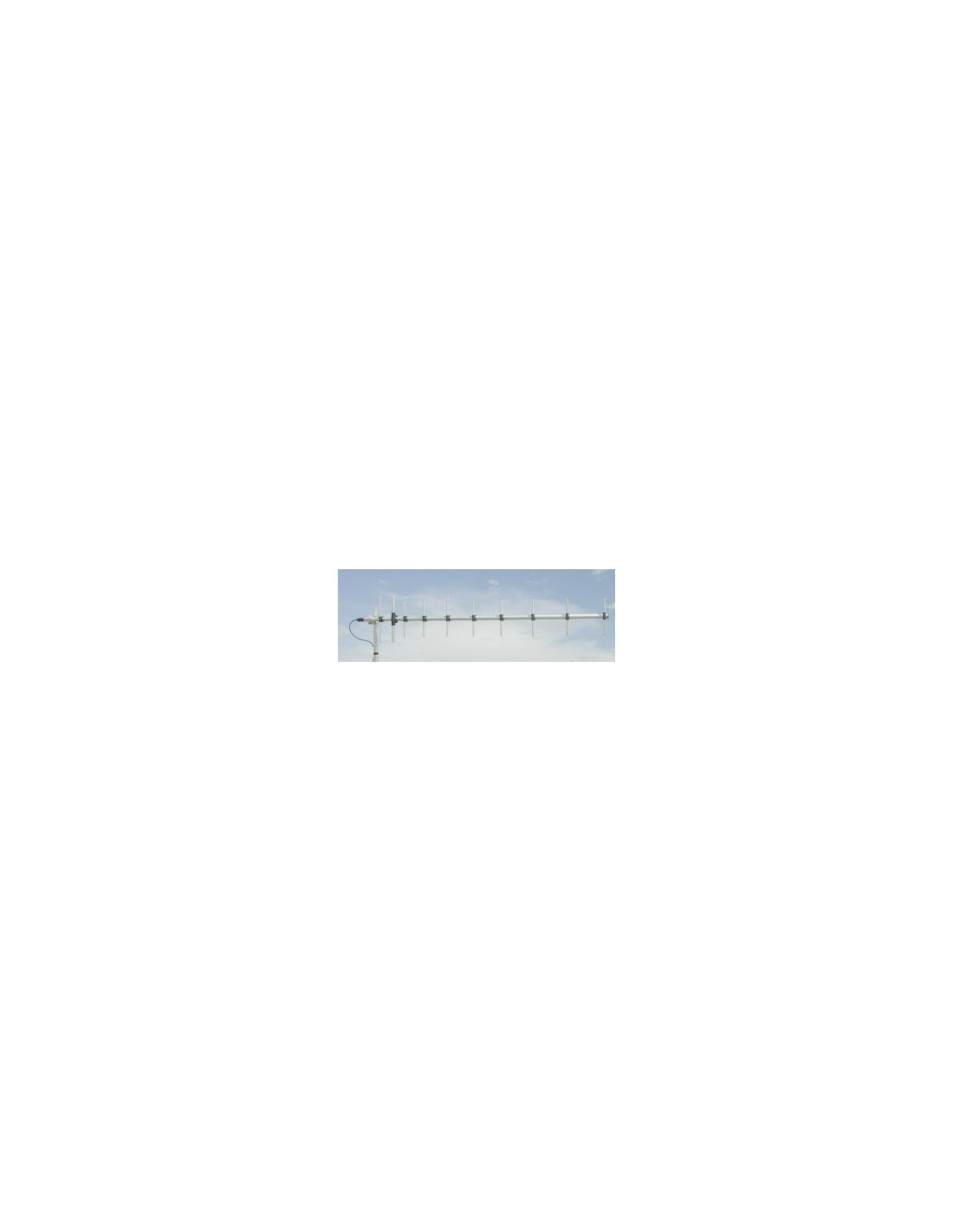

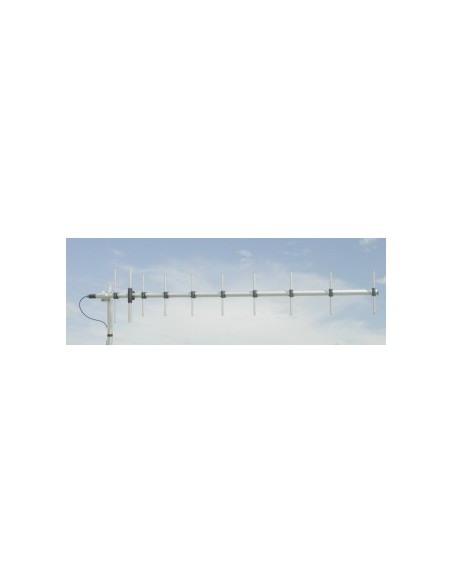

DIRECTIONAL BASE ANTENNA

10 elements Yagi /

400-470 MHz /

11.85 dBd – 14 dBi /

2000 x 375 mm

More details

Type:	10 elements Yagi
Radiation:	Directional
Polarization:	Linear Vertical or Horizontal
Frequency range:	400-470 MHz @ SWR ≤1.5 No tuning required
Systems:	70cm-HAM, TETRA, CDMA-450, LTE-450, ISM-433MHz
Gain:	11.85 dBd – 14 dBi
Max Power:	150 W (CW)
Grounding protection:	DC-Ground

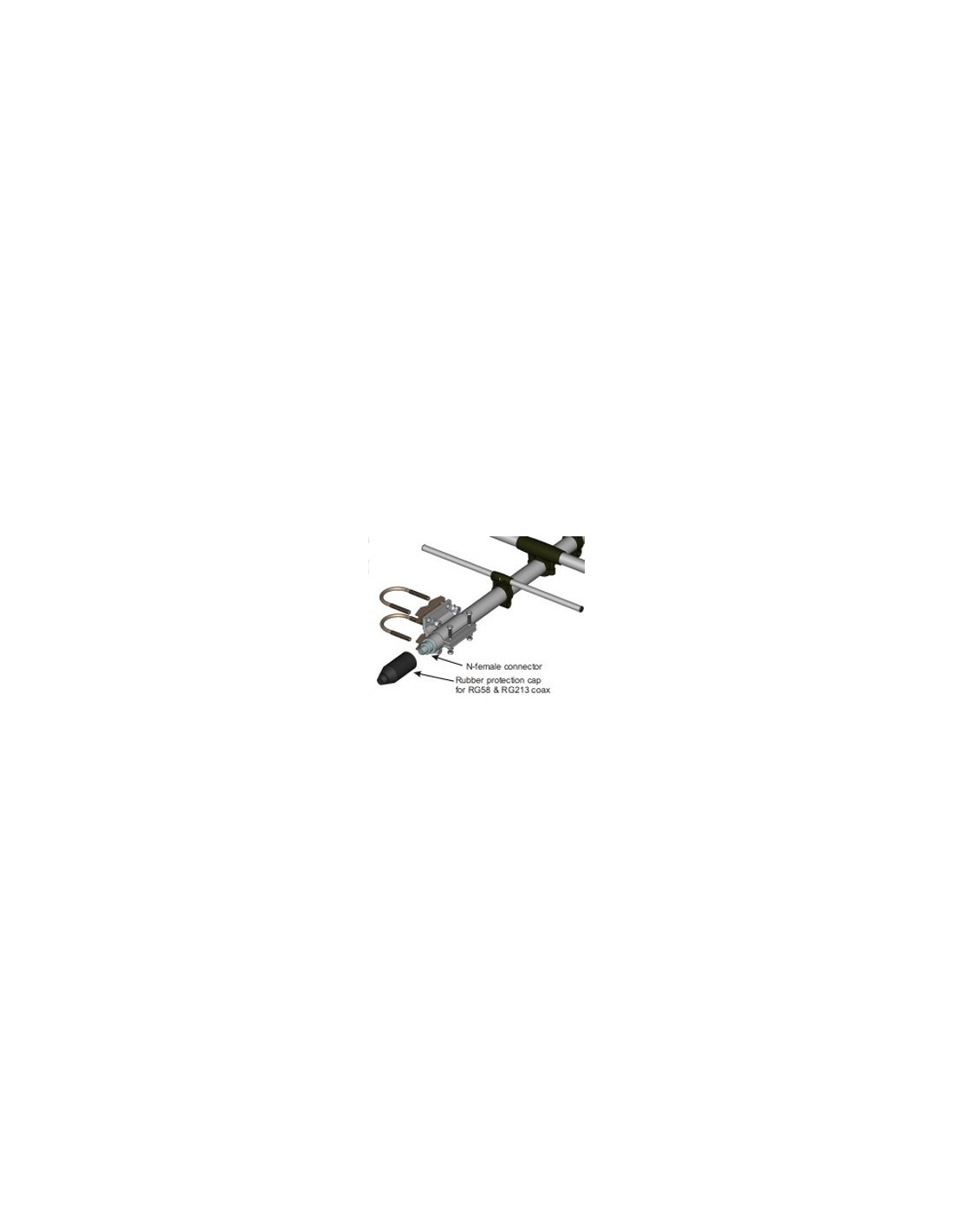

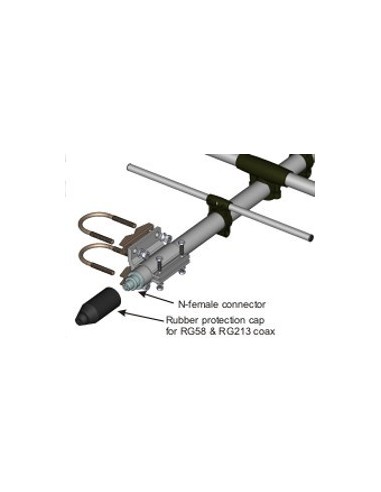

Connector:	N-female

Mechanical Data:

Materials:	Anodized Aluminium, Chromed brass, Thermoplastic UV stabilized, EPDM rubber
Dimensions (approx):	2000 x 375 mm / 6.56 x 1.23 ft
Weight (approx):	2040 gr / 4.5 lb

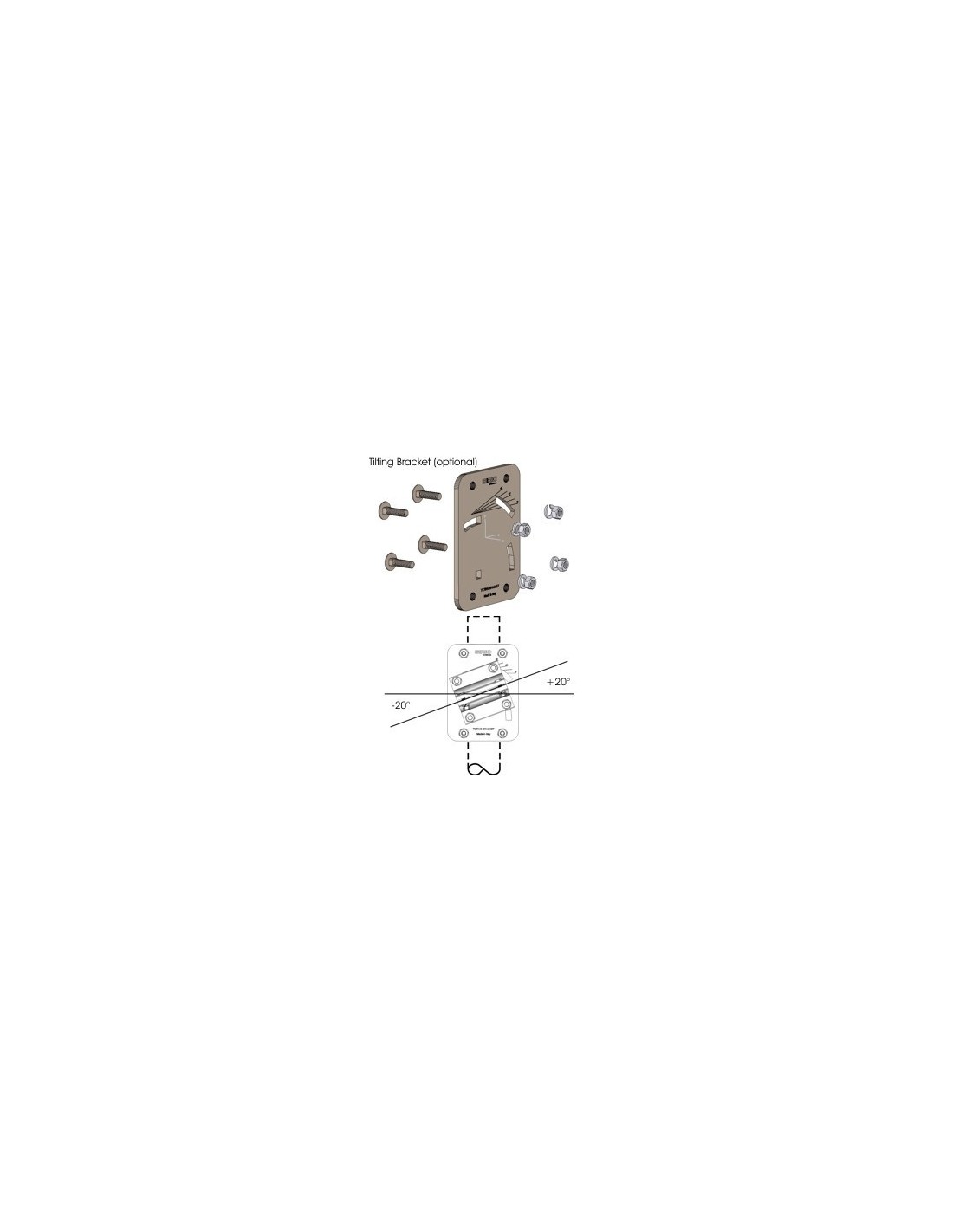

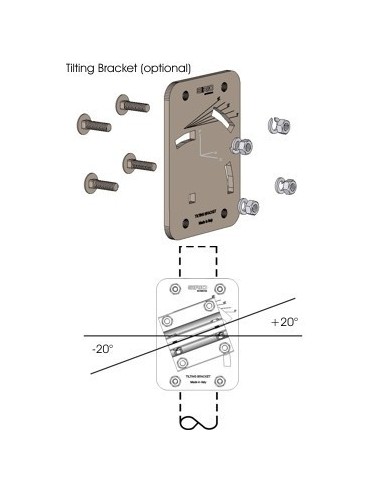

Mounting type:	On-Mast
