> >>>WY 400-6N SIRIO
WY 400-6N SIRIO View larger
Previous Next

WY 400-6N SIRIO

VS 000785

New product

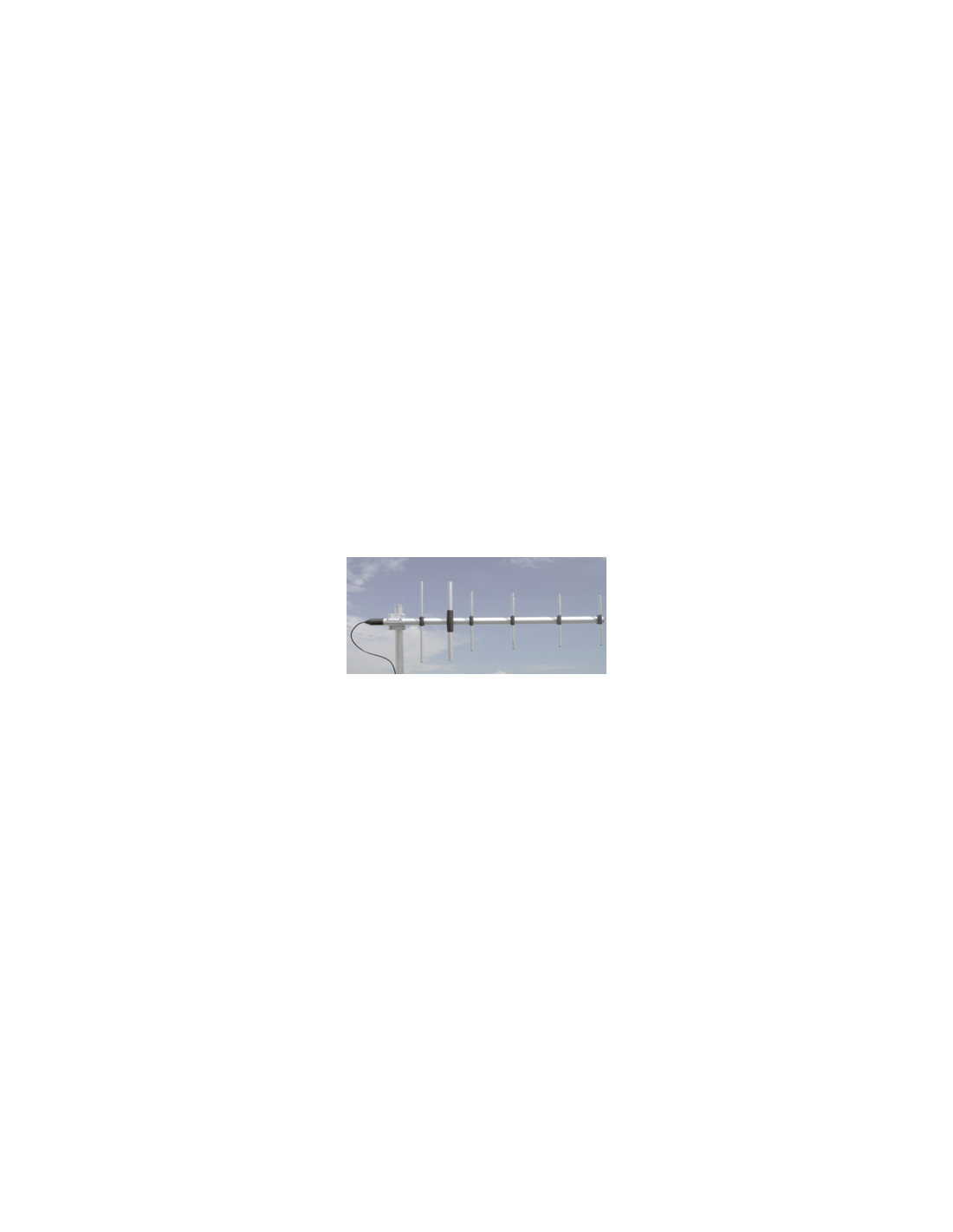

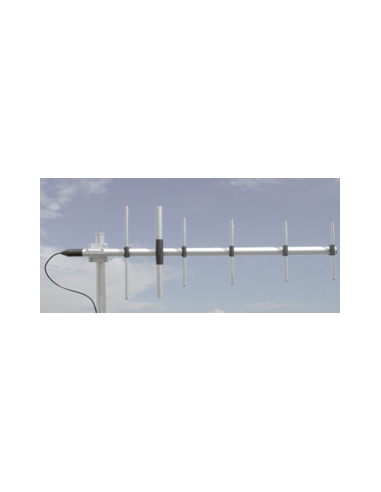

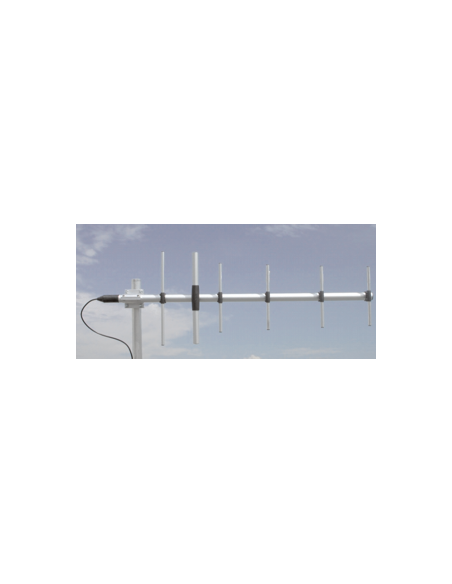

DIRECTIONAL BASE ANTENNA

6 elements Yagi /

400-470 MHz /

8.85 dBd – 11 dBi /

1130 x 375 mm

More details

138,00 € tax incl.

More info

Electrical Data:
Type: 6 elements Yagi
Radiation: Directional
Polarization: Linear Horizontal
Frequency range:
400-470 MHz @ SWR ≤1.5 No tuning required
Systems: 70cm-HAM, TETRA, CDMA-450, LTE-450, ISM-433MHz
Gain: 8.85 dBd – 11 dBi
Max Power: 150 W (CW)
Grounding protection: DC-Ground
Connector: N-female
Mechanical Data:
Materials: Anodized Aluminium, Chromed brass, Thermoplastic UV stabilized, EPDM rubber
Dimensions (approx):
1130 x 375 mm / 3.71 x 1.23 ft
Weight (approx):
1490 gr / 3.28 lb

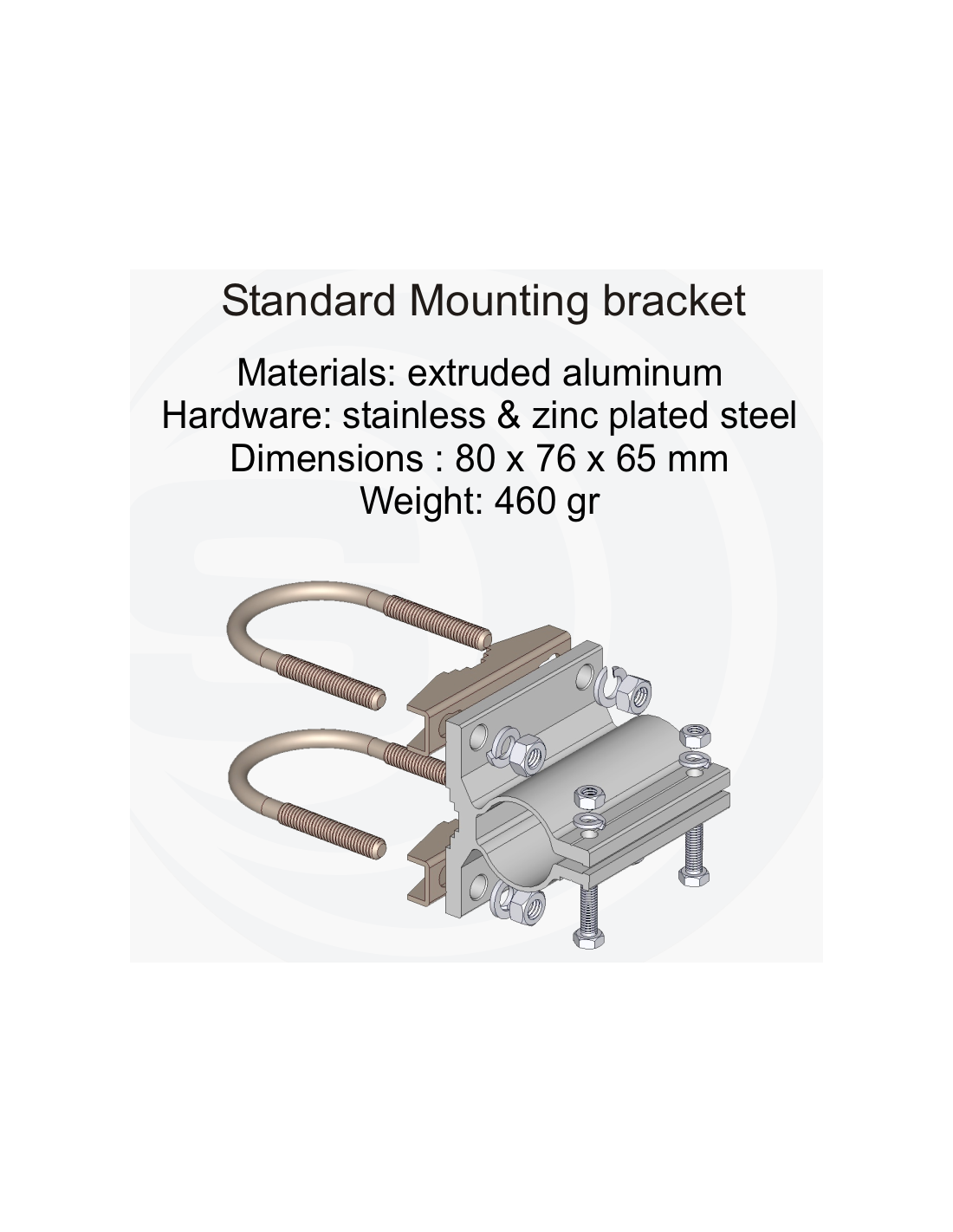

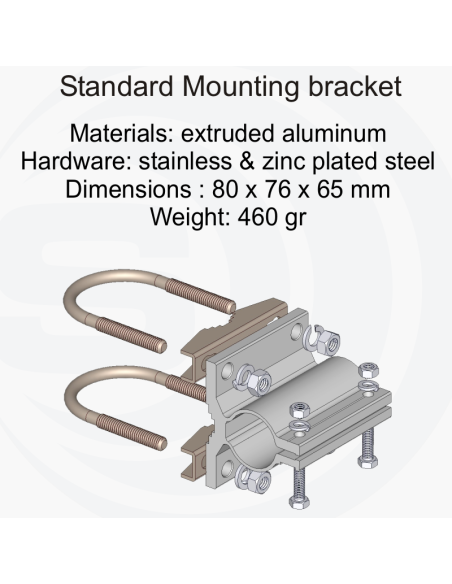

Mounting type: On-Mast

Related Products

Download

PRODUCT MANUAL WY 400-6N

Download (1.19M)
