WY 400-3N SIRIO

VS 000775

New product

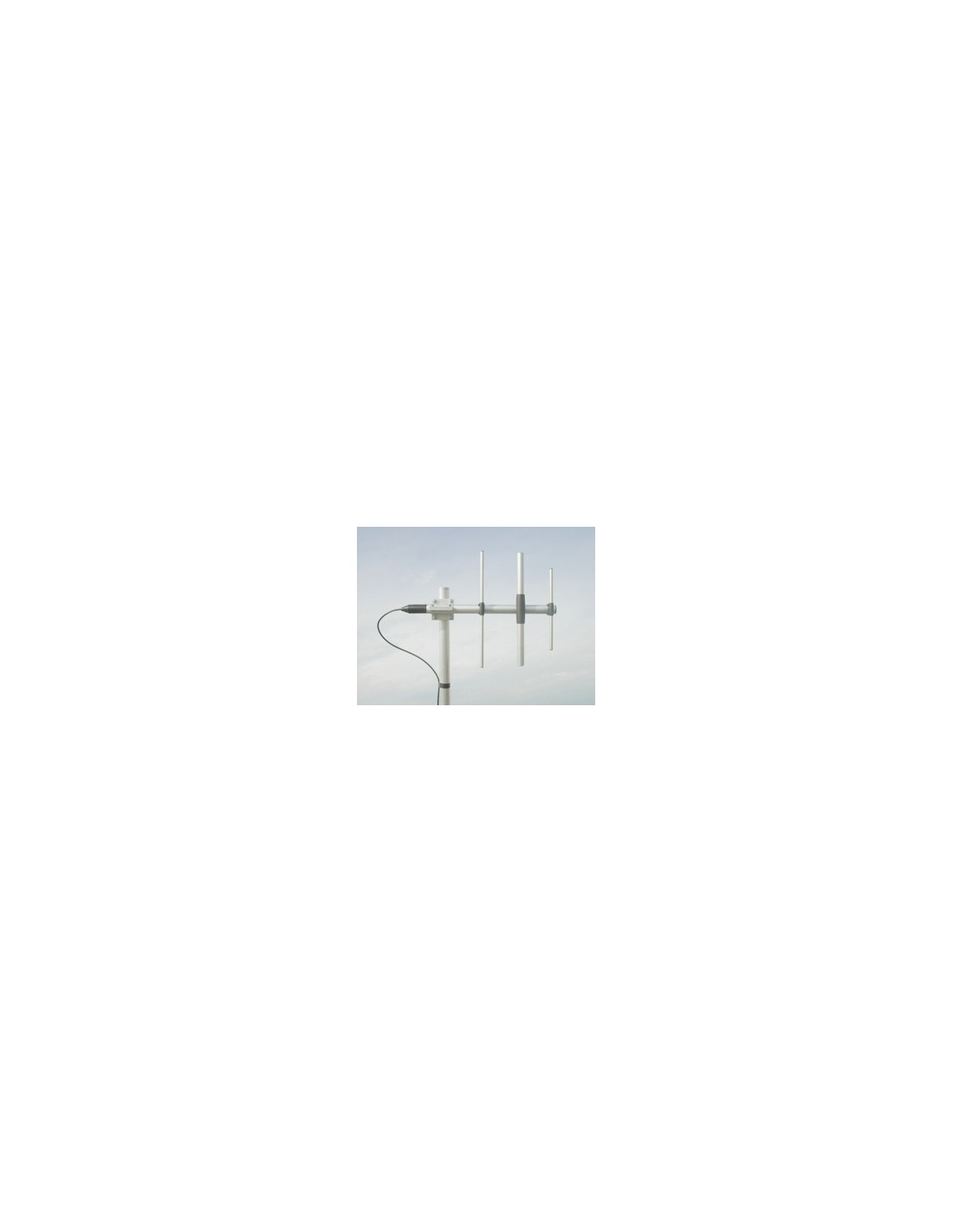

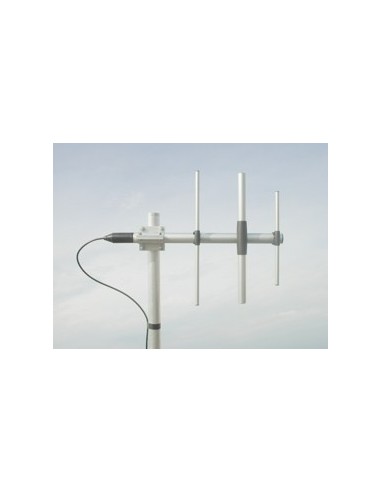

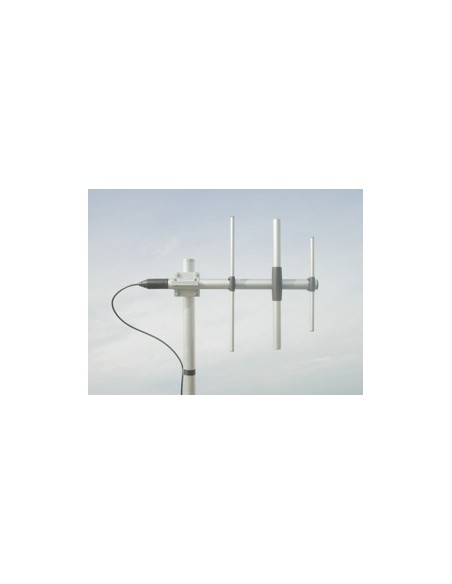

DIRECTIONAL BASE ANTENNA

3 elements Yagi /

400-470 MHz /

4.85 dBd – 7 dBi /

525 x 375 mm

More details

117,00 € tax incl.

More info

Electrical Data:
Type: 3 elements Yagi
Radiation: Directional
Polarization: Linear Horizontal
Frequency range:
400-470 MHz @ SWR ≤1.5 No tuning required
Systems: 70cm-HAM, TETRA, CDMA-450, LTE-450, ISM-433MHz
Gain: 4.85 dBd – 7 dBi
Max Power: 150 W (CW)
Grounding protection: DC-Ground

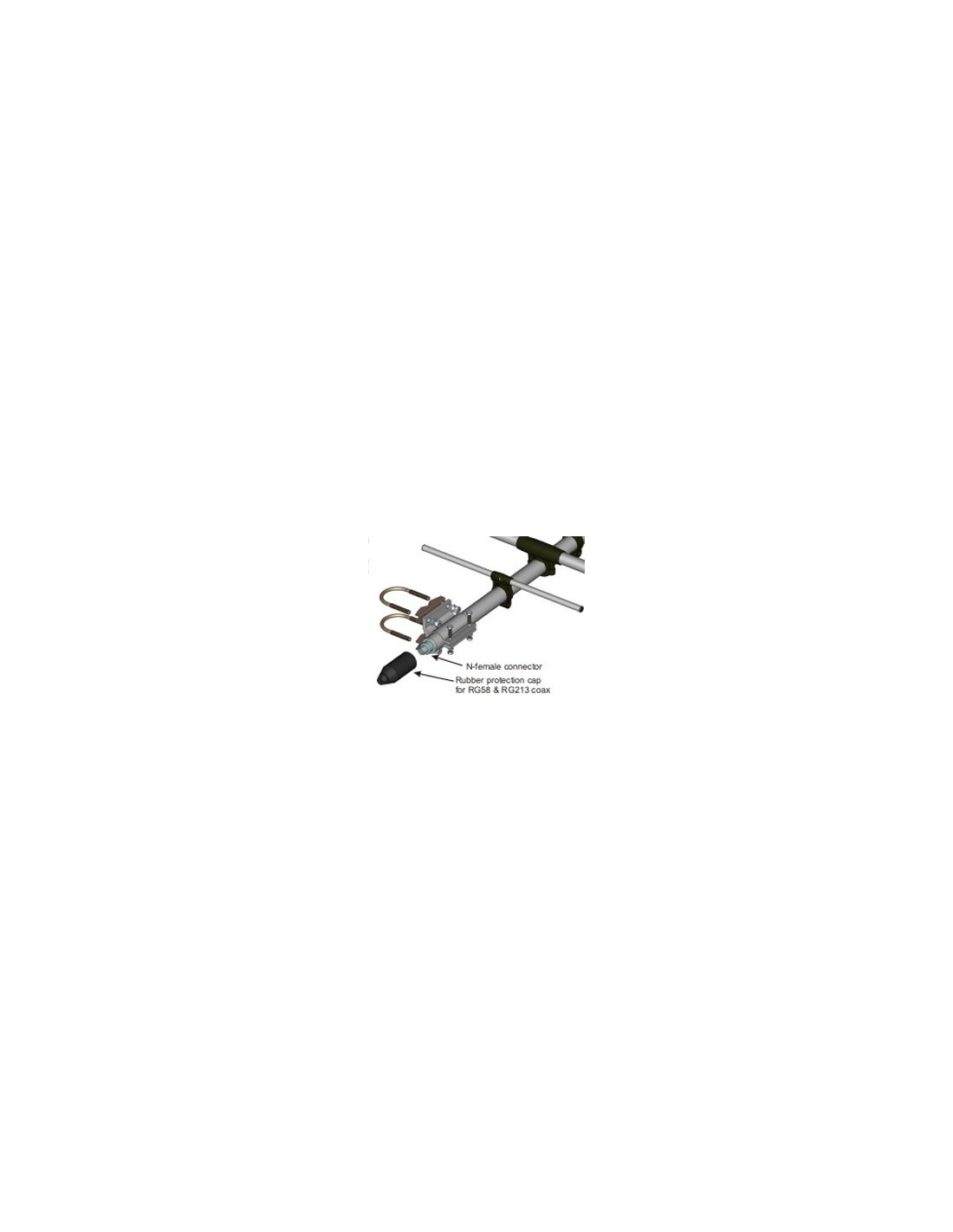

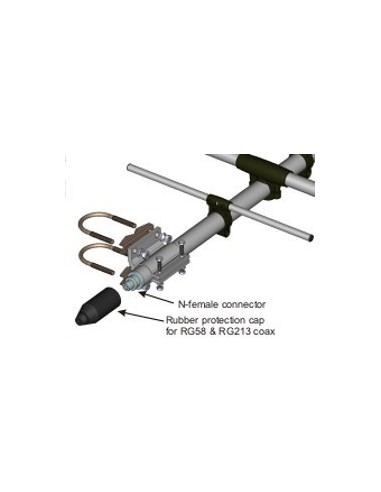

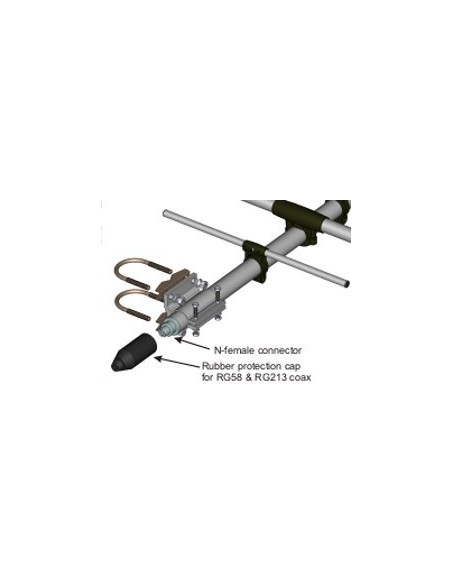

Connector: N-female
Mechanical Data:
Materials: Anodized Aluminium, Chromed brass, Thermoplastic UV stabilized, EPDM rubber
Dimensions (approx):
525 x 375 mm / 1.72 x 1.23 ft
Weight (approx):
1100 gr / 2.43 lb

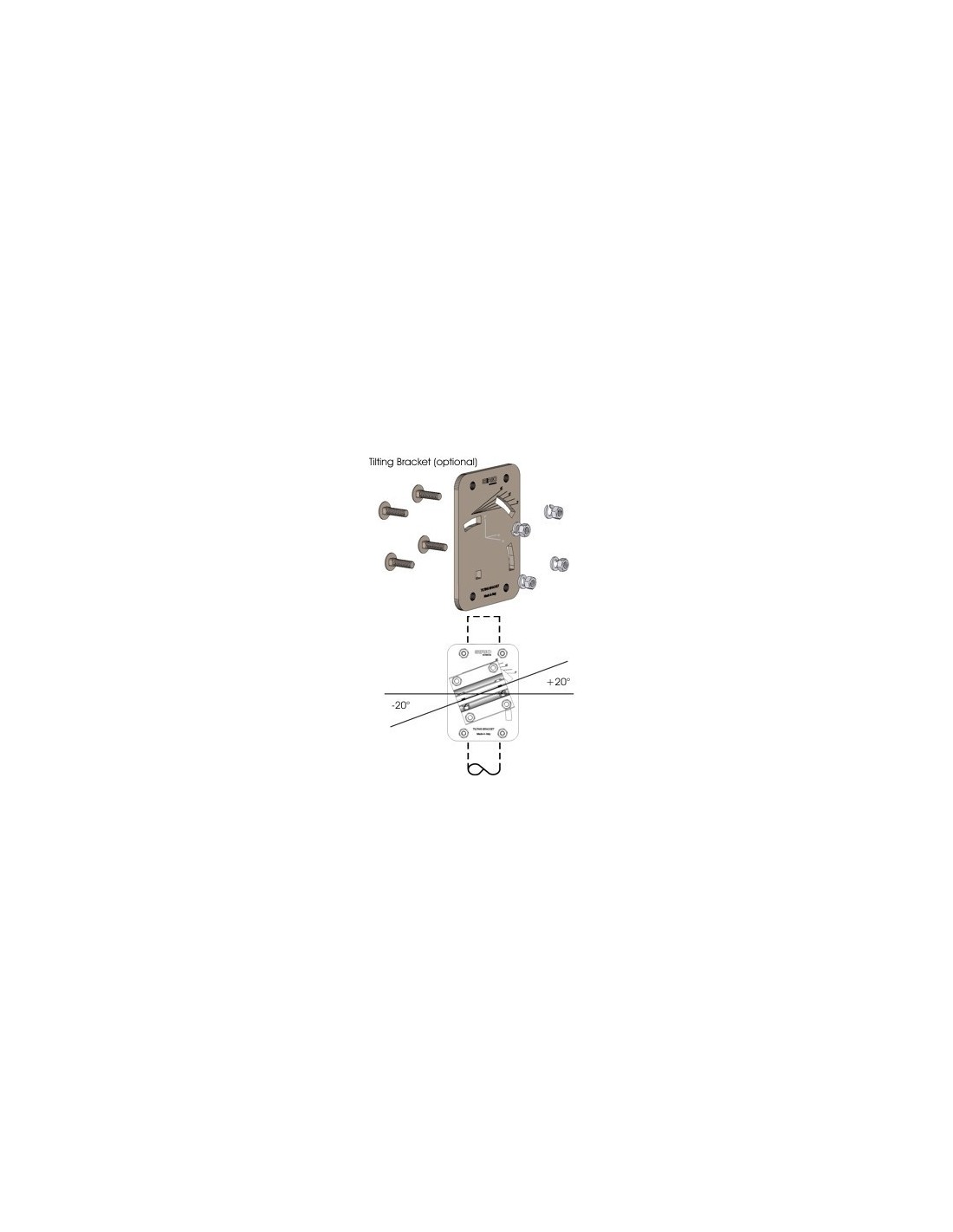

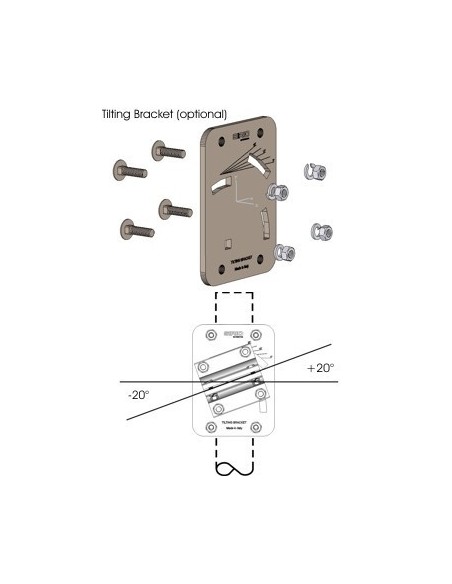

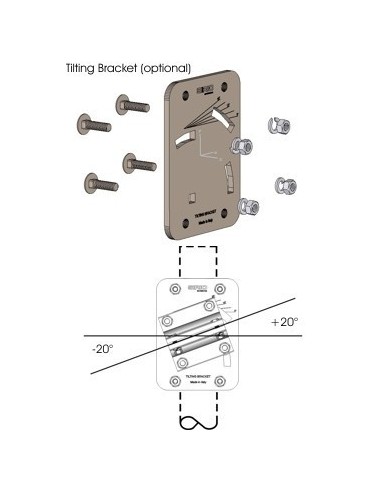

Mounting type: On-Mast

Related Products

Download

PRODUCT MANUAL WY 400-3N

Download (1.15M)
