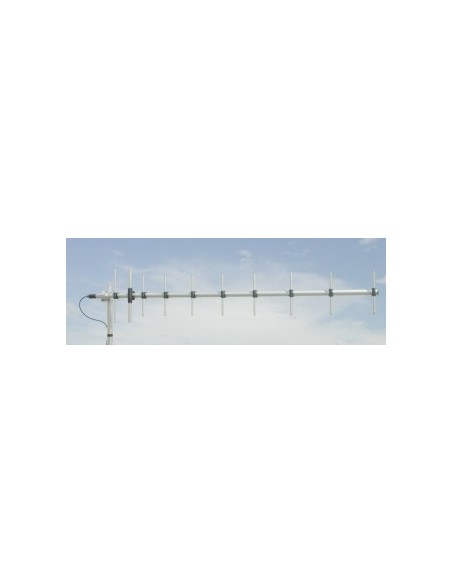

WY 380-10N SIRIO

Reference: VS 000790

Condition: New product

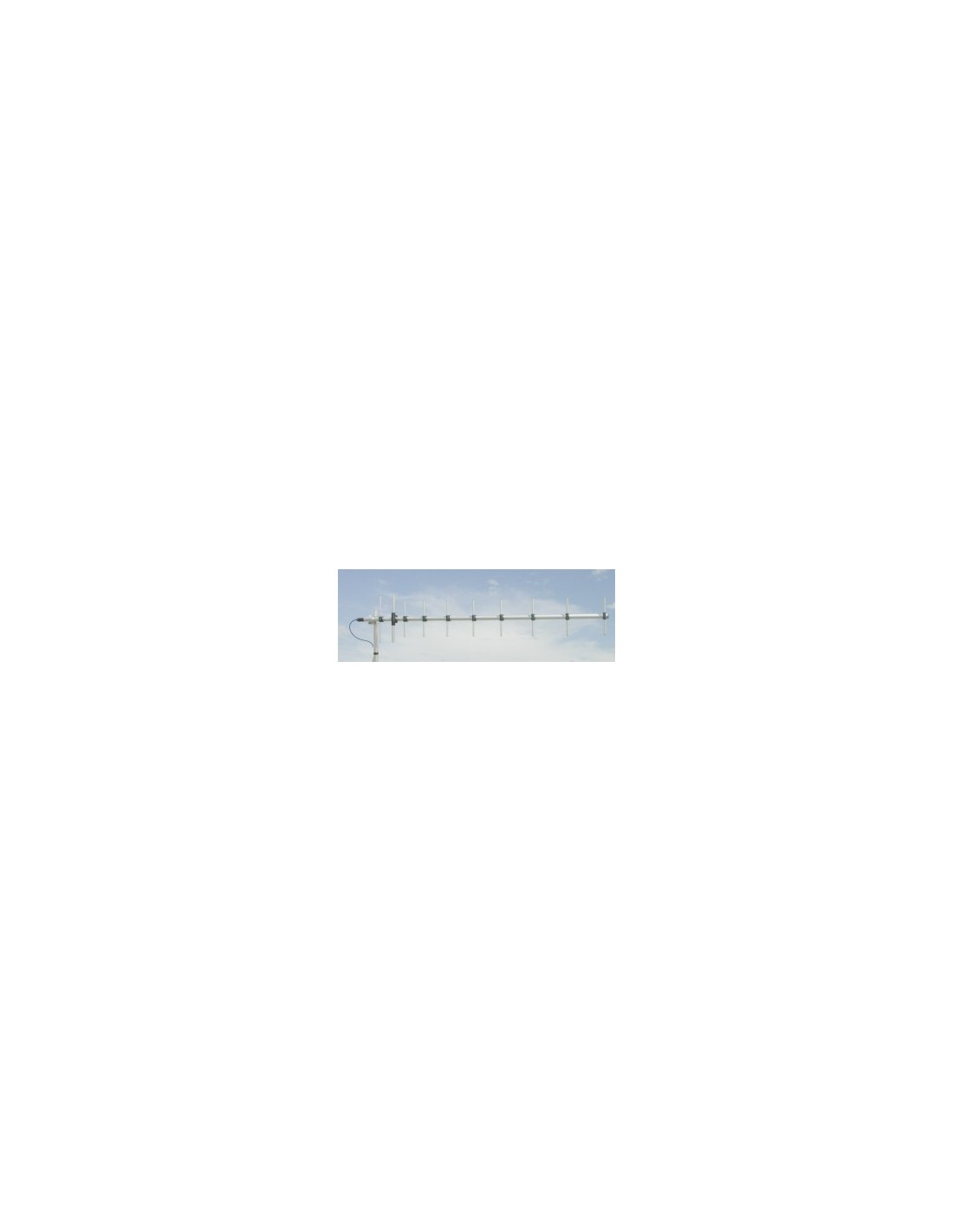

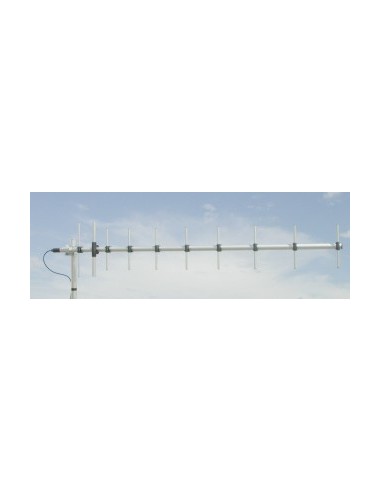

DIRECTIONAL BASE ANTENNA

10 elements Yagi /

380-440 MHz/

11.85 dBd – 14 dBi /

2125 x 400 mm

More details

Electrical Data:

Type:	10 elements Yagi
Radiation:	Directional
Polarization:	Linear Vertical or Horizontal
Frequency range:	380-440 MHz @ SWR ≤1.5 No tuning required
Systems:	70cm-HAM, TETRA, CDMA-450, LTE-450, ISM-433MHz
Gain:	11.85 dBd – 14 dBi
Max Power:	150 W (CW)
Grounding protection:	DC-Ground

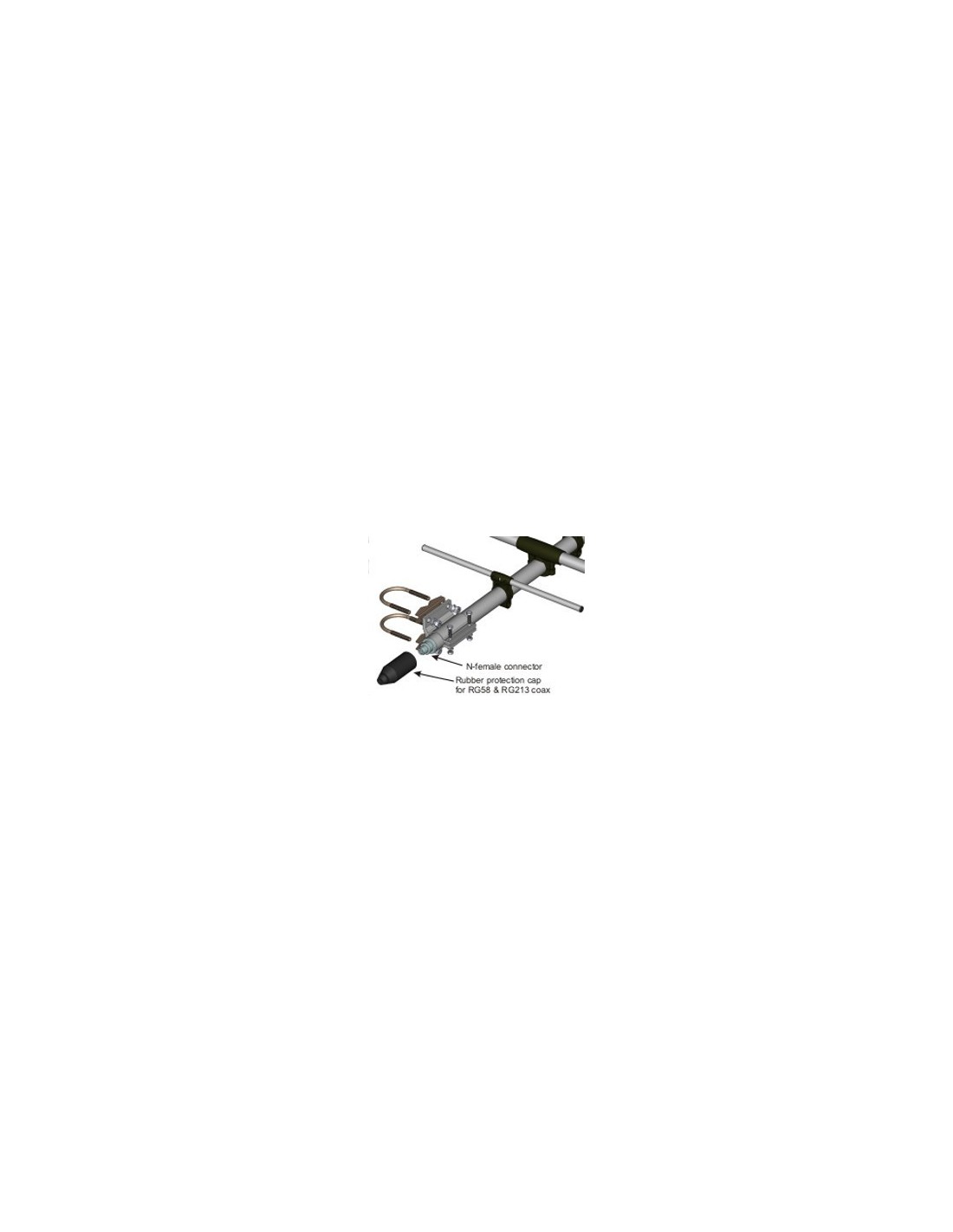

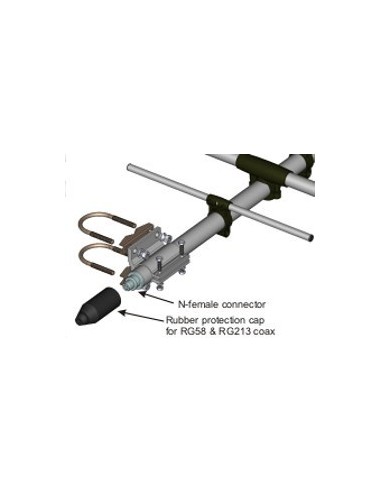

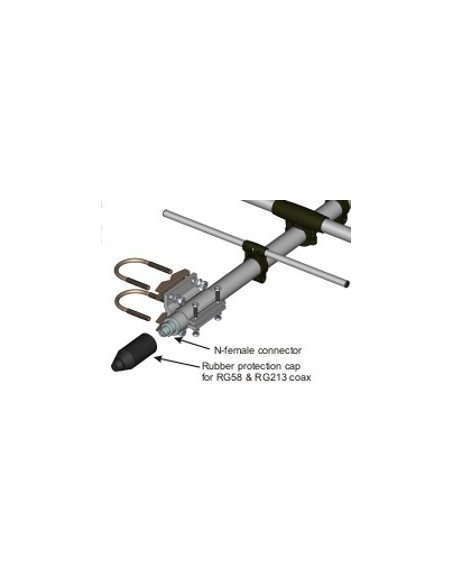

Connector:	N-female

Mechanical Data:

Materials:	Anodized Aluminium, Chromed brass, Thermoplastic UV stabilized, EPDM rubber
Dimensions (approx):	2125 x 400 mm / 6.97 x 1.31 ft
Weight (approx):	2120 gr / 4.67 lb

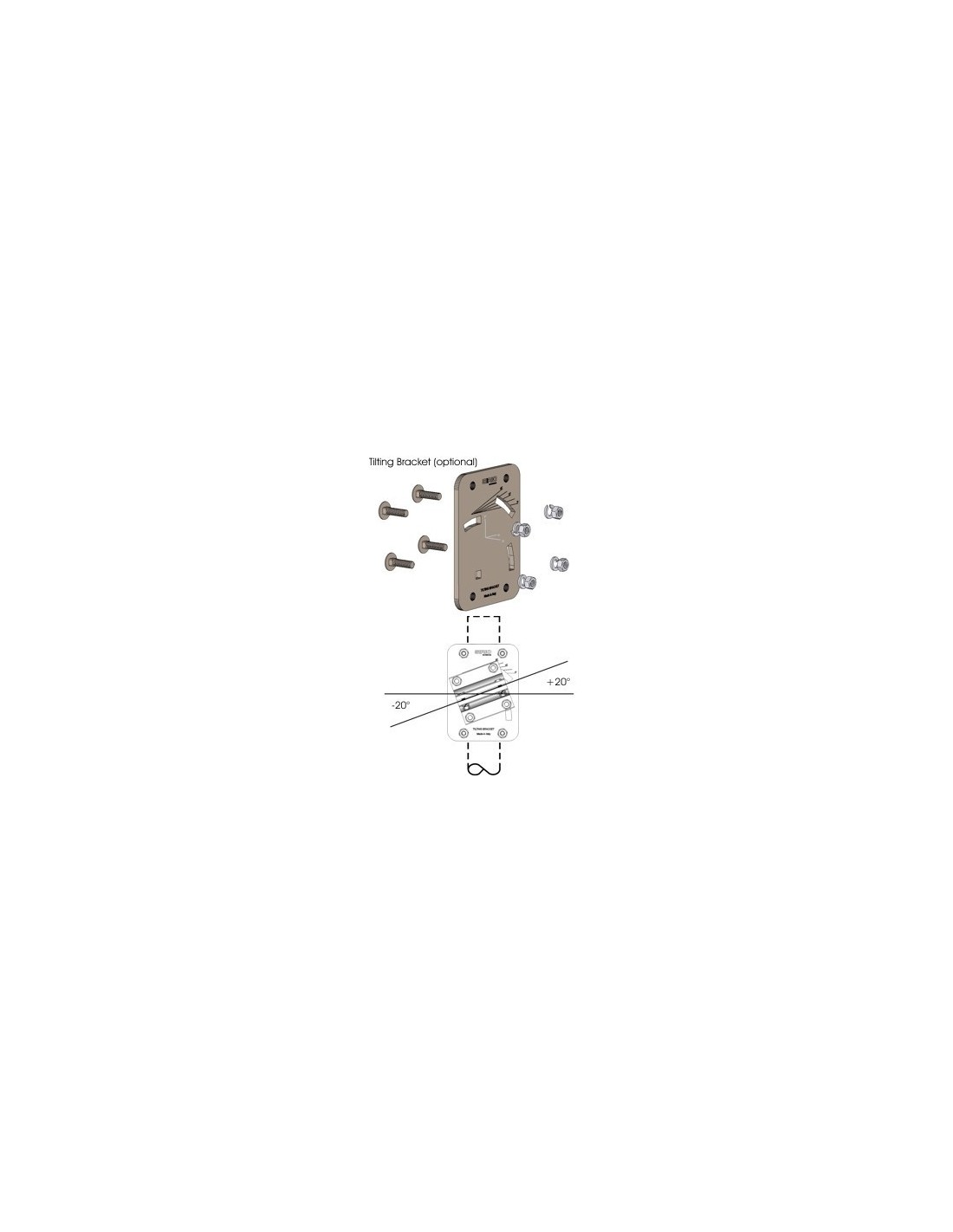

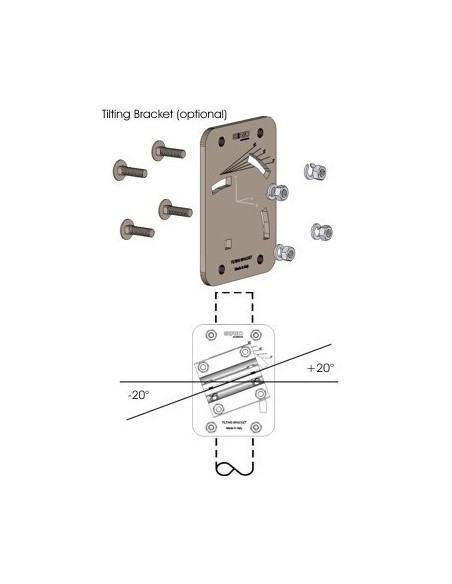

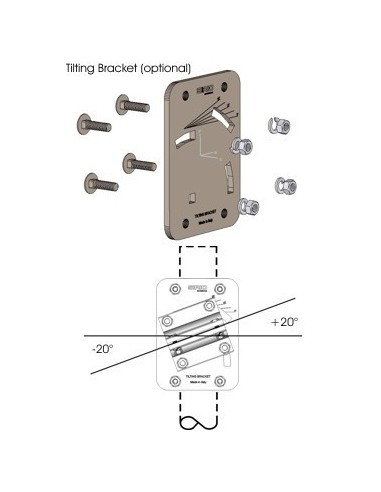

Mounting type:	On-Mast
