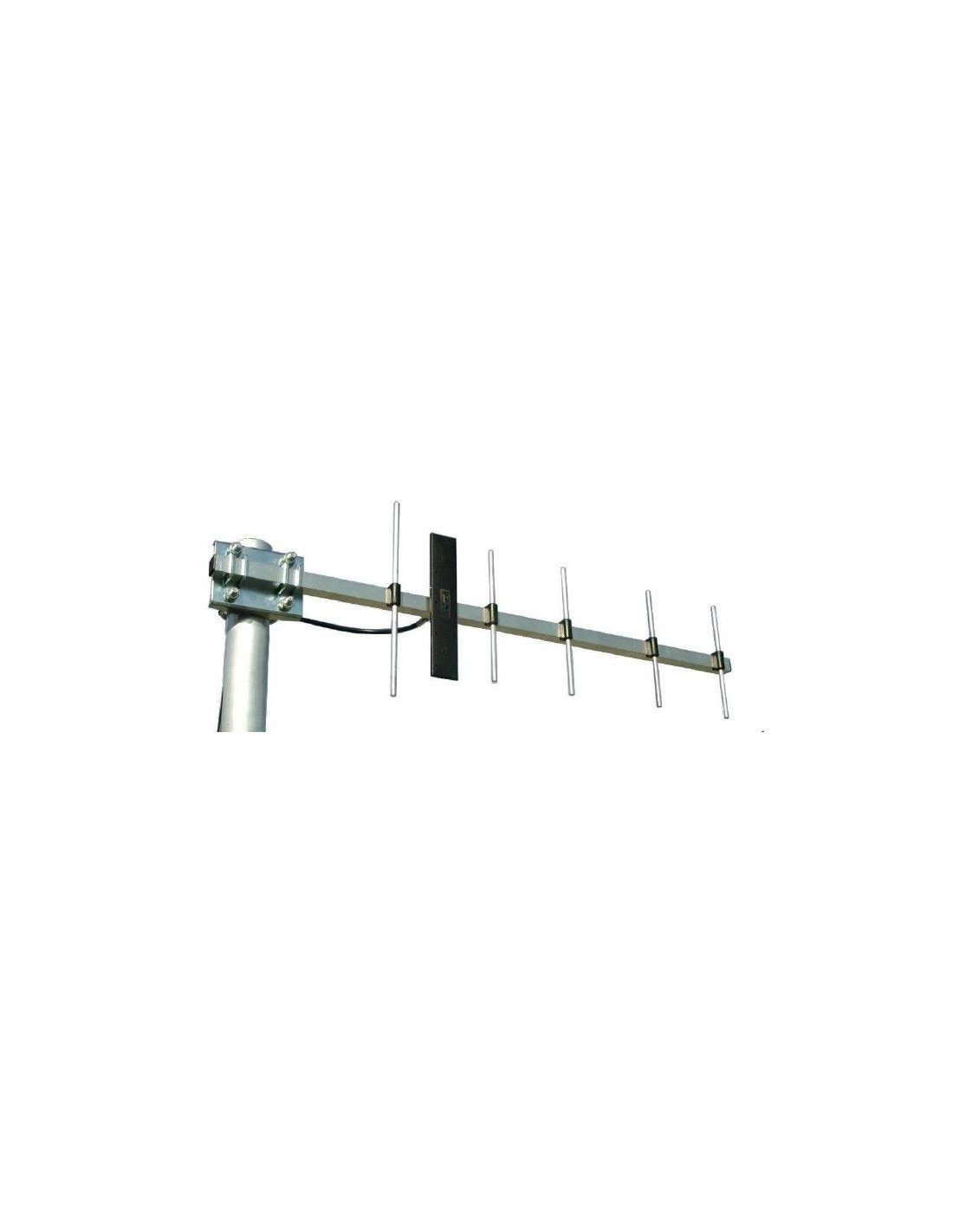

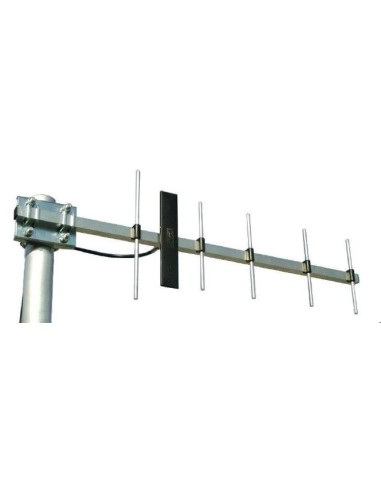

SY-906 11.5dbi 6 ELEMENTS SIRIO
SY-906 11.5dbi 6 ELEMENTS SIRIO
SY-906 11.5dbi 6 ELEMENTS SIRIO
SY-906 11.5dbi 6 ELEMENTS SIRIO

SY-906 11.5dbi 6 ELEMENTS SIRIO

BASE DIRECTIONAL ANTENNA /

6 elements YAGI /

698-960 MHz /

210 x 595 x 60 mm

€43.00 Tax included


VS 002020

Electrical Data:
Type: 6 & 10 elements Yagi
Radiation: Directional
Polarization: Linear vertical
Frequency range: 698-960 MHz No tuning required
Systems: GSM-R, GSM-900, ISM/SIGFOX/LoRa 868MHz
Gain: SY 906: 9.4 dBd – 11.5 dBi
SY 910: 12.9 dBd – 15 dBi
Max Power: 10 W (CW)
Grounding protection: DC-Ground
Connector: FME-male
Mechanical Data:
Materials: Aluminium, Nickel plated brass, PCB
Dimensions (approx):
210 x 595 x 60 mm / 0.69 x 1.95 x 0.2 ft
Weight (approx):
410 gr / 0.9 lb
Mounting type: On-Mast
