GP 901 C SIRIO

Name: GP 901 C SIRIO
Brand: SIRIO
SKU: VS 002015
Price: 66 EUR
Availability: InStock

BASE CELLULAR ANTENNA

870-960 MHz /

1/4 λ + 2×1/2 λ /

800 mm

€66.00 Tax included

Reference VS 002015

Features:

-	Base station antenna, Omnidirectional
-	Mono-band
-	GP 901 C: high-gain
-	Made of anodized aluminium alloy
-	Stainless steel hardware and radials

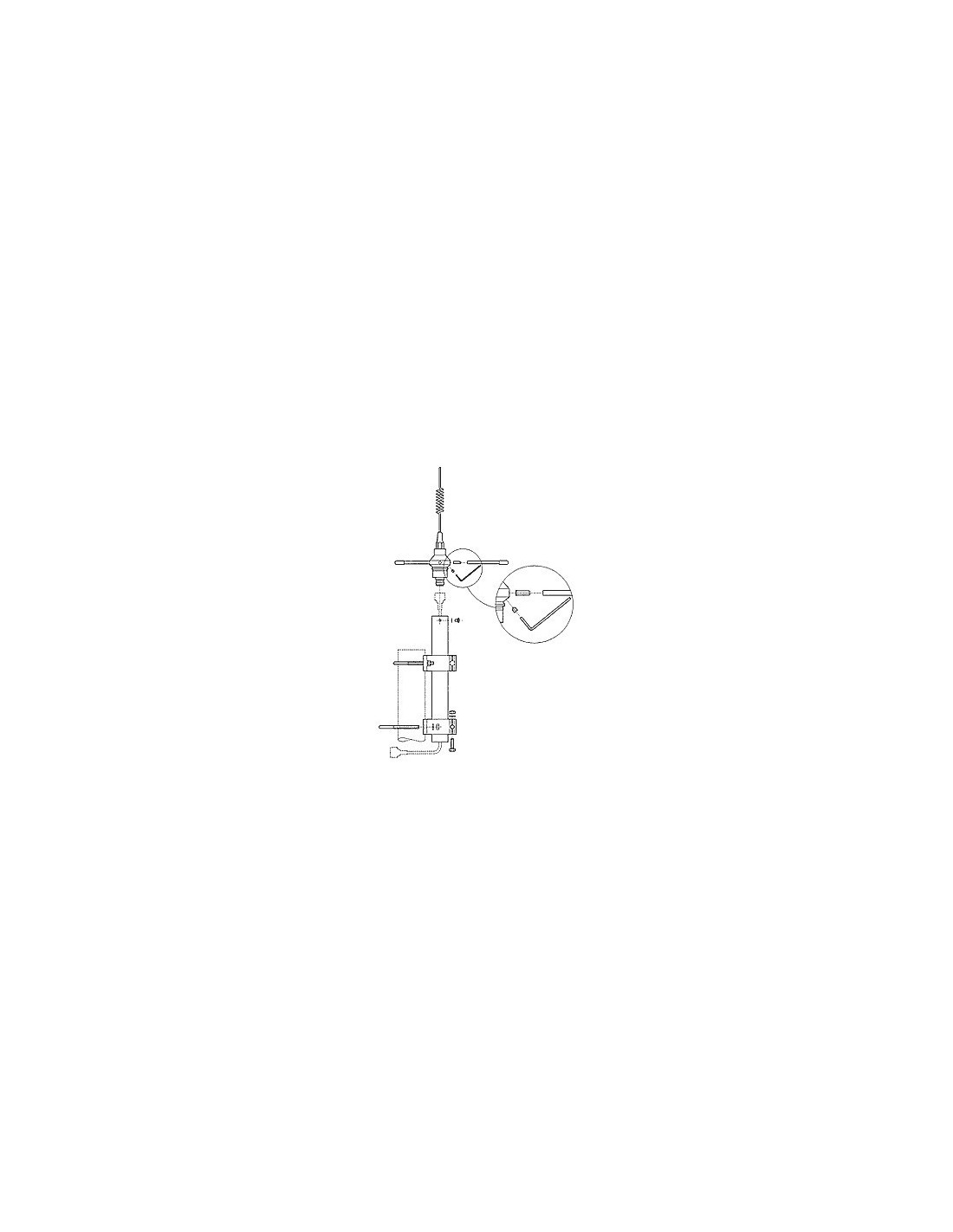

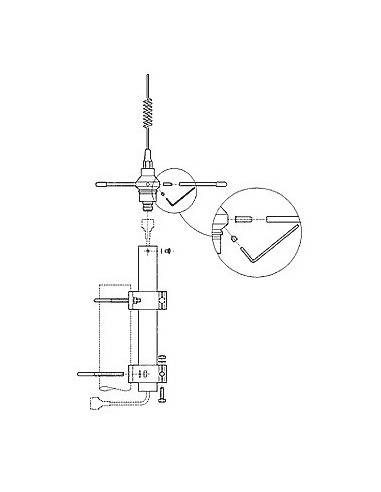

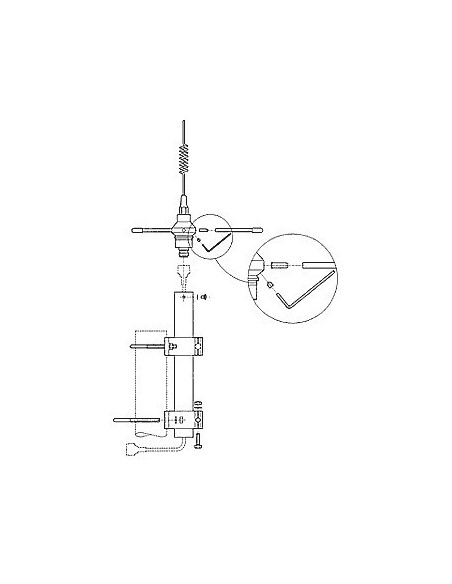

-	Equipped with anodized aluminium bracket for an easy side mast installation
-	17/7 PH stainless steel spring whip
-	for GSM and TACS systems

Electrical Data
-	Type: GP 901 C: 1/4λ + 2x1/2λ colinear
-	Frequency range: 870-960 MHz for GSM and TACS
-	Impedance: 50Ω
-	Radiation (H-plane): 360° omnidirectional
-	Radiation (E-plane): GP 901 C: beamwidth @ -3 dB = 25°
-	Radiation angle: GP 901 C: 6°
-	Polarization: linear vertical
-	Gain: GP 901 C: 5 dBi - 8.15 dBi
-	SWR in bandwidth: GP 901 C: TX-band ≤ 2.0, RX-band ≤ 2.8
-	Max. power (CW) 30°C: 50 Watts

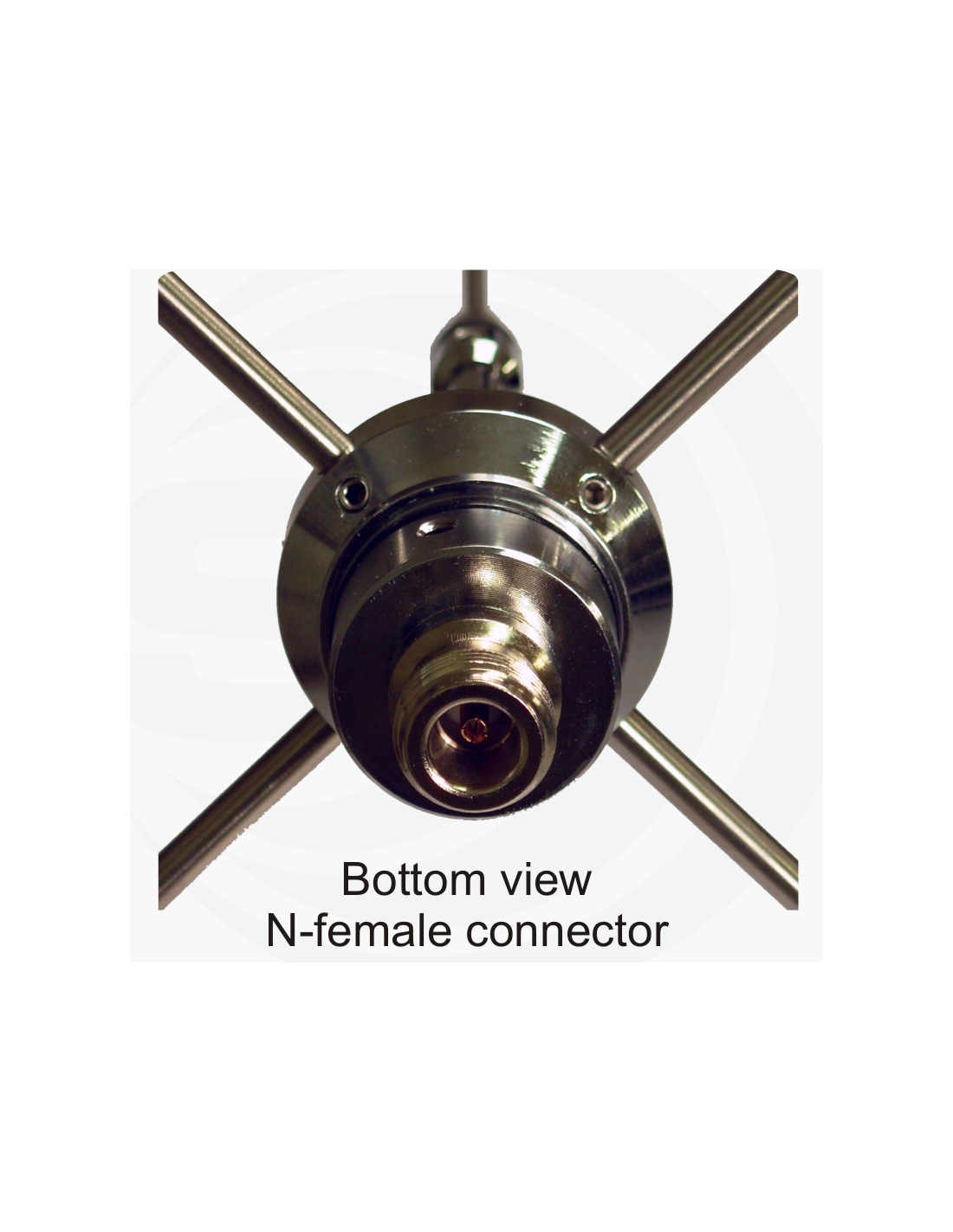

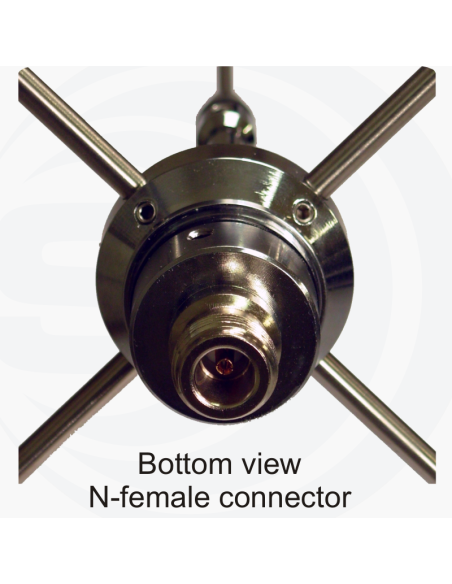

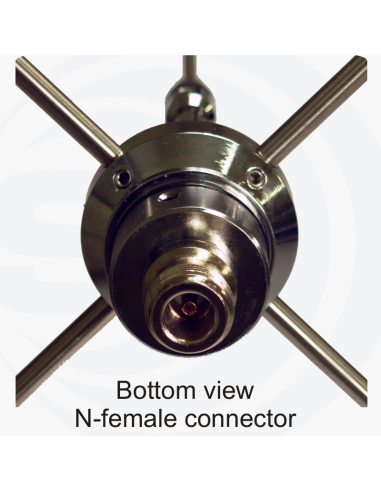

-	Connector: N-female, gold plated central pin

Mechanical Data
-	Materials: Aluminium, Brass, Stainless Steel 17/7 PH
-	Wind load / resistance: GP 901 C: 23 N @ 150 Km/h / 150 Km/h
-	Wind surface: GP 901 C: 0.02 m²
-	Height (approx.): GP 901 C: 800 mm
-	Weight (approx.): GP 901 C: 670 gr
-	Radial length (approx.): 75 mm

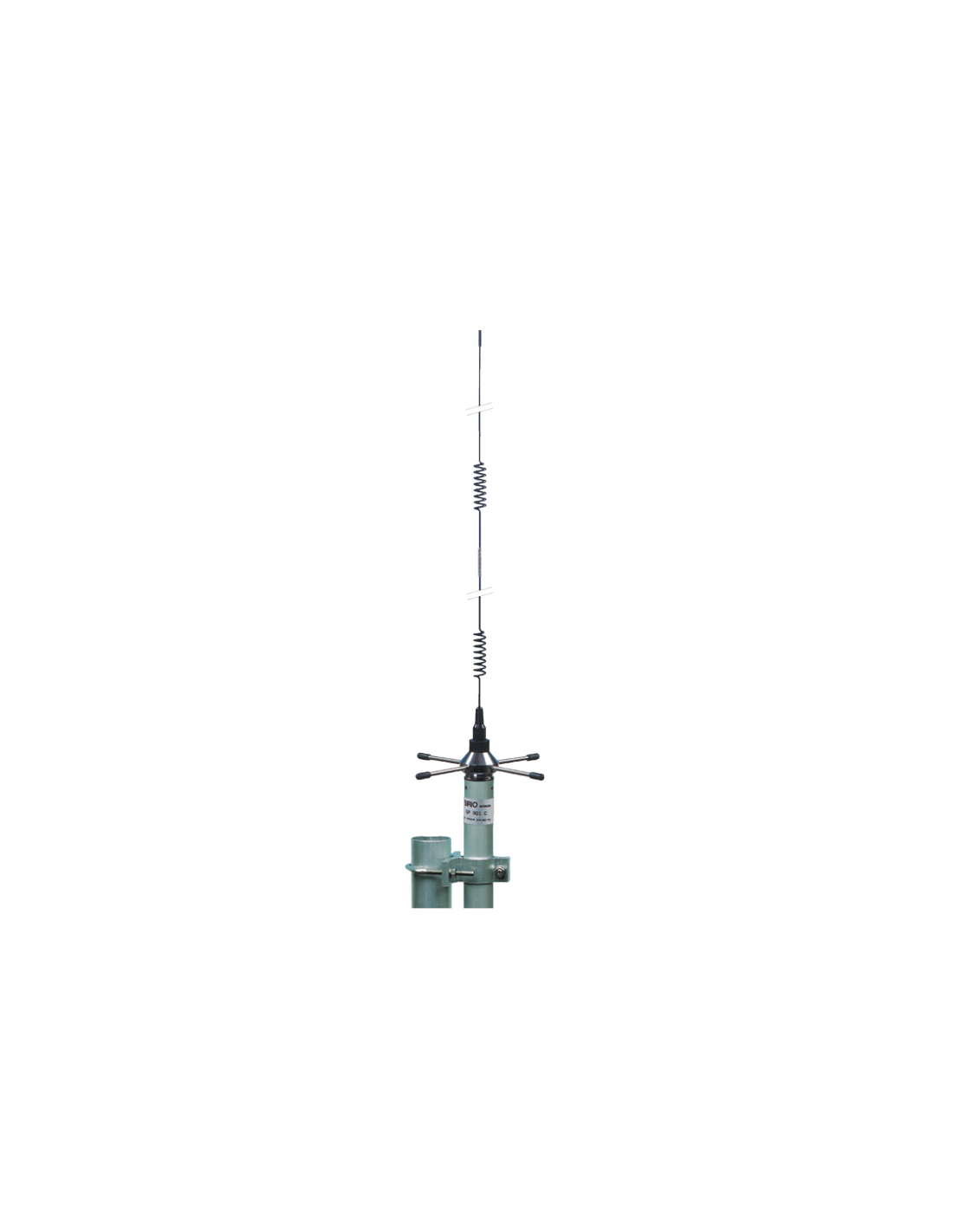

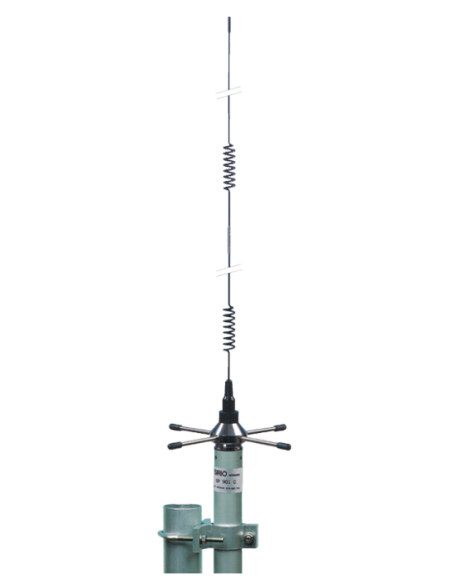

-	Mounting mast: Ø 35-54 mm PHOTO (1) : GP 901 C PHOTO (2) :GP 900 C

PRODUCT MANUAL GP 901 C
