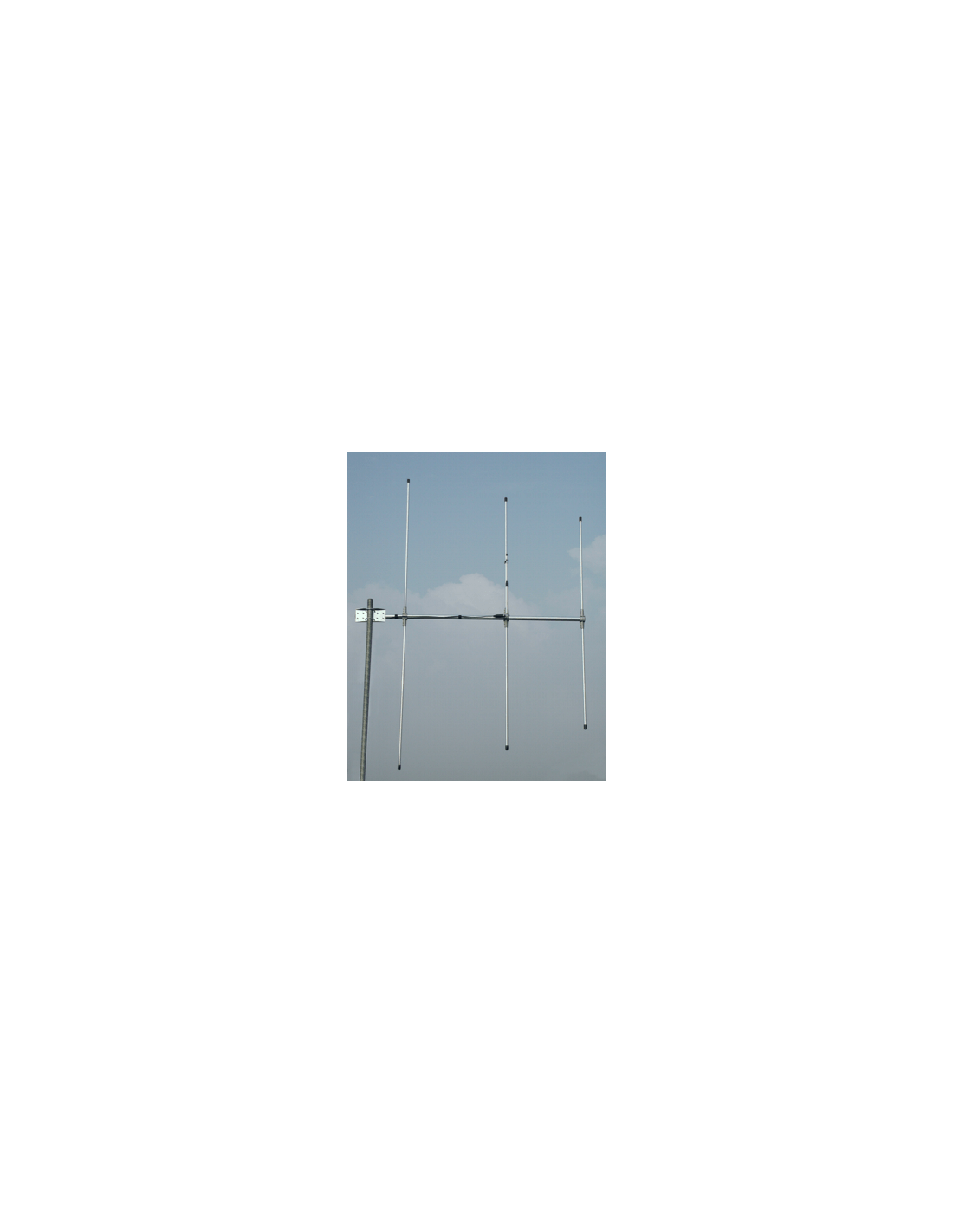

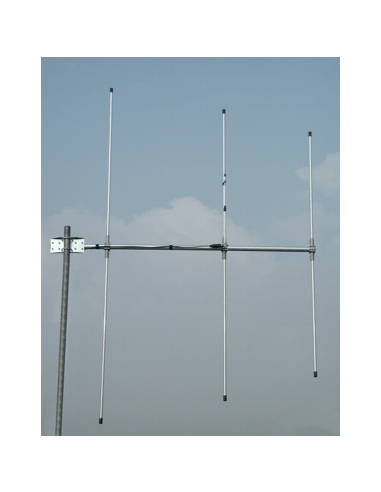

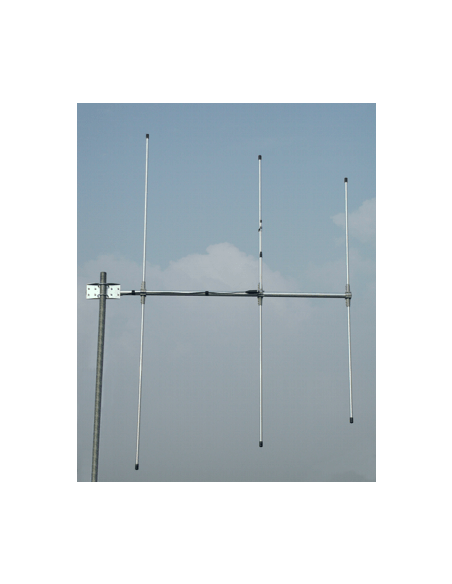

SY 78-3 SIRIO
BASE ANTENNA VHF
3 elements Yagi
78...88 MHz no tuning required /
4.85 dBd - 7 dBi /
1955 x 1600 mm
VS 002050
Electrical Data:
| Type: | 3 elements Yagi |
| Radiation: | Directional |
| Polarization: | Linear Vertical or Horizontal |
| Frequency range: |
|
| Systems: | VHF Low-band (66-88MHz) |
| Gain: | 4.85 dBd – 7 dBi |
| Max Power: | 350 W (CW) |
| Grounding protection: | All metal parts are DC-grounded, the inner conductor is coupled capacitively |
| Connector: | UHF-female (SO-239) |
Mechanical Data:
| Materials: | Aluminium, Chromed brass, Galvanized steel, Zamak |
| Dimensions (approx): |
|
| Weight (approx): |
|

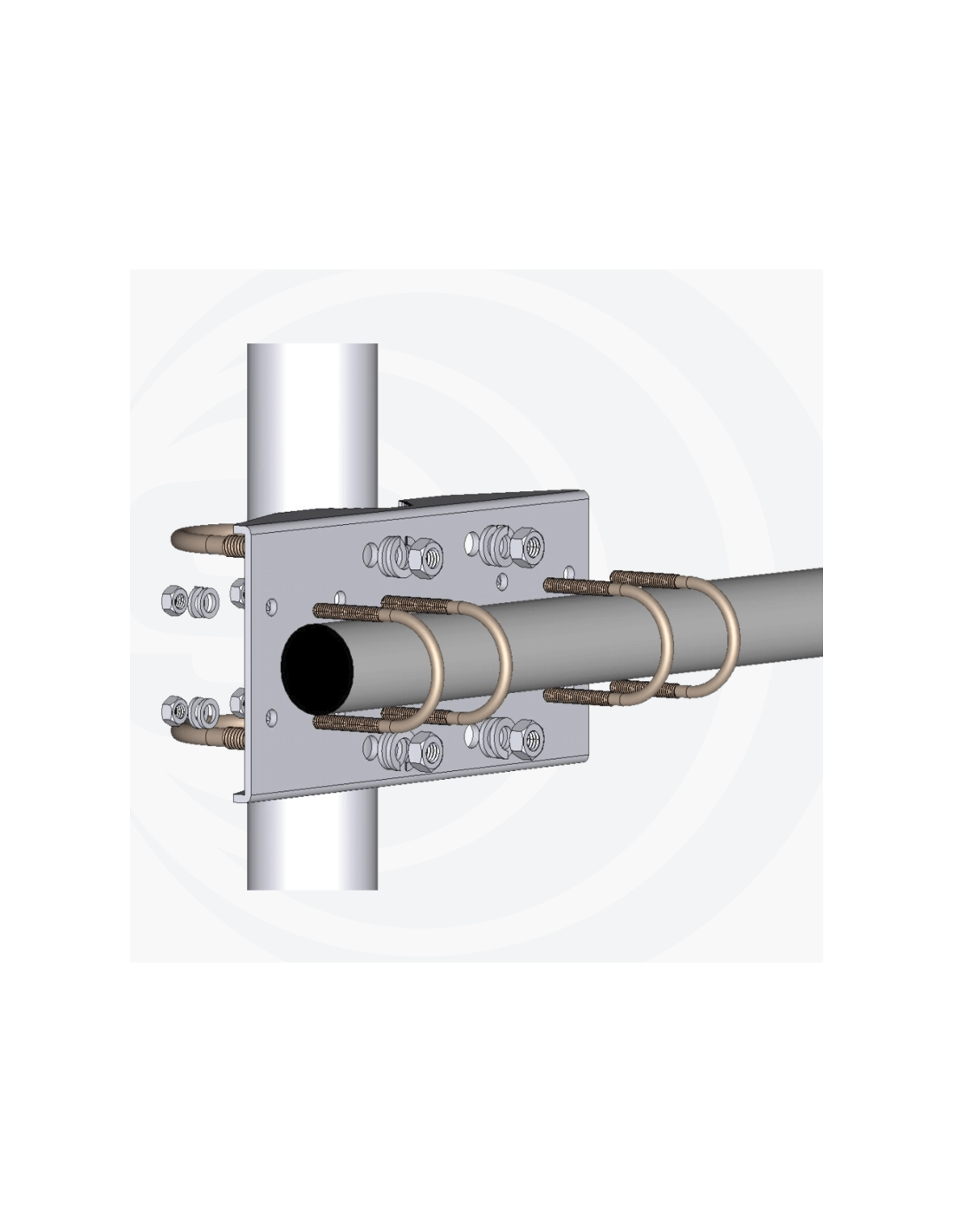

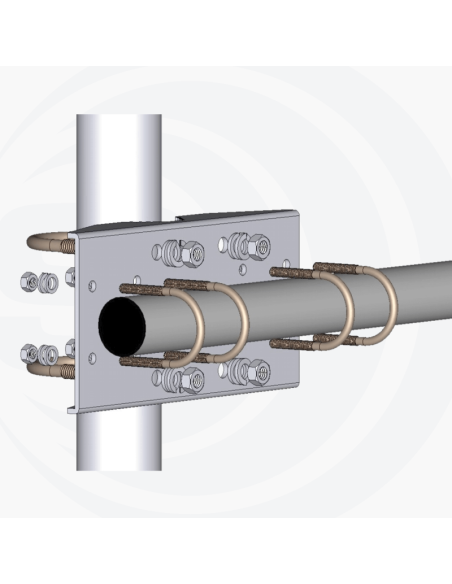

| Mounting type: | On-Mast |
