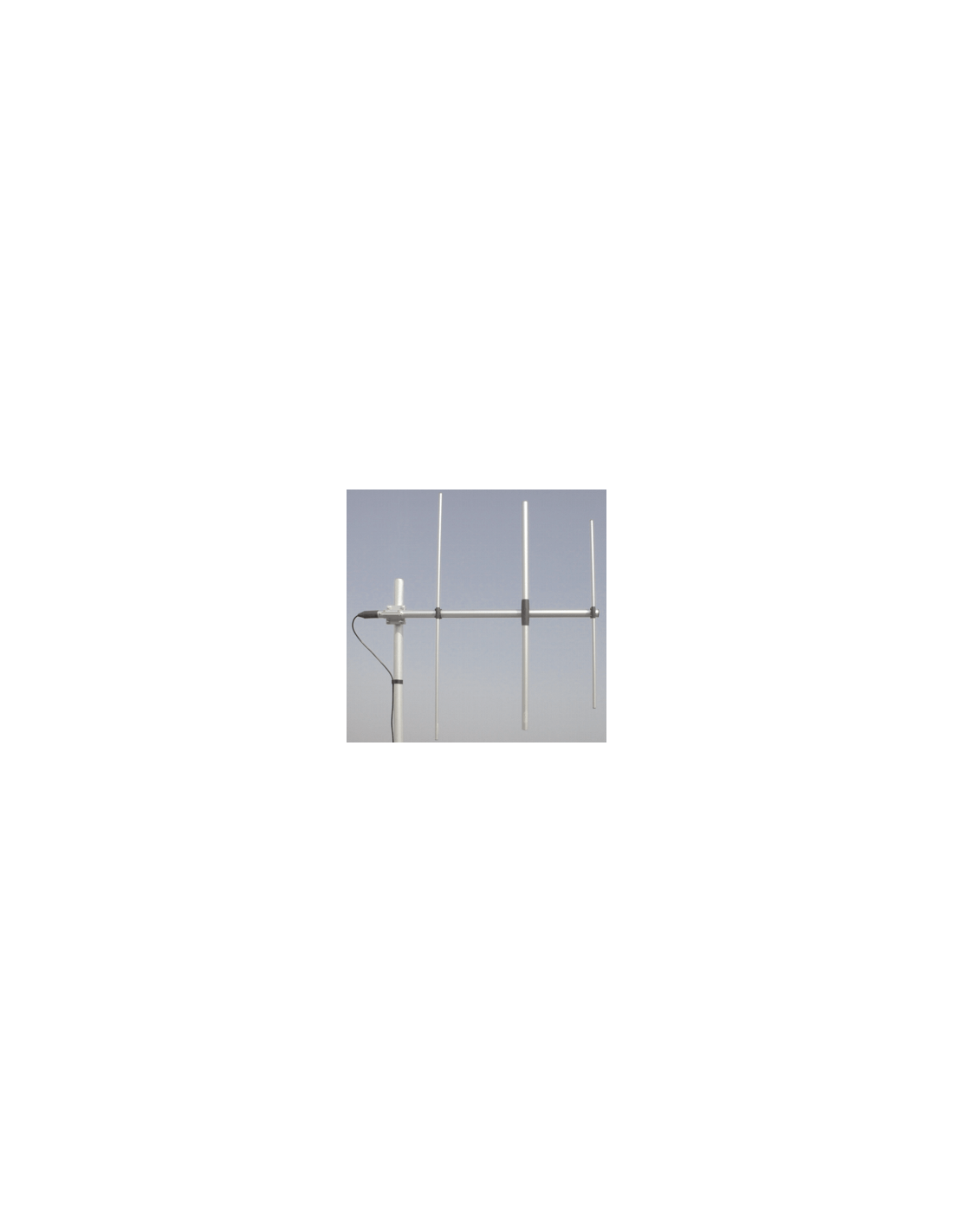

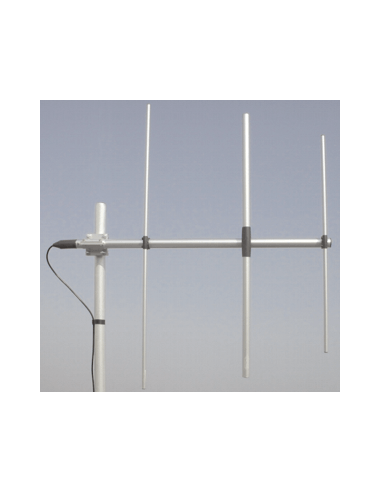

WY 108-3N SIRIO
DIRECTIONAL BASE ANTENNA VHF 3 Elements -
108...137 MHz Airband /4.85 dBd - 7 dBi /
1400 x 910 mm
VS 002875
Electrical Data:
| Type: | 3 elements Yagi |
| Radiation: | Directional |
| Polarization: | Linear Vertical or Horizontal |
| Frequency range: | 108-137 MHz No tuning required |
| Systems: | VHF Airband |
| Gain: | 4.85 dBd - 7 dBi |
| Max Power: | 200 W (CW) |
| Grounding protection: | DC-Ground |
| Connector: | N-female |
Mechanical Data:
| Materials: | Anodized Aluminium, Nickel plated brass, Thermoplastic UV stabilized, EPDM rubber |
| Dimensions (approx): | 1400 x 910 mm / 4.59 x 2.99 ft |
| Weight (approx): | 1860 gr / 4.1 lb |

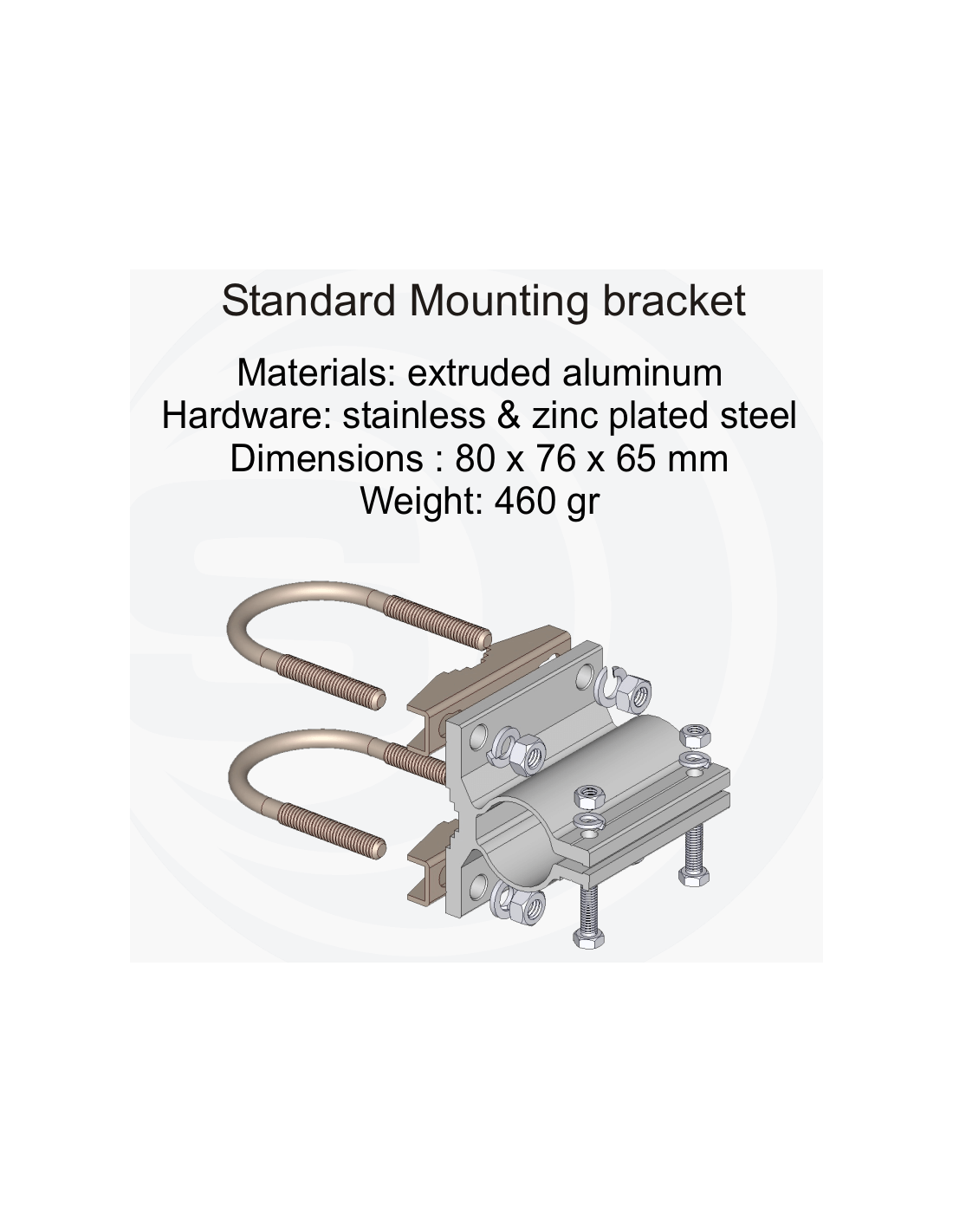

| Mounting type: | On-Mast |
