SY 50-3 SIRIO
BASE ANTENNA VHF

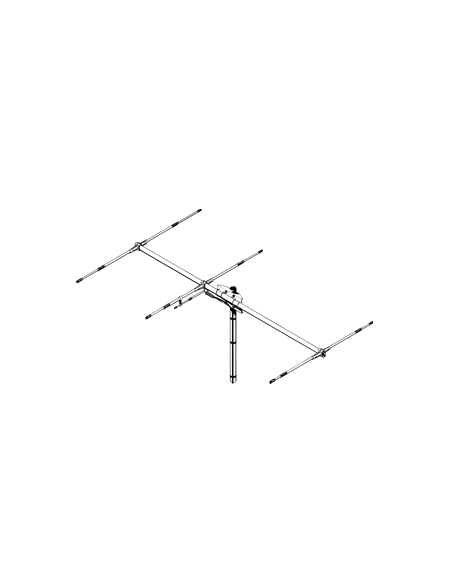

3 elements Yagi
50...54 MHz Tunable /
6.4 dBd - 8.5 dBi /
3000 x 2060 x 100 mm
VS 002765
| Type: | 3 elements Yagi |
| Radiation: | Directional |
| Polarization: | Linear Horizontal |
| Frequency range: | 50 ... 54 MHz Tunable |
| Systems: | 6m-HAM |
| Gain: | 6.4 dBd - 8.5 dBi |
| Max Power: | 600 W (CW) |
| Grounding protection: | All metal parts are DC-grounded, the inner conductor is coupled capacitively |
| Connector: | UHF-female (SO-239) |
Mechanical Data:
| Materials: | Aluminium, Galvanized steel, Zamak |
| Dimensions (approx): | 3000 x 2060 x 100 mm / 9.84 x 6.76 x 0.33 ft |
| Weight (approx): | 4000 gr / 8.82 lb |

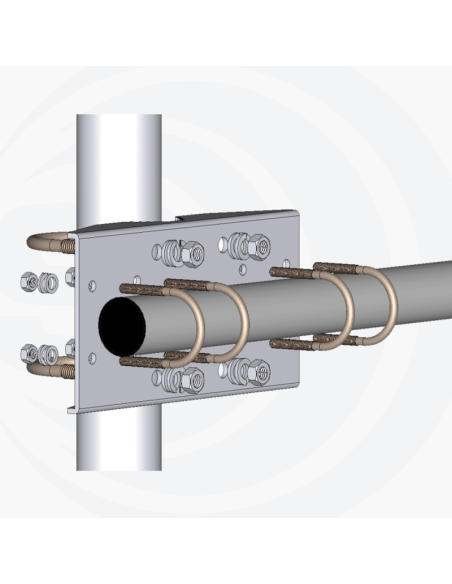

| Mounting type: | On-Mast |
Boom Lenght: 2060 mm
