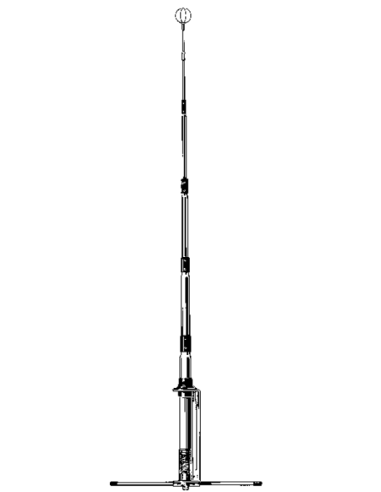

GPE 5/8 ONDE SIRIO

VS 000035

New product

BASE ANTENNA CB

26.4...29.0 MHz Tunable /

5/8 λ /

1.2 dBd, 3.35 dBi  /

5950 mm

More details

85,00 € tax incl.

More info

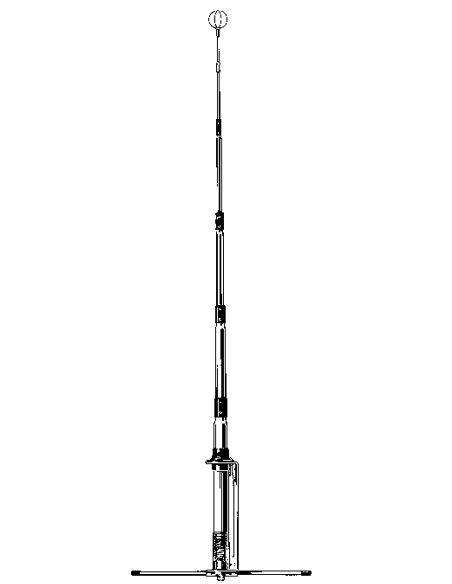

Type: 5/8 λ ground plane
Radiation: Omnidirectional
Polarization: Linear vertical

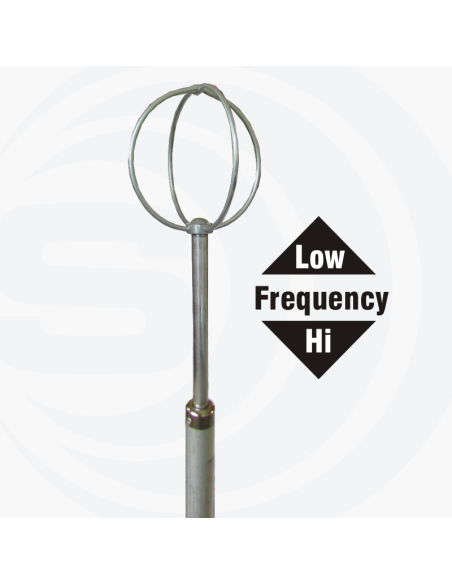

Frequency range: 26.4 ... 29.0 MHz Tunable
Systems: 10m-HAM
Gain: GPE 5/8: 1.2 dBd, 3.35 dBi
GPS 1/2: 0 dBd, 2.15 dBi
Bandwidth: ≥ 1.6MHz @ SWR ≤ 2
Max Power: 250 Watts (CW) continuous
750 Watts (CW) short time
Grounding protection: DC-Ground
Connector: UHF-female (SO-239)
Mechanical Data:

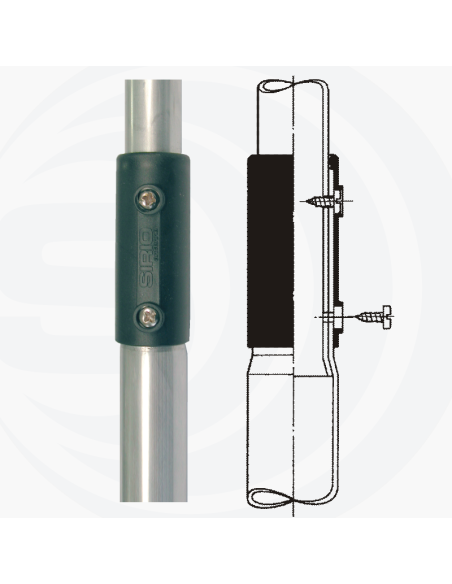

Materials: Aluminium, Copper, Galvanized steel, Nylon
Height (approx): 5950 mm / 19.52 ft
Weight (approx):
2500 gr / 5.51 lb
Mounting type: On-Mast

Download

PRODUCT MANUAL GPE 5/8

Download (1.51M)
