2016 SIRIO

Reference: VS 000565

Condition: New product

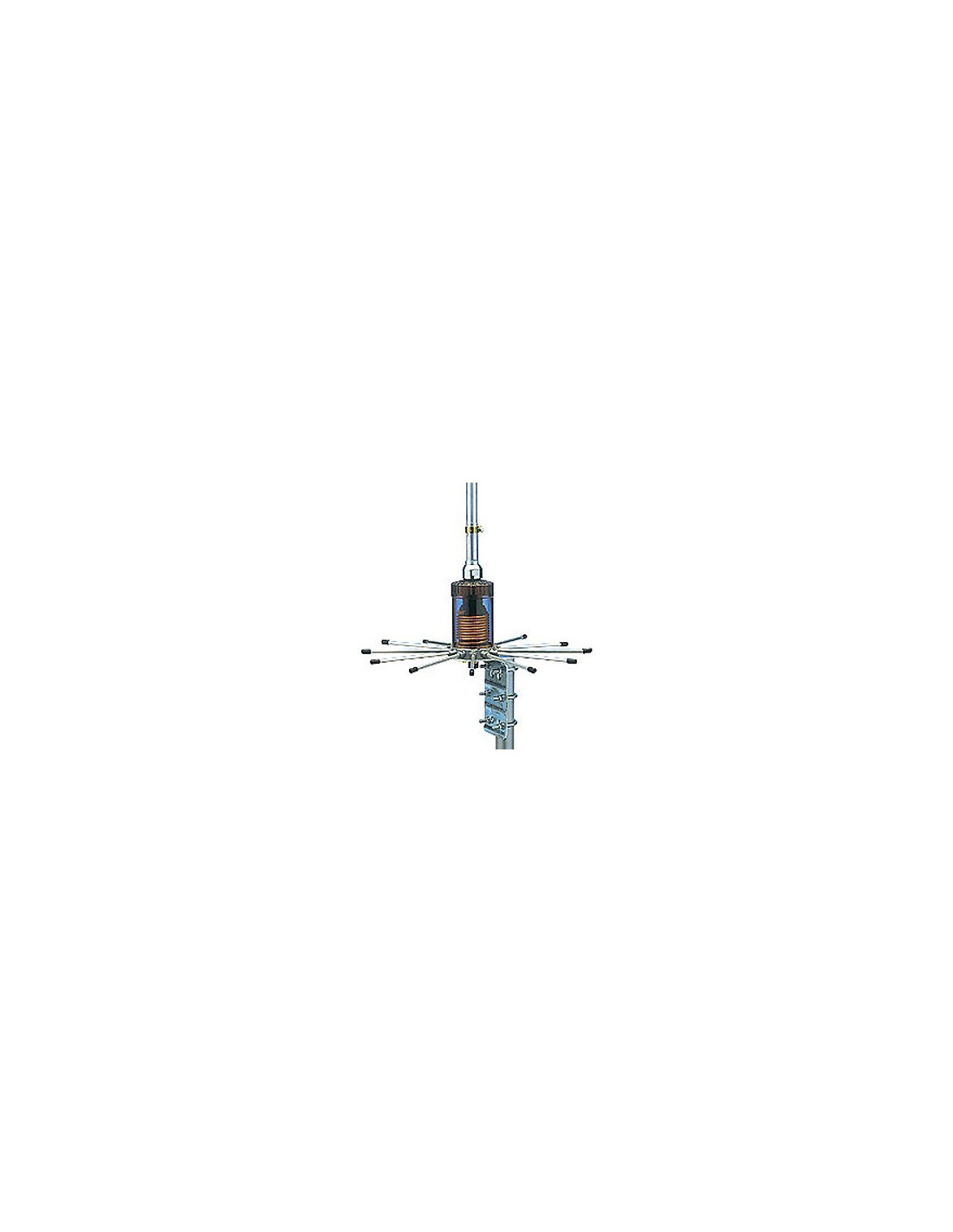

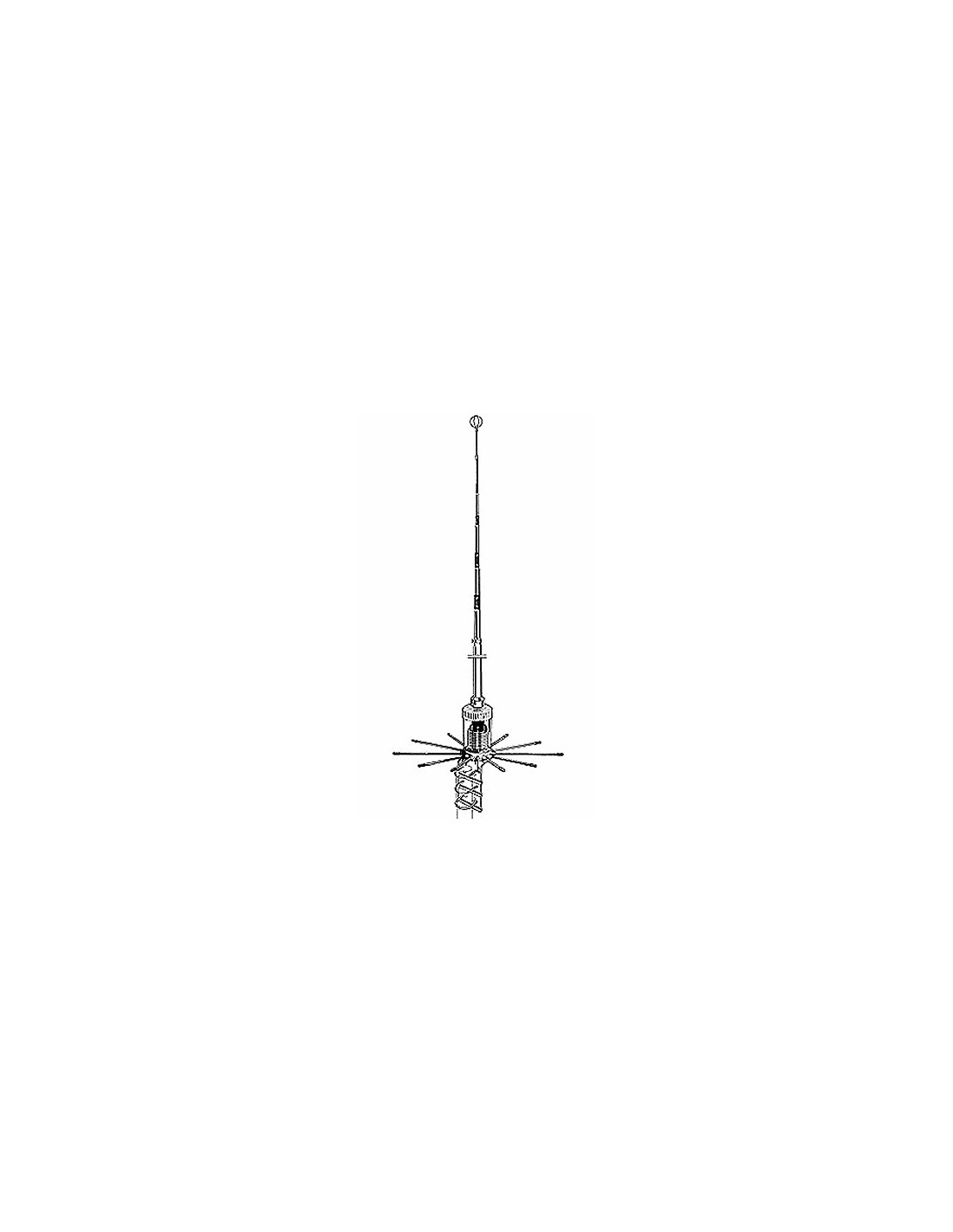

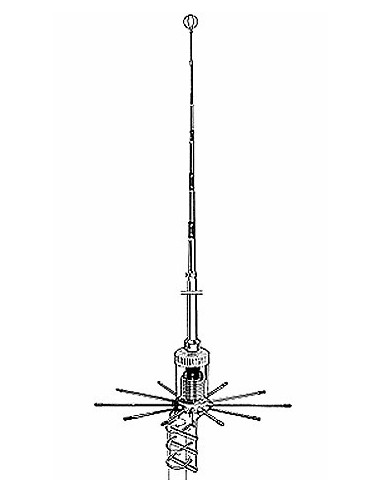

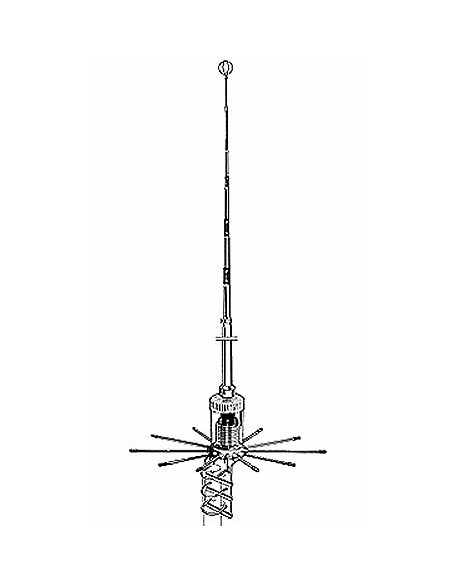

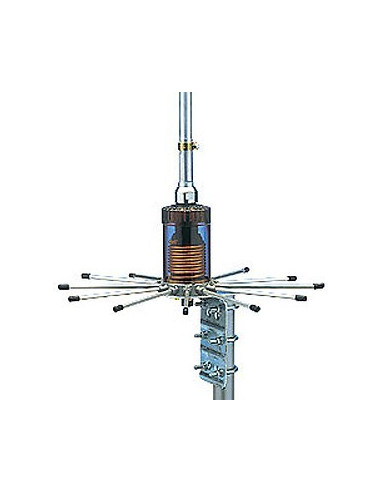

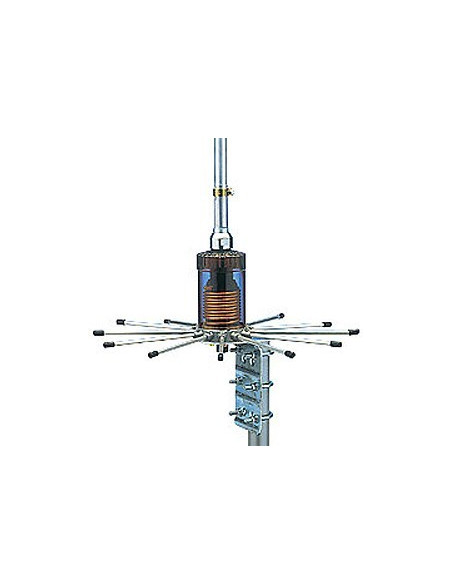

BASE ANTENNA CB

26.4...28.2 MHz Tunable /

5/8 λ /

1.3 dBd, 3.45 dBi /

6100 mm

- 16 Radials -

More details

Type:	5/8 λ ground plane - 16 Radials
Radiation:	Omnidirectional
Polarization:	Linear vertical
Frequency range:	26.4 ... 28.2 MHz Tunable
Systems:	10m-HAM
Gain:	1.3 dBd, 3.45 dBi
Bandwidth:	≥ 2.1MHz @ SWR ≤ 2
Max Power:	1000 Watts (CW) continuous 3000 Watts (CW) short time
Grounding protection:	DC-Ground
Connector:	UHF-female (SO-239)

Mechanical Data:

Materials:	Aluminium, Copper, Brass, Galvanized steel, Nylon
Height (approx):	6100 mm / 20.01 ft
Weight (approx):	5300 gr / 11.68 lb
Mounting type:	On-Mast
