SD 78 SIRIO

VS 002135

New product

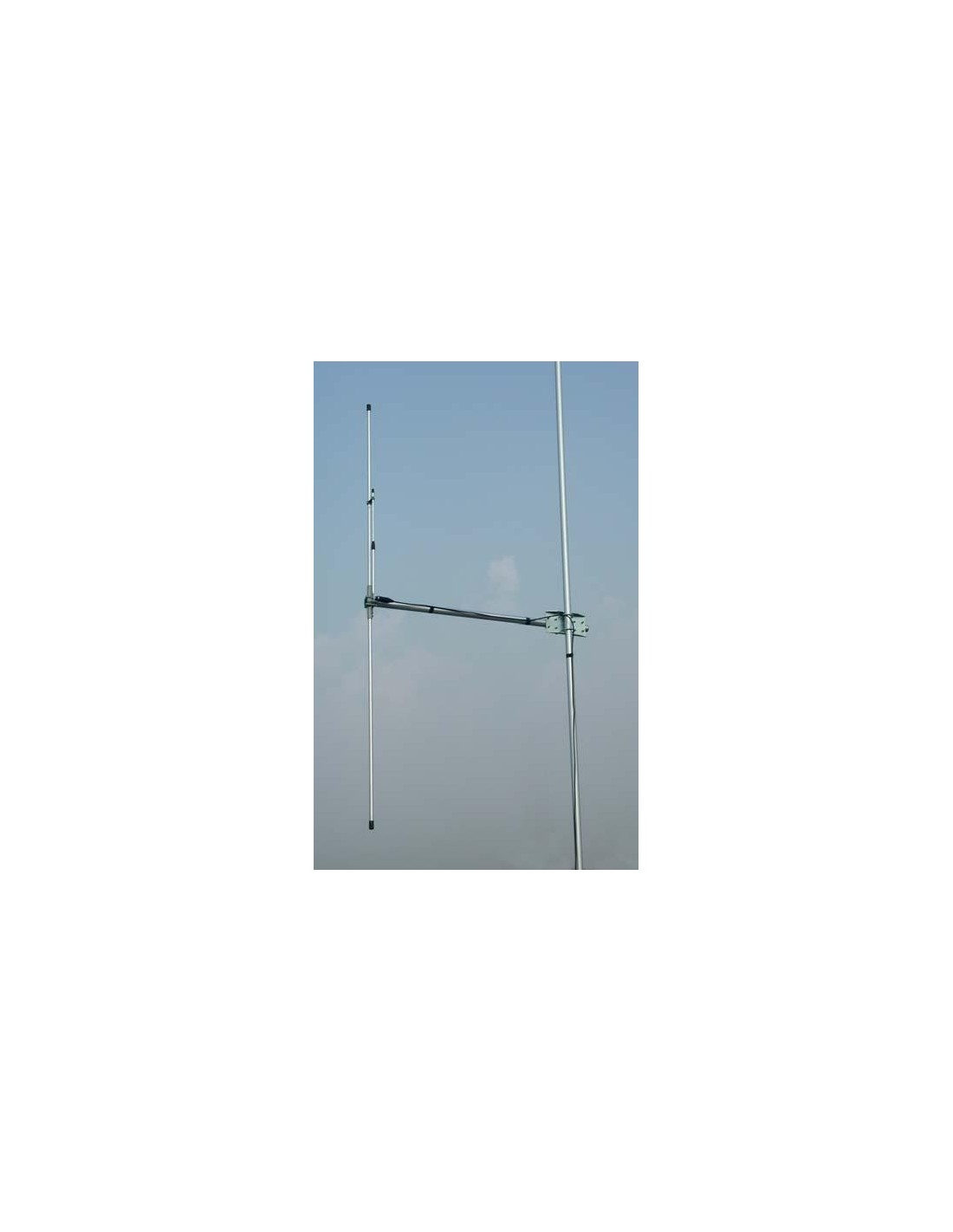

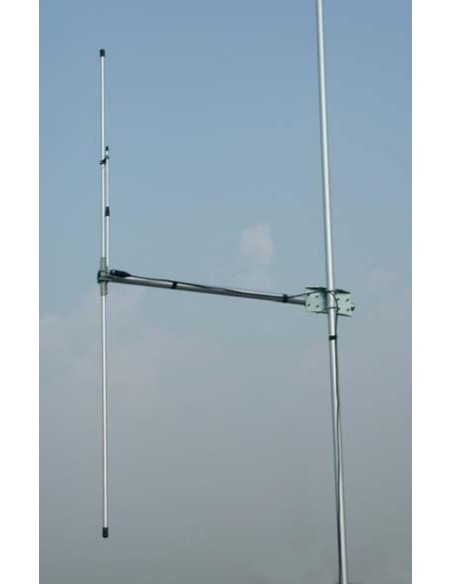

BASE ANTENNA VHF

78...88 MHz /

1/2 λ /

1.85 dBd - 4 dBi /

1675 x 1065 mm

More details

78,00 € tax incl.

More info

Type: 1/2 λ
Radiation: Directional
Polarization: Linear Vertical or Horizontal
Frequency range:
78-88 MHz No tuning required
Systems: VHF Low-band (66-88MHz)
Gain: 1.85 dBd - 4 dBi (vertical polarization only)
Max Power: 350 W (CW)
Grounding protection: All metal parts are DC-grounded, the inner conductor is coupled capacitively
Connector: UHF-female (SO-239)
Mechanical Data:
Materials: Aluminium, Chromed brass, Galvanized steel, Zamak
Dimensions (approx):
1675 x 1065 mm / 5.5 x 3.49 ft
Weight (approx):
1980 gr / 4.37 lb

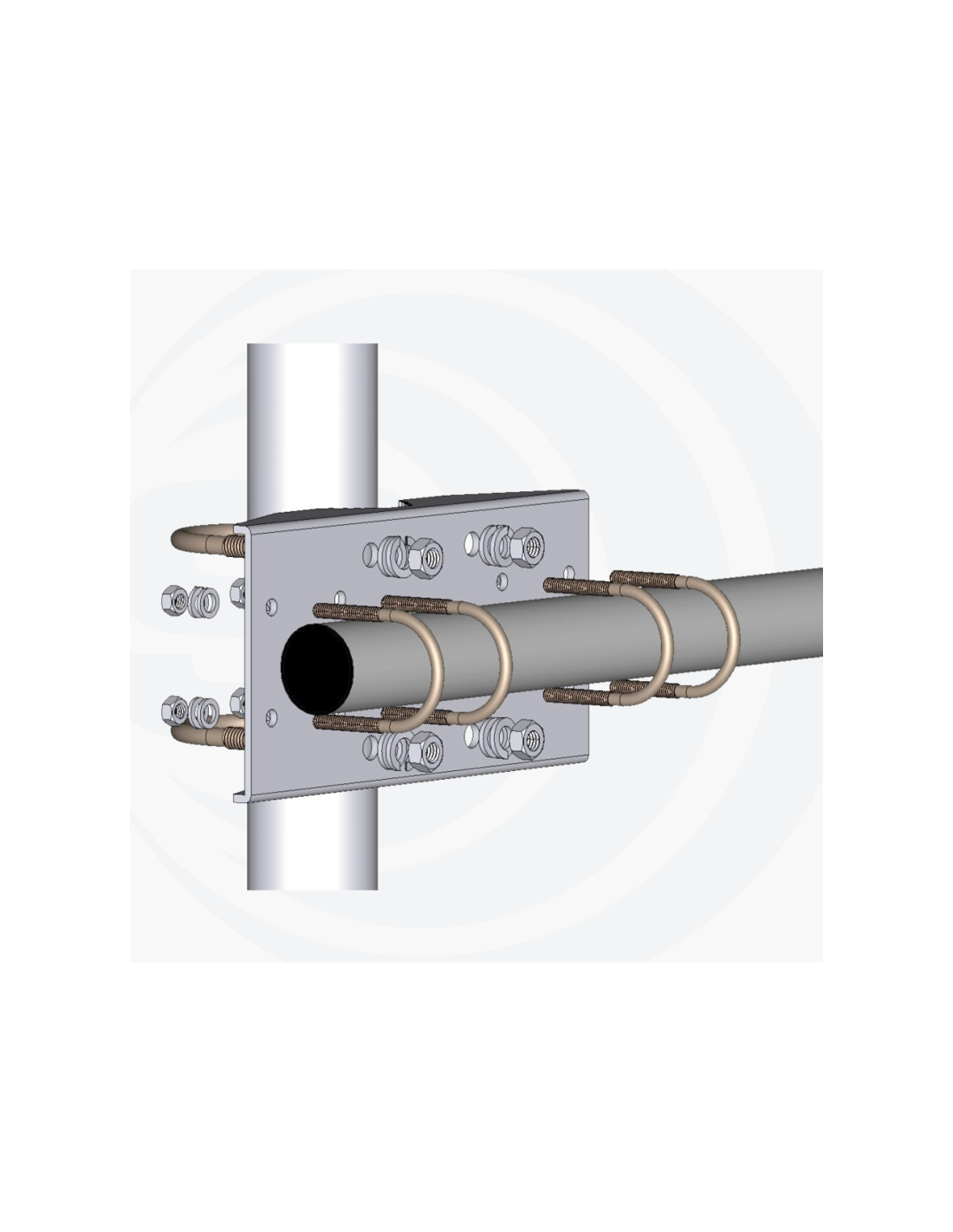

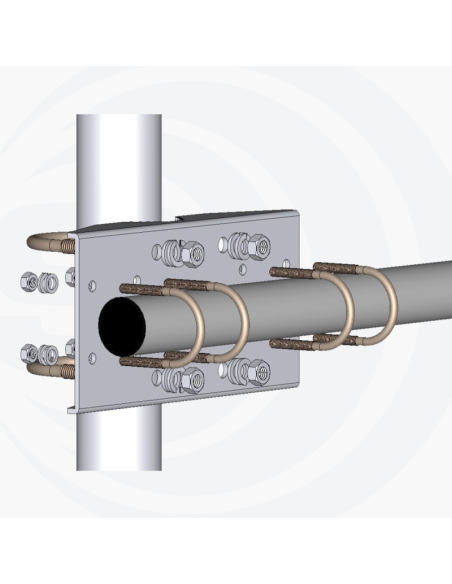

Mounting type: On-Mast

Download

PRODUCT MANUAL SD78

Download (1.58M)
